  5. MASTER B35 hőlégfúvó (gázolajos 10kW)
MASTER B35 hőlégfúvó (gázolajos 10kW) B35 MASTER B35 hőlégfúvó (gázolajos 10kW) B35 MASTER B35 hőlégfúvó (gázolajos 10kW) B35 MASTER B35 hőlégfúvó (gázolajos 10kW) B35 MASTER B35 hőlégfúvó (gázolajos 10kW) B35

MASTER B35 hőlégfúvó (gázolajos 10kW)

Cikkszám
B35
Nettó listaár
118 031 Ft / db
Bruttó listaár
149 900 Ft / db
Raktáron
Nettó ár:
118 032 Ft
Bruttó ár:
149 901 Ft
db

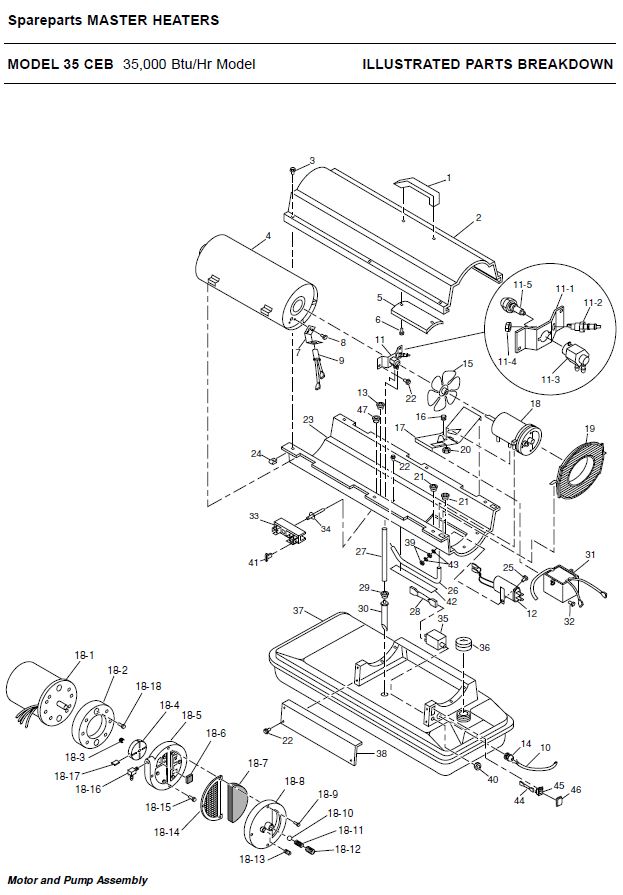

Szám Cikkszám Cikknév
1 4103.784 Handle
2 4103.842 Upper Shell
3 4109.590 Screw/Lockwasher, 1/2"
4 4104.060 Combustion Chamber
5 4100.671 Heat Shield
6 4108.510 Screw, #10-16 x 3/4"
7 4103.537 Photocell Bracket
8 4103.529 Screw, #6-32 x 3/8"
9 4103.552 Photocell Assembly
10 S/R Power Cord
11 ** Burner Strap Assembly
11-1 4103.648 Bracket
11-2 4109.526 Spark Plug
11-3 4109.542 Nozzle Adapter
11-4 4109.518 Nut, 14mm
11-5 4100.648 Nozzle
12 4105.287 Power Line RFI Filter
13 4101.151 Bushing
14 4150.528 Strain Relief Bushing
15 4103.651 Fan
16 4150.553 Rubber Bumper
17 4109.560 Motor Bracket
18 ** Motor and Pump Assembly
18-1 N/A Motor (230V/50Hz)
18-2 4101.532 Pump Body
18-3 4108.635 Insert
18-4 4103.441 Rotor
18-5 4109.724 End Pump Cover
18-6 4109.716 Lint Filter
18-7 4109.690 Intake Filter
18-8 4109.674 End Cover
18-9 4108.528 Screw, #10-32 x 1"
18-10 4108.379 Steel Ball (1/4" Dia.)
18-11 4102.141 Pressure Relief Spring
18-12 4102.133 Adjusting Screw
18-13 4102.125 Plug
18-14 4109.708 Output Filter
18-15 4108.536 Screw, #10-32 x 1 1/8"
18-16 4101.156 Elbow, 90° (Barb Fitting)
18-17 4101.666 Balde
18-18 4108.590 Screw, #10-32 x 3/4"
19 4103.685 Fan Guard
20 4108.486 Hex locknut
21 4101.152 Bushing (wires)
22 4110.124 Screw/Lockwasher, 1/2"
23 4105.195 Lower Shell
24 4104.170 Clip Nut
25 4109.580 Screw, #10-32 x 3/4"
26 4109.633 Rubber Airline
27 4109.567 Fuel Line
28 S/R Wire Assembly (red)
29 4100.541 Rubber Bushing
30 4109.575 Fuel Filter Assembly
31 4106.095 Electronic Ignitor
32 4108.510 Screw, #10-16 x 3/4"
33 4103.884 Terminal Board
34 N/A Rivet
35 4104.196 Flame-Out Control
36 4103.891 Fuel Tank Cap
37 4105.294 Fuel Tank
38 4104.175 Side Cover
39 4100.673 Nut, #10-32
40 4109.592 Hex Nut
41 N/A Terminal Board Tab Cap
42 S/R Vinyl Foam Gasket
43 4100.527 Lock Washer, #10
NotShown 4105.292 Filler Neck Screen
NotShown 4110.138 Tradename Decal
NotShown S/R Combustion Chamber Ground Wire
NotShown 4110.150 Decal Package

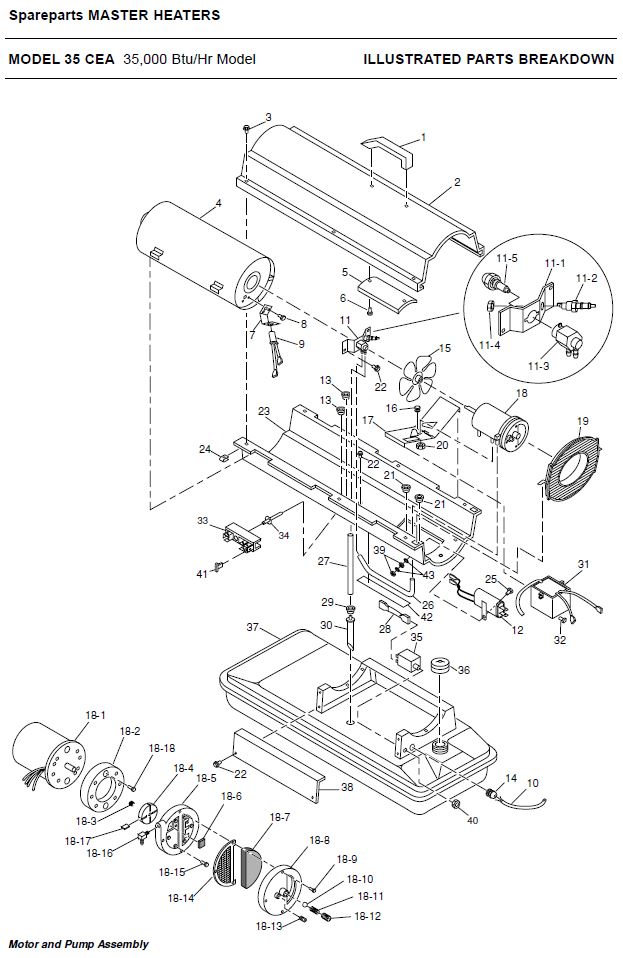

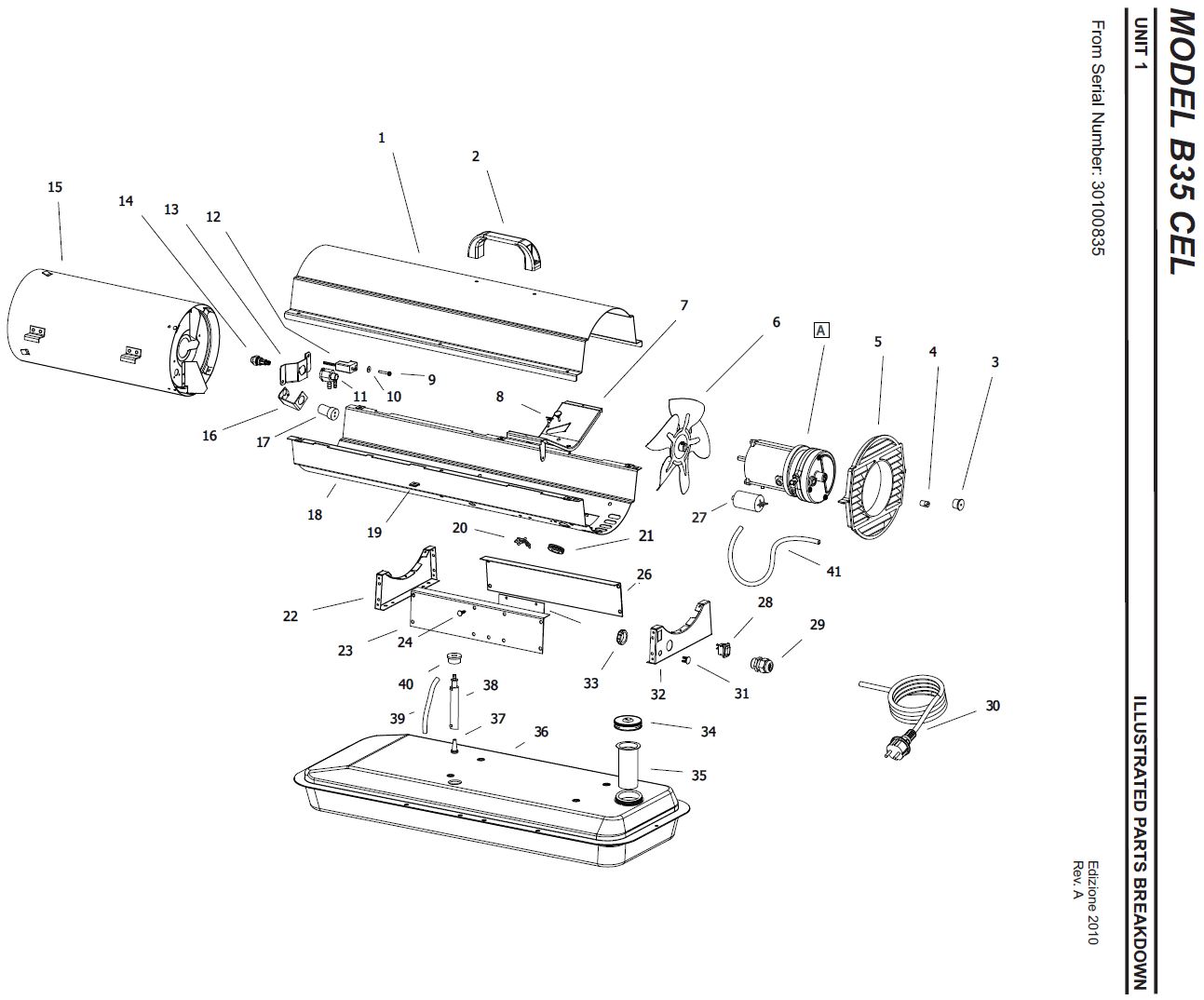

Szám Cikkszám Cikknév
1 4103.784 Handle
2 4103.842 Upper Shell
3 4109.590 Screw/Lockwasher, 1/2"
4 4104.060 Combustion Chamber
5 4100.671 Heat Shield
6 4108.510 Screw, #10-16 x 3/4"
7 4103.537 Photocell Bracket
8 4103.529 Screw, #6-32 x 3/8"
9 4103.552 Photocell Assembly
10 S/R Power Cord
11 ** Burner Strap Assembly
11-1 4110.092 Bracket
11-2 4109.526 Spark Plug
11-3 4109.542 Nozzle Adapter
11-4 4109.518 Nut, 14mm
11-5 4100.648 Nozzle
12 4105.287 Power Line RFI Filter
13 4101.151 Bushing
14 4150.528 Strain Relief Bushing
15 4103.651 Fan
16 4150.553 Rubber Bumper
17 4109.560 Motor Bracket
18 ** Motor and Pump Assembly
18-1 4106.098 Motor (230V/50Hz)
18-2 4101.532 Pump Body
18-3 4108.635 Insert
18-4 4103.441 Rotor
18-5 4109.724 End Pump Cover
18-6 4109.716 Lint Filter
18-7 4109.690 Intake Filter
18-8 4109.674 End Cover
18-9 4108.528 Screw, #10-32 x 1"
18-10 4108.379 Steel Ball (1/4" Dia.)
18-11 4102.141 Pressure Relief Spring
18-12 4102.133 Adjusting Screw
18-13 4102.125 Plug
18-14 4109.708 Output Filter
18-15 4108.536 Screw, #10-32 x 1 1/8"
18-16 4101.156 Elbow, 90° (Barb Fitting)
18-17 4101.666 Blade
18-18 4108.590 Screw, #10-32 x 3/4"
19 4103.685 Fan Guard
20 4108.486 Hex locknut
21 4101.152 Bushing (wires)
22 4110.124 Screw/Lockwasher, 1/2"
23 4105.195 Lower Shell
24 4104.170 Clip Nut
25 4109.580 Screw, #10-32 x 3/4"
26 4109.633 Rubber Airline
27 4109.567 Fuel Line
28 S/R Wire Assembly (red)
29 4100.541 Rubber Bushing
30 4109.575 Fuel Filter Assembly
31 4106.095 Electronic Ignitor
32 4108.510 Screw, #10-16 x 3/4"
33 4106.110 Terminal Board
34 N/A Rivet
35 4104.196 Flame-Out Control
36 4103.891 Fuel Tank Cap
37 4105.294 Fuel Tank
38 4104.175 Side Cover
39 4100.673 Nut, #10-32
40 4109.592 Hex Nut
41 N/A Terminal Board Tab Cap
42 S/R Vinyl Foam Gasket /td>
43 4100.527 Lock Washer, #10
44 S/R Wire Assembly (black)
45 4106.179 ON/OFF Switch
46 4104.336 Switch Cover
47 N/A Bushing
NotShown 4105.292 Filler Neck Screen
NotShown 4110.138 Tradename Decal
NotShown S/R Combustion Chamber Ground Wire
NotShown 4110.150 Decal Package

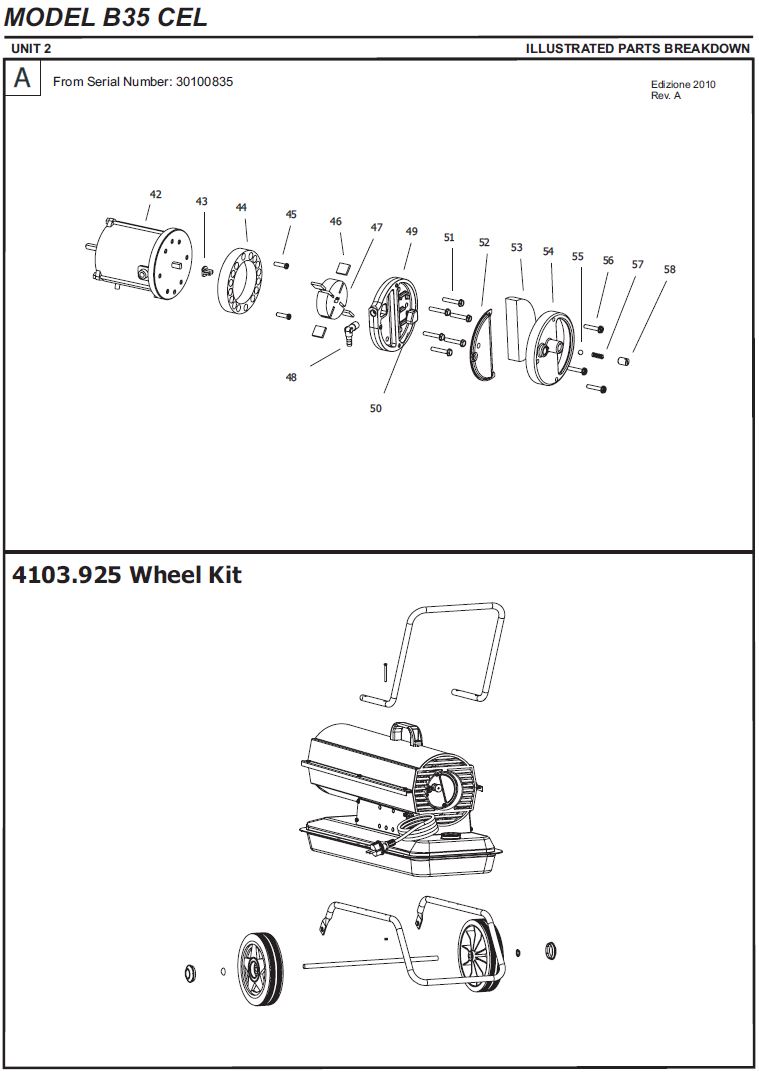

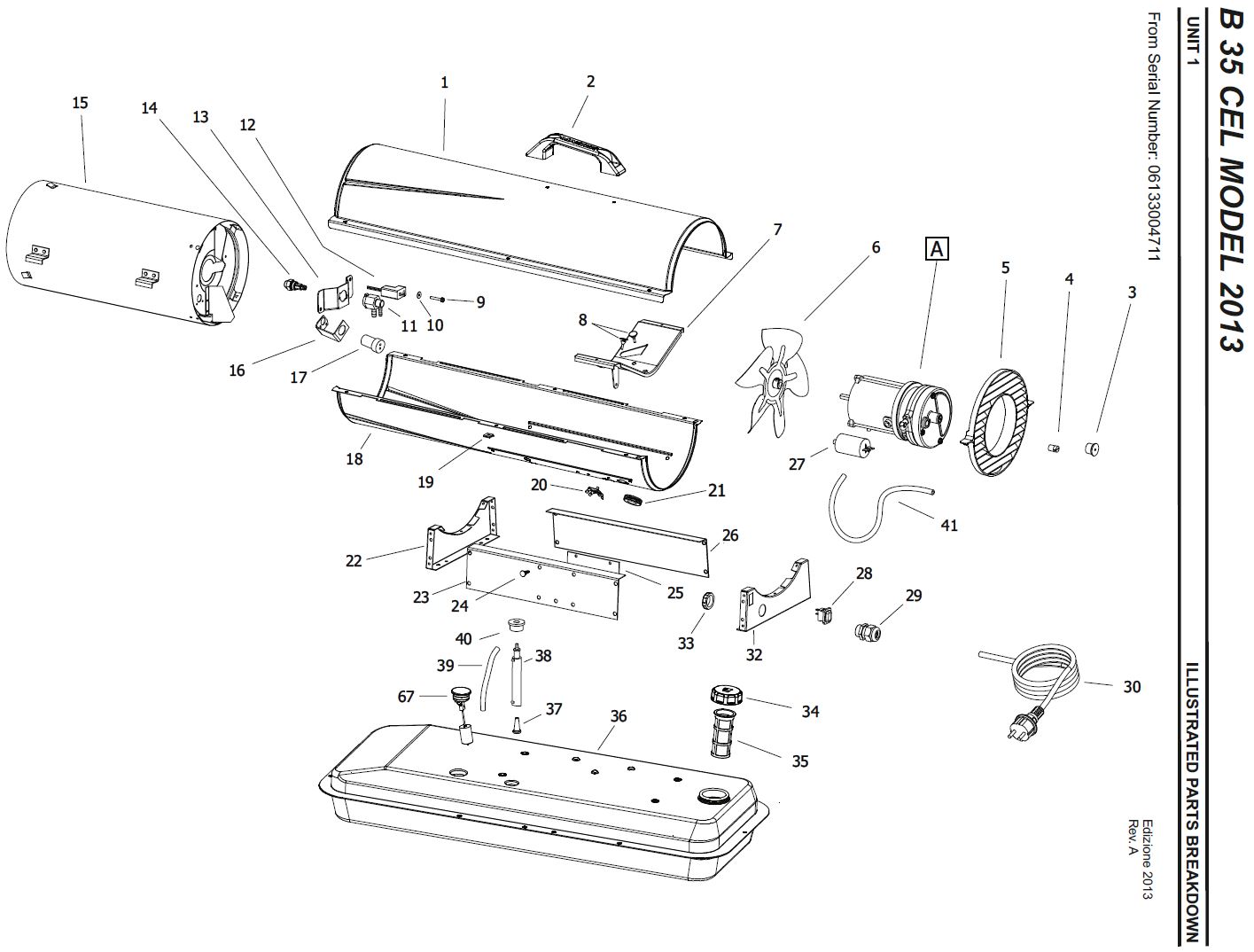

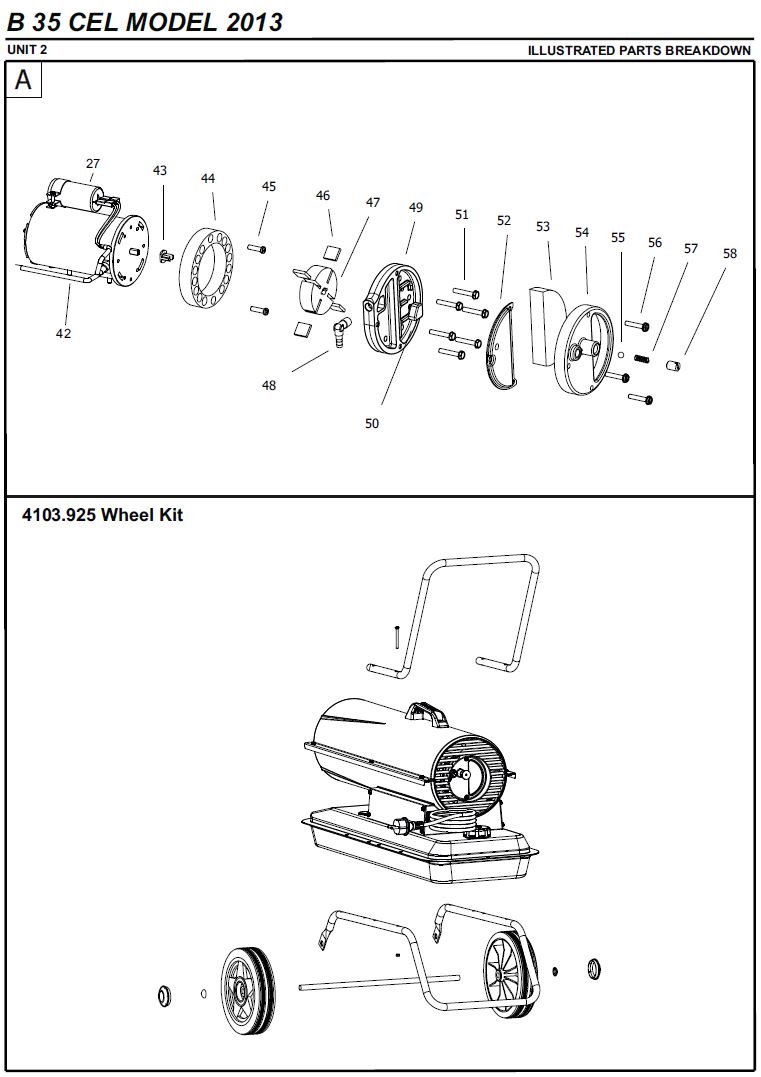

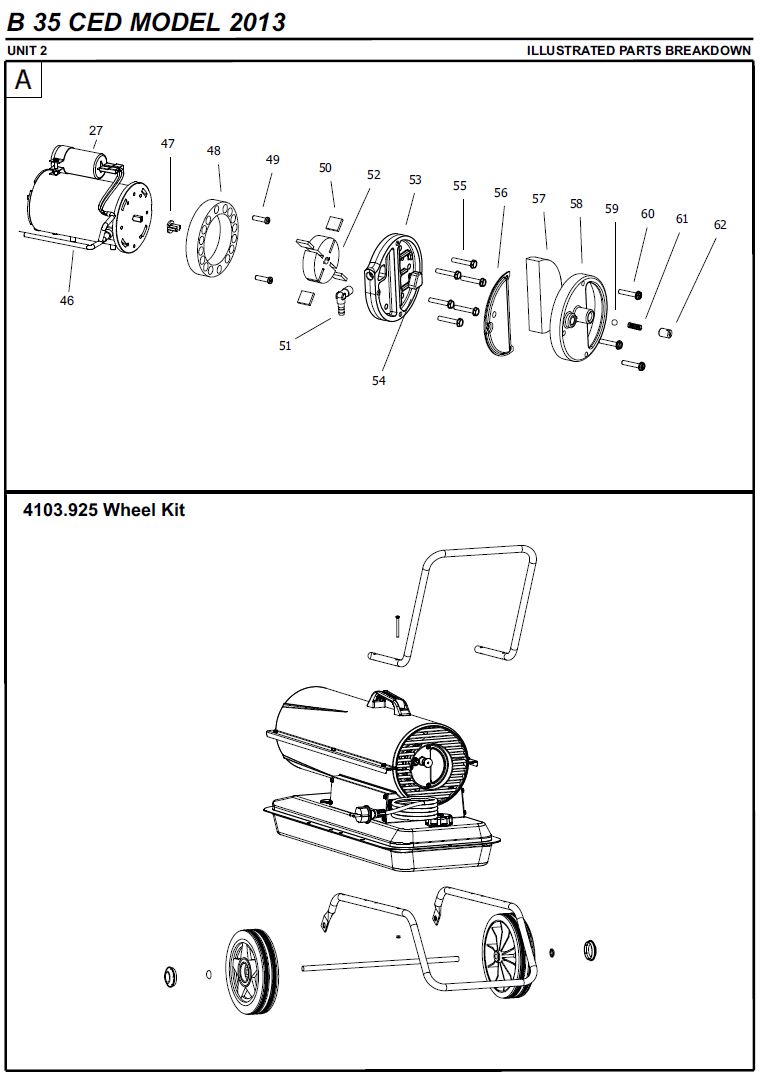

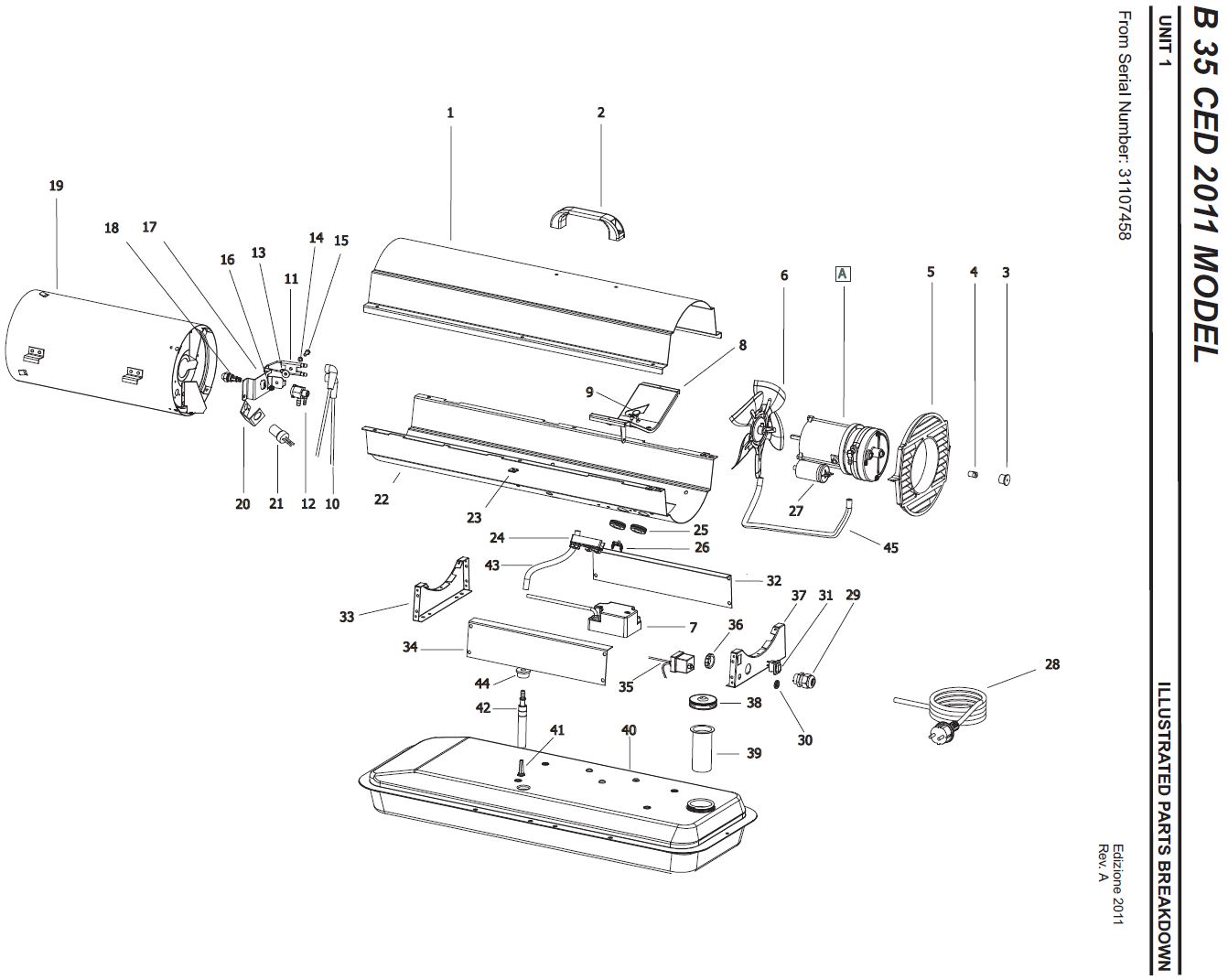

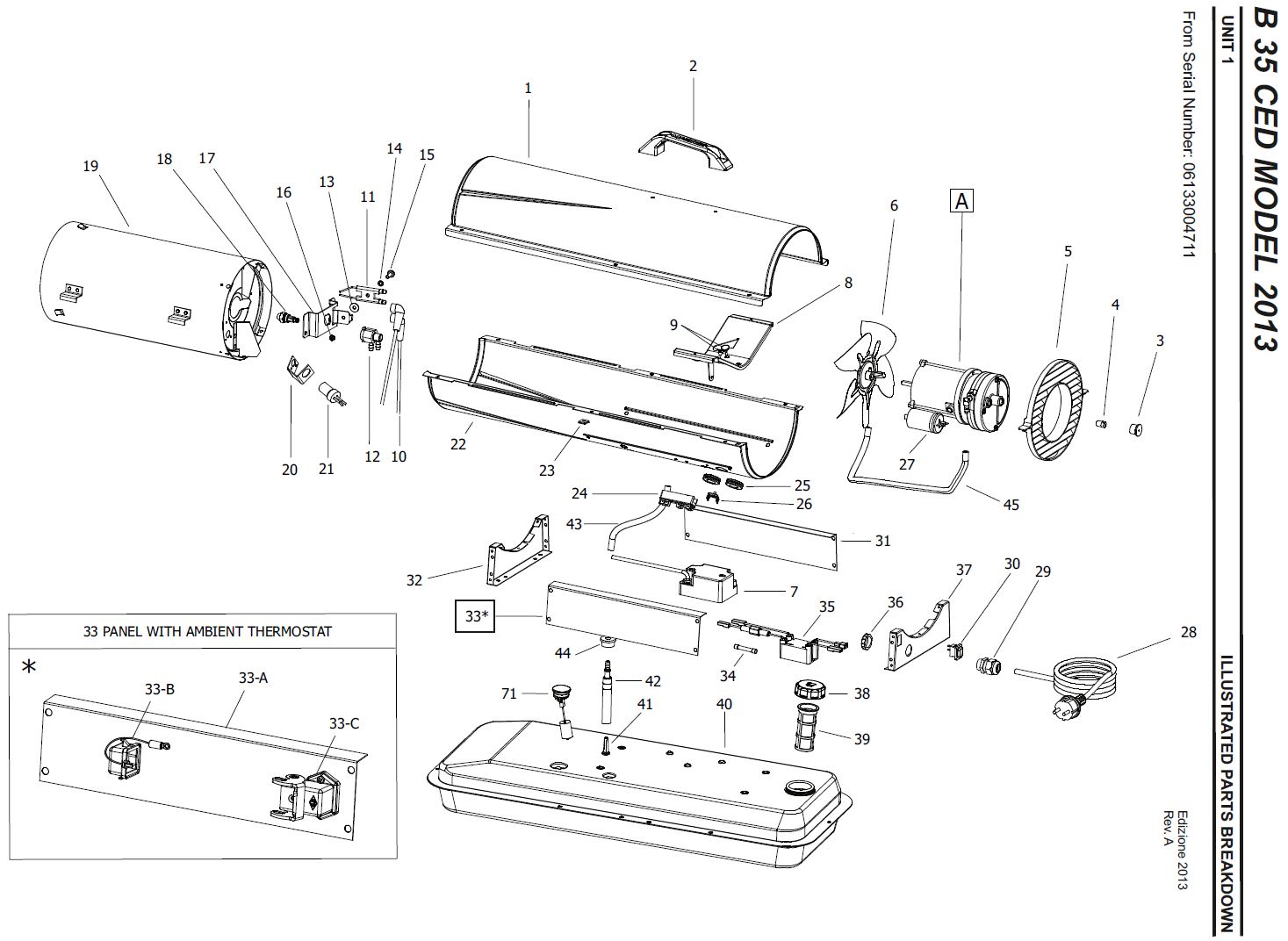

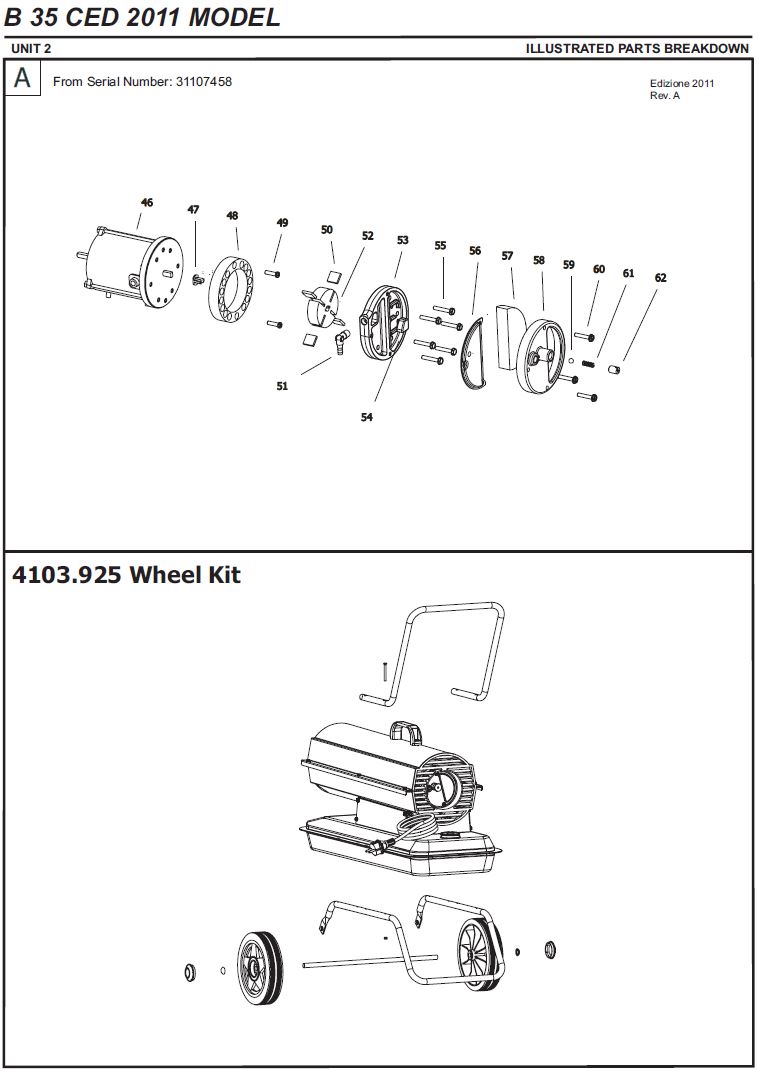

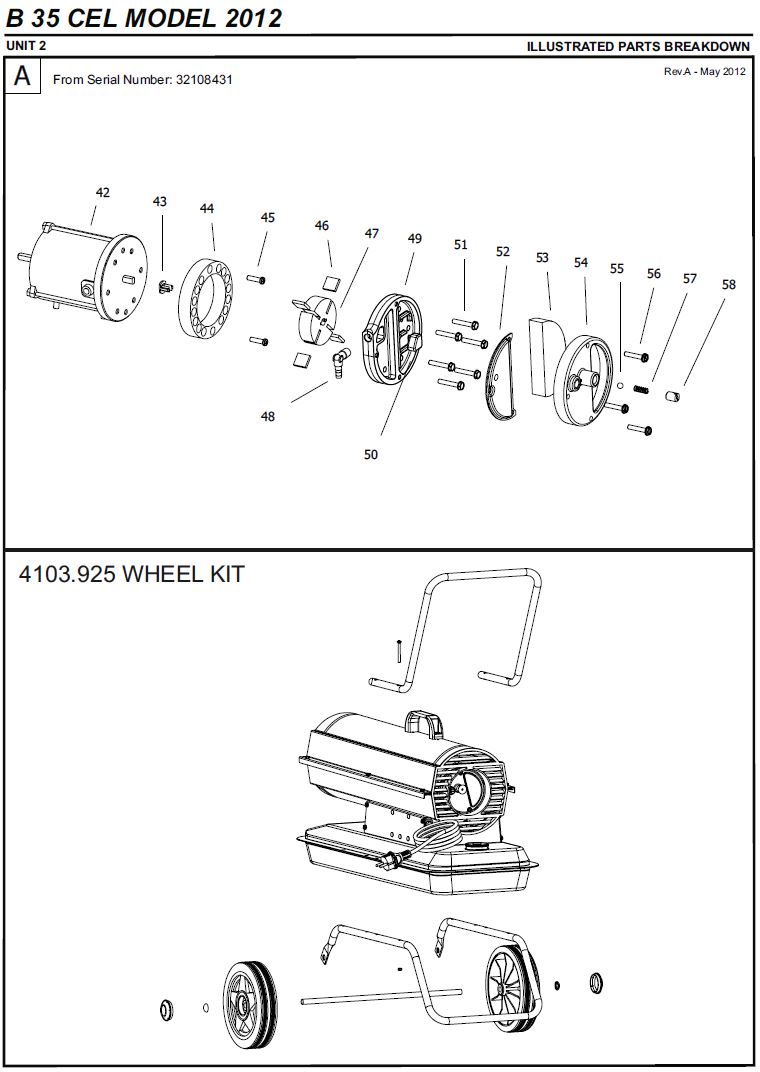

Szám Cikkszám Cikknév                                        Rev. A 2013
1 4109.808 UPPER SHELL
2 4162.934 PLASTIC HANDLE
3 4100.666 COVER CAP
4 4102.125 PRESSURE GAUGE CAP
5 4109.812 FAN GUARD
6 4100.662 FAN
7 4111.885 ELECTRONIC IGNITOR
8 4110.187 MOTOR BRACKET
9 4150.553 BUMPER
10 4111.831 HT CABLE
11 4110.337 BIFILAR ELECTRODES
12 4100.664 NOZZLE ADAPTER
13 4110.394 WASHER
14 4110.393 WASHER
15 4161.315 SCREW
16 4160.618 NUT
17 4100.101 NOZZLE BRACKET
18 4100.648 NOZZLE
19 4110.115 COMBUSTION CHAMBER
20 4100.658 PHOTOCELL BRACKET
21 4110.564 PHOTOCELL ASSEMBLY
22 4109.809 LOWER SHELL
23 4104.170 CLIP NUT
24 4106.110 TERMINAL BOARD
25 4160.646 CABLE PROTECTION
26 4160.639 RIVET POP
27 4111.856 CAPACITOR 3UF
27 4110.292 CAPACITOR 2,5UF
28 4110.451 POWER CORD SCHUKO
28-A 4111.811 POWER CORD NEW ZEALAND
28-B 4110.464 POWER CORD UK
29 4150.528 STRAIN RELIEF
30 4106.179 ON/OFF SWITCH
31 4110.560 RIGHT PANEL
32 4110.113 FRONT FRAME BRACKET
33-A 4106.212 LEFT PANEL FOR AMBIENT THERMOSTAT
33-B 4162.467 CAP FOR THERMOSTAT SOCKET
33-C 4111.119 THERMOSTAT SOCKET
34 4101.864 FUSE
35 4104.193 FLAME OUT CONTROL
36 4100.656 LOCKNUT
37 4110.114 REAR FRAME BRACKET
38 4260.007 FUEL TANK CAP
39 4290.026 FUEL TANK FILTER
40 4110.385 FUEL TANK
41 4110.356 FUEL FILTER
42 4110.427 FUEL LINE
43 4110.032 FUEL LINE
44 4100.541 RUBBER BUSHING
45 4104.147 AIR LINE
46 4110.478 MOTOR 1/35 HP
47 4108.635 INSERT
48 4101.532 PUMP BODY
49 4108.590 PUMP BODY SCREW
50 4101.666 BLADE
51 4100.661 BARB ELBOW
52 4103.441 ROTOR
53 4100.661 PUMP END COVER
54 4109.716 LINT FILTER
55 4108.536 SCREW/LOCKWASHER 4,8x30
56 4109.708 OUTPUT FILTER
57 4109.690 INTAKE FILTER
58 4109.674 END COVER
59 4108.379 STEEL BALL
60 4108.528 SCREW/LOCKWASHER 4,8x25
61 4102.141 PRESSURE RELIEF SPRING
62 4102.133 ADJUSTING SCREW
71 4260.006 FUEL GAUGE
WheelKit 4103.925 WHEEL KIT HD B35/70

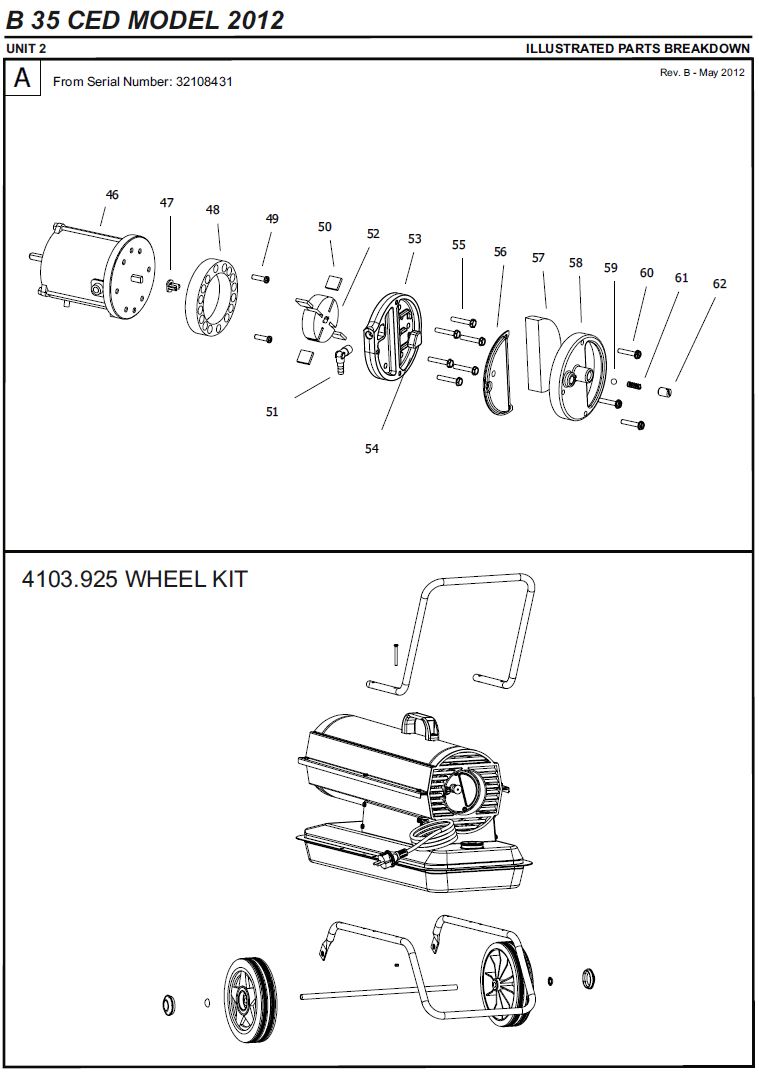

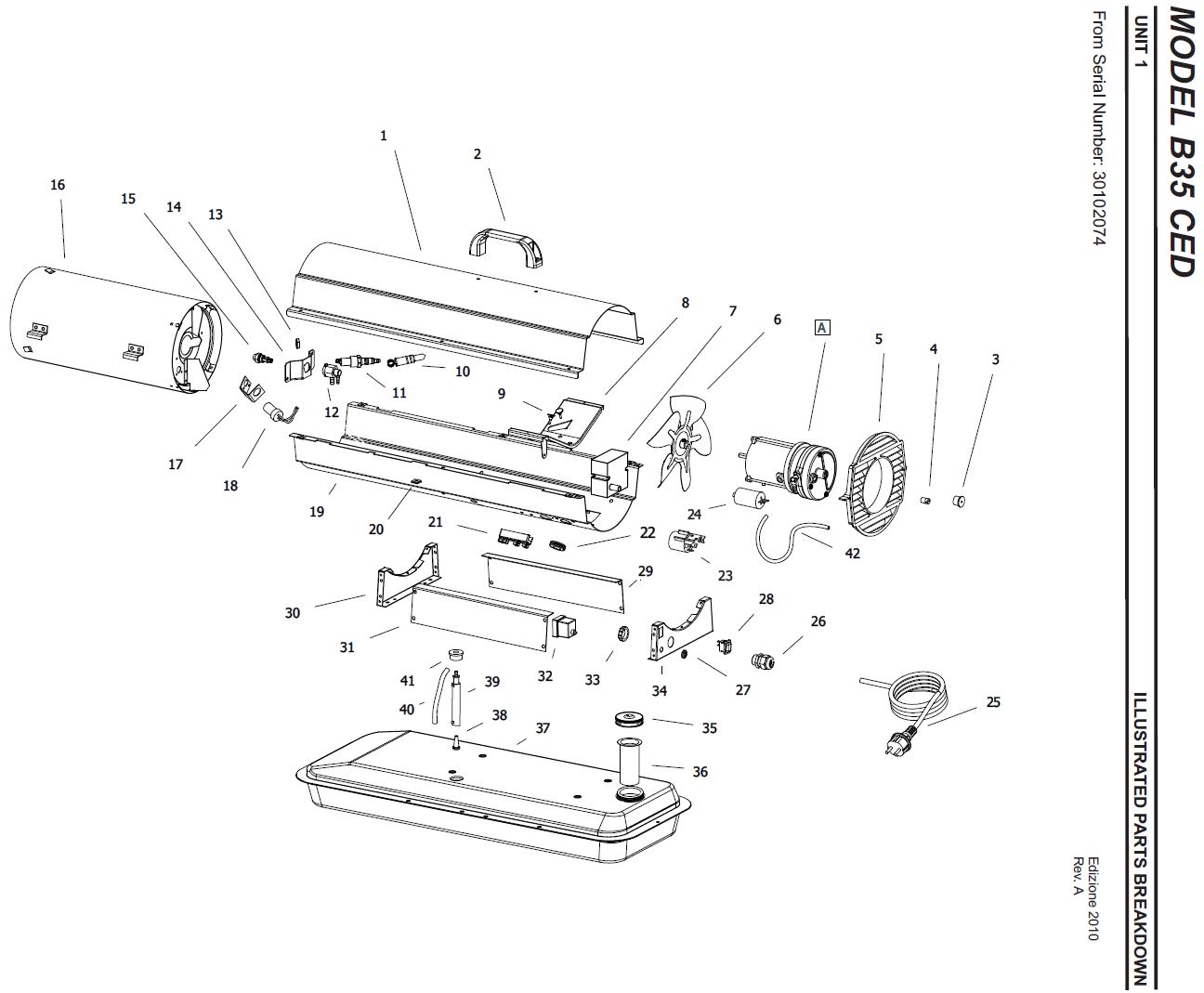

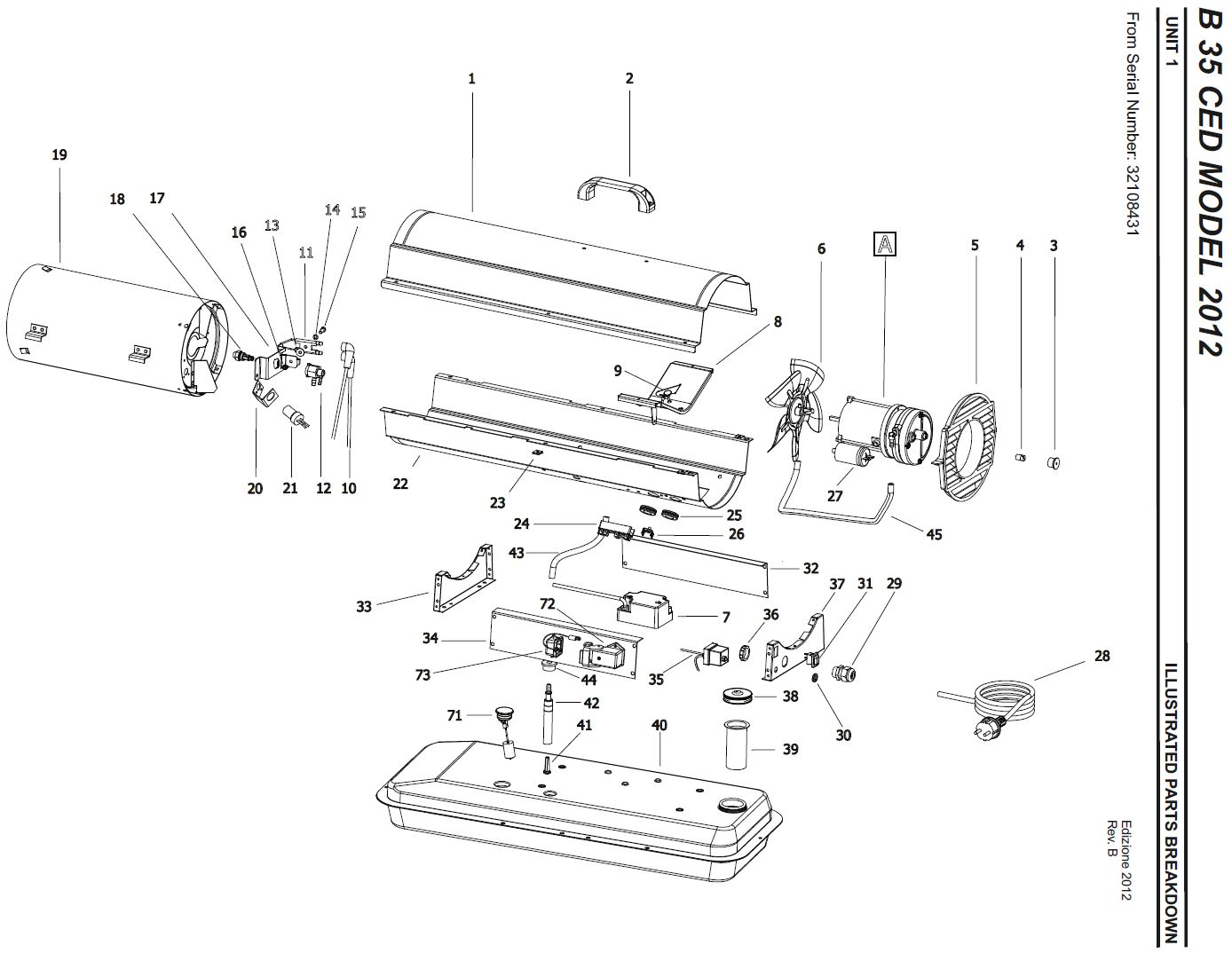

Szám Cikkszám Cikknév                                        Rev. B 2012
1 4110.121 UPPER SHELL
2 4162.893 PLASTIC HANDLE
3 4100.666 COVER CAP
4 4102.125 PRESSURE GAUGE CAP
5 4103.685 FAN GUARD
6 4100.662 FAN
7 4111.885 ELECTRONIC IGNITOR
8 4110.187 MOTOR BRACKET
9 4150.553 BUMPER
10 4111.831 HT CABLE
11 4110.337 BIFILAR ELECTRODES
12 4100.664 NOZZLE ADAPTER
13 4110.394 WASHER
14 4110.393 WASHER
15 4161.315 SCREW
16 4160.618 NUT
17 4100.101 NOZZLE BRACKET
18 4100.648 NOZZLE
19 4110.115 COMBUSTION CHAMBER
20 4100.658 PHOTOCELL BRACKET
21 4110.564 PHOTOCELL ASSEMBLY
22 4110.535 LOWER SHELL
23 4104.170 CLIP NUT
24 4106.110 TERMINAL BOARD
25 4160.646 CABLE PROTECTION
26 4160.639 RIVET POP
27 4110.292 CAPACITOR
28 4110.451 POWER CORD
29 4150.528 STRAIN RELIEF
30 4109.592 NUT
31 4106.179 ON/OFF SWITCH PANEL
32 4110.560 RIGHT PANEL
33 4110.113 FRONT FRAME BRACKET
34 4110.560 LEFT PANEL
34 4110.794 LEFT PANEL FROM SERIAL NUMBER 32117091
35 4104.196 FLAME OUT CONTROL
36 4100.656 LOCKNUT
37 4110.514 REAR FRAME BRACKET
38 4103.891 FUEL TANK CAP
39 4105.292 FUEL TANK FILTER
40 4110.385 FUEL TANK
41 4110.356 FUEL FILTER
42 4110.427 FUEL LINE
43 4110.032 FUEL LINE
44 4100.541 RUBBER BUSHING
45 4104.147 AIR LINE
46 4110.478 MOTOR 1/35 HP
47 4108.635 INSERT
48 4101.532 PUMP BODY
49 4108.590 PUMP BODY SCREW
50 4101.666 BLADE
51 4100.661 BARB ELBOW
52 4103.441 ROTOR
53 4109.724 PUMP END COVER
54 4109.716 LINT FILTER
55 4108.536 SCREW/LOCKWASHER 4,8x30
56 4109.708 OUTPUT FILTER
57 4109.690 INTAKE FILTER
58 4109.674 END COVER
59 4108.379 STEEL BALL
60 4108.528 SCREW/LOCKWASHER 4,8x25
61 4102.141 PRESSURE RELIEF SPRING
62 4102.133 ADJUSTING SCREW
71 4260.006 FUEL GAUGE
72 4111.119 THERMOSTAT SOCKET FROM SERIAL NUMBER 32117091
73 4162.467 CAP FOR THERMOSTAT SOCKET FROM SERIAL NUMBER 32117091
WheelKit 4103.925 WHEEL KIT HD B35/70

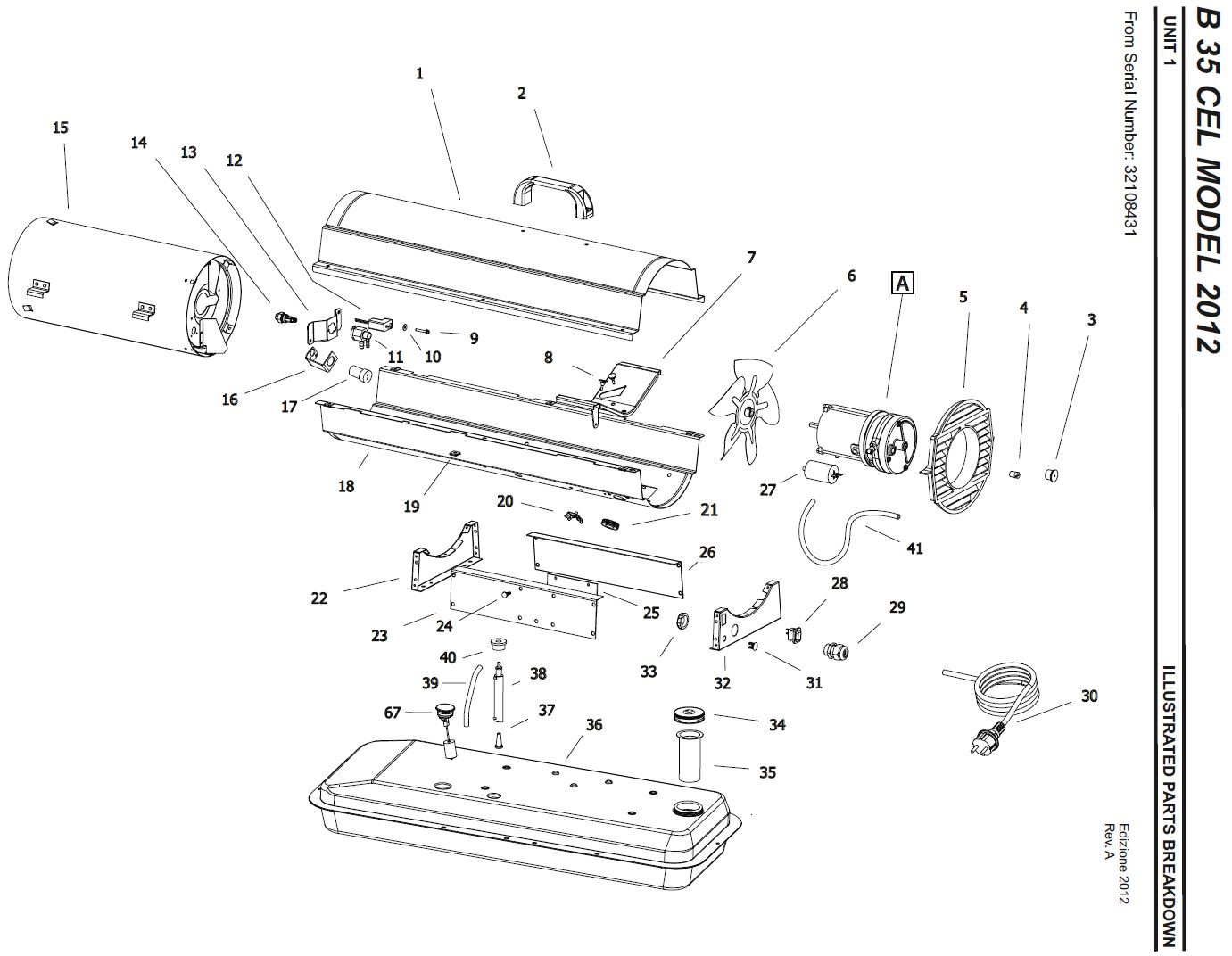

Szám Cikkszám Cikknév                                        Rev. A 2011
1 4110.121 UPPER SHELL
2 4162.893 PLASTIC HANDLE
3 4100.666 COVER CAP
4 4102.125 PRESSURE GAUGE CAP
5 4103.685 FAN GUARD
6 4100.662 FAN
7 4111.885 ELECTRONIC IGNITOR
8 4110.187 MOTOR BRACKET
9 4150.553 BUMPER
10 4111.831 HT CABLE
11 4110.337 BIFILAR ELECTRODES
12 4100.664 NOZZLE ADAPTER
13 4110.394 WASHER
14 4110.393 WASHER
15 4110.363 SCREW
16 4160.618 NUT
17 4100.101 NOZZLE BRACKET
18 4100.648 NOZZLE
19 4110.115 COMBUSTON CHAMBER
20 4100.658 PHOTOCELL BRACKET
21 4110.564 PHOTOCELL ASSEMBLY
22 4110.535 LOWER SHELL
23 4104.170 CLIP NUT
24 4106.110 TERMINAL BOARD
25 4160.646 CABLE PROTECTION
26 4160.639 RIVET POP
27 4110.292 CAPACITOR
28 4110.451 POWER CORD
29 4150.528 STRAIN RELIEF
30 4109.592 NUT
31 4106.179 ON/OFF SWITCH
32 4110.560 RIGHT PANEL
33 4110.113 FRONT FRAME BRACKET
34 4110.560 LEFT PANEL
35 4104.196 FLAME-OUT CONTROL
36 4100.656 LOCKNUT
37 4110.514 REAR FRAME BRACKET
38 4103.891 FUEL TANK CAP
39 4105.292 FUEL TANK FILTER
40 4110.894 FUEL TANK
41 4110.356 FUEL FILTER
42 4110.427 FUEL LINE
43 4110.032 FUEL LINE
44 4100.541 RUBBER BUSHING
45 4104.147 AIR LINE
46 4110.478 MOTOR 1/35 HP
47 4108.635 INSERT
48 4101.532 PUMP BODY
49 4108.590 PUMP BODY SCREW
50 4101.666 BLADE
51 4100.661 BARB ELBOW
52 4103.441 ROTOR
53 4109.724 PUMP END COVER
54 4109.716 LINT FILTER
55 4108.536 SCREW/LOCKWASHER 4,8x30
56 4109.708 OUTPUT FILTER
57 4109.690 INTAKE FILTER
58 4109.674 END COVER
59 4108.379 STEEL BALL
60 4108.528 SCREW/LOCKWASHER 4,8x25
61 4102.141 PRESSURE RELIEF SPRING
62 4102.133 ADJSUTING SCREW
WheelKit 4103.925 WHEEL KIT HD B35/70

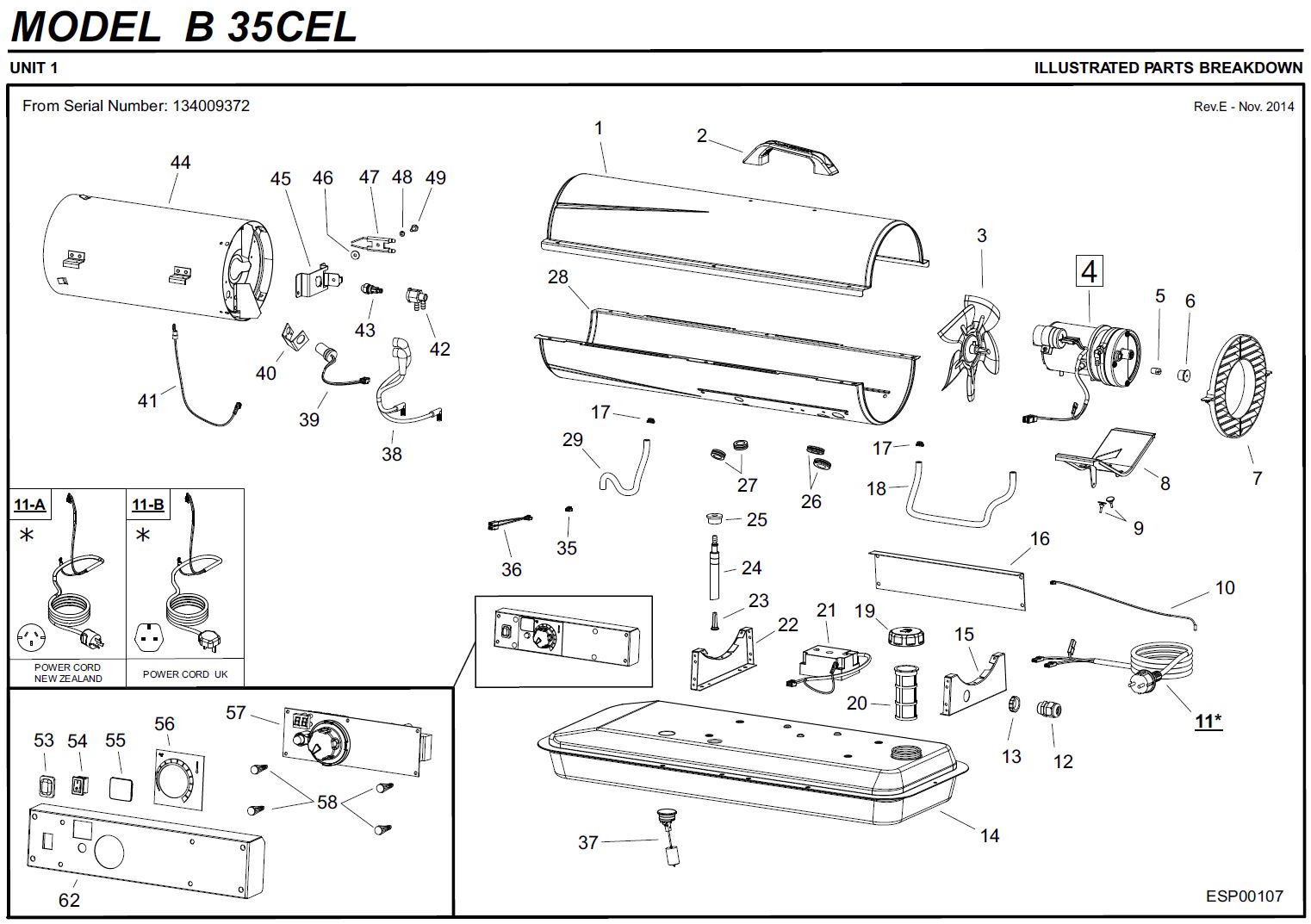

Szám Cikkszám Cikknév                                        Rev. A 2010
1 S/R UPPER SHELL
2 4160.715 PLASTIC HANDLE
3 4100.666 COVER CAP
4 4102.125 PRESSURE GAUGE CAP
5 4103.685 FAN GUARD
6 4100.662 FAN
7 4110.453 ELECTRONIC IGNITOR
8 4110.187 MOTOR BRACKET
9 4150.553 BUMPER
10 4110.194 HT CABLE
11 4109.526 SPARK PLUG
12 4100.664 NOZZLE ADAPTER
13 4109.518 NUT
14 4110.092 NOZZLE BRACKET
15 4100.648 NOZZLE
16 4110.115 COMBUSTION CHAMBER
17 4100.658 PHOTOCELL BRACKET
18 4110.564 PHOTOCELL ASSEMBLY
19 S/R LOWER SHELL
20 4104.170 CLIP NUT
21 4106.110 TERMINAL BOARD
22 4160.646 CABLE PROTECTION
23 4100.528 POWER LINE RFI FILTER
24 4110.292 CAPACITOR
25 4110.486 POWER CORD
26 4150.528 STRAIN RELIEF
27 4109.592 NUT
28 4106.179 ON/OFF SWITCH
29 4110.560 RIGHT PANEL
30 4110.113 FRONT FRAME BRACKET
31 4110.560 LEFT PANEL
32 4104.196 FLAME-OUT CONTROL
33 4100.656 LOCKNUT
34 4110.514 REAR FRAME BRACKET
35 4103.891 FUEL TANK CAP
36 4105.292 FUEL TANK FILTER
37 4110.894 FUEL TANK
38 4110.356 FUEL FILTER
39 4110.427 FUEL LINE
40 4110.032 FUEL LINE
41 4100.541 RUBBER BUSHING
42 4104.147 AIR LINE
43 4110.478 MOTOR 1/35 HP
44 4108.635 INSERT
45 4101.532 PUMP BODY
46 4108.590 PUMP BODY SCREW
47 4101.666 BLADE
48 4100.661 BARB ELBOW
49 4103.441 ROTOR
50 4109.724 PUMP END COVER
51 4109.716 LINT FILTER
52 4108.536 SCREW/LOCKWASHER 4,8x30
53 4109.708 OUPUT FILTER
54 4109.690 INTAKE FILTER
55 4109.674 END COVER
56 4108.379 STEEL BALL
57 4108.528 SCREW/LOCKWASHER 4,8x25
58 4102.141 PRESSURE RELIEF SPRING
59 4102.133 ADJUSTING SCREW
WheelKit 4103.925 WHEEL KIT HD B35/70

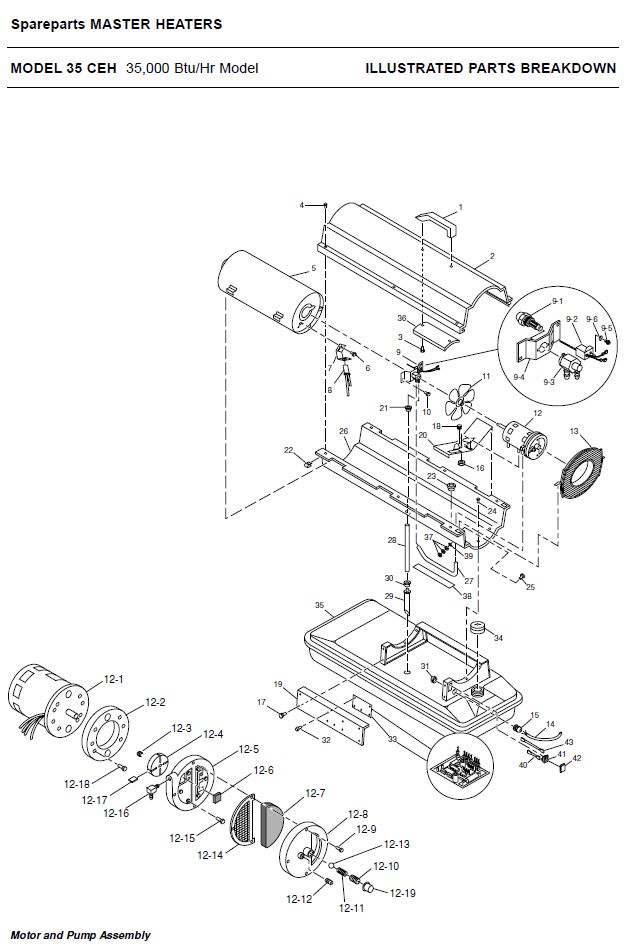

Szám Cikkszám Cikknév
1 4103.784 Handle
2 4103.842 Upper Shell
3 4108.510 Screw
4 4109.590 Screw/Lockwasher
5 4100.638 Combustion Chamber
6 4103.529 Screw, #6-32 x 3/8"
7 4100.657 Photocell Bracket
8 4103.590 Photocell Assembly
9 ** Burner Strap Assembly
9-1 4100.648 Nozzle Assembly
9-2 4110.132 Ignitor Kit w/ Ignition Control
9-3 4100.664 Nozzle Adapter
9-4 4100.653 Nozzle Adapter Bracket
9-5 4100.669 Screw, #6-32 x 7/8"
9-6 4100.660 Belleville Washer
10 4110.124 Screw/Lockwasher, 1/2"
11 4100.662 Fan
12 ** Motor and Pump Assembly
12-1 4106.098 Motor
12-2 4101.532 Pump Body
12-3 4108.635 Insert
12-4 4103.441 Rotor
12-5 4109.724 Pump End Cover
12-6 4109.736 Lint Filter
12-7 4109.690 Intake Filter
12-8 4109.674 End Cover
12-9 4108.528 Screw, #10-32 x 1"
12-10 4102.133 Adjusting Screw
12-11 4102.141 Pressure Relief Spring
12-12 4102.125 Plug
12-13 4108.379 Steel Ball, 1/4" Diameter
12-14 4109.708 Output Filter
12-15 4108.536 Screw, #10-32 x 1 1/8"
12-16 4101.666 Blade
12-18 4108.590 Screw, #10-32 x 3/4"
12-19 4100.666 Plastic Cap
13 4103.685 Fan Guard
14 S/R Power Cord
15 4150.528 Strain Relief Bushing
16 4108.486 Hex Lock Nut, 1/4-20
17 4110.124 Screw/Lockwasher, 1/2"
18 4150.553 Rubber Bumper
19 4100.635 Side Cover
20 4110.187 Motor Bracket
21 4101.151 Bushing
22 4104.170 Clip Nut
23 4101.152 Bushing
24 4110.124 Screw/Lockwasher, 1/2"
25 4100.674 Screw
26 4100.636 Lower Shell
27 4104.147 Rubber Airline
28 4109.567 Fuel Line
29 4109.575 Fuel Filter
30 4100.541 Rubber Bushing
31 4100.656 Nylon Locknut
32 4100.654 PCB Support
33 4110.142 Ignition Control w/ Ignitor
34 4103.891 Fuel Cap (Includes Gasket)
35 4100.642 Fuel Tank
36 4100.671 Shell Heat-Shield
37 4100.673 Nut
38 4110.075 Vinyl Foam Gasket
39 4100.527 Lockwasher
40 S/R Wire Assembly (Brown)
41 4100.667 ON/OFF Switch
42 4104.336 Swicth Cover
43 S/R Wire Assembly (White)
NotShown 4105.292 Filler Neck Screen
NotShown S/R Wire Tie
NotShown 4110.138 Tradename Decal
NotShown S/R Decal Package

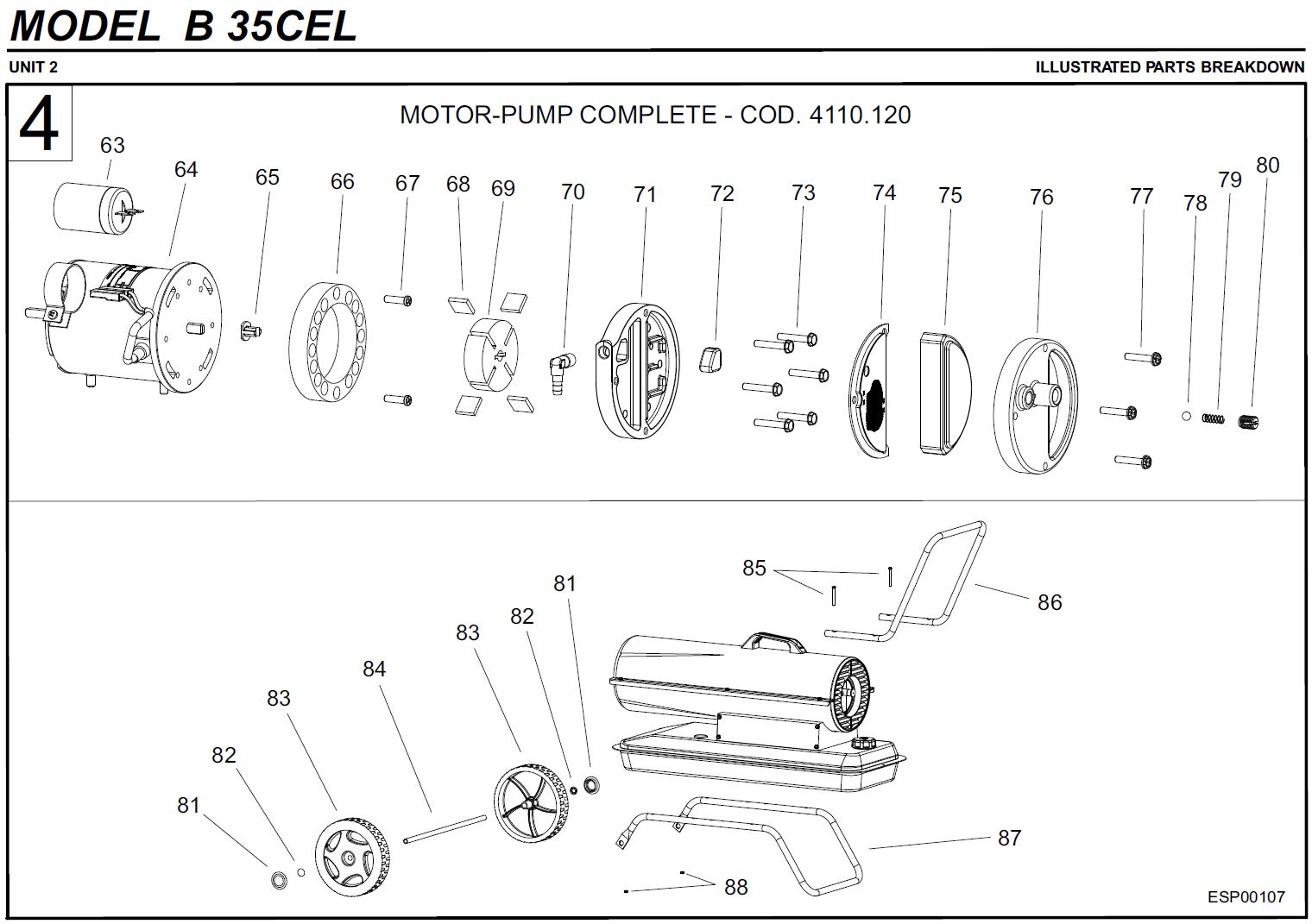

Szám Cikkszám Cikknév                                  Rev. E 2014 Nov.
1 4109.808 UPPER SHELL
2 4162.934 HANDLE
3 4100.662 FAN
4 4110.120 MOTOR-PUMP COMPLETE
5 4102.125 PRESSURE SCREW
6 4100.666 PRESSURE CAP
7 4109.812 INLET GRID
8 4110.187 MOTOR BRACKET
9 4150.553 BUMPER
10 4220.119 TEMPERATURE SONDE WIRE
11 4160.539 POWER CORD SCHUKO
11-A 4111.748 POWER CORD NEW ZEALAND
11-B 4160.540 POWER CORD UK
12 4150.528 STRAIN RELIEF
13 4100.656 NUT
14 4111.843 TANK
15 4101.024 REAR SUPPORT
16 4106.210 LATERAL PANEL
17 4110.159 BIFILAR CLAMP
18 4104.147 AIR PIPE
19 4100.052 TANK CAP
20 4290.026 TANK FILTER
21 4101.019 HIGH TENSION TRANSFORMER
22 4110.113 FRONT SUPPORT
23 4110.356 FUEL FILTER
24 4110.427 FUEL PIPE
25 4100.541 RUBBER BUSHING
26 4160.646 STRAIN RELIEF
27 4101.151 STRAIN RELIEF
28 4111.924 LOWER SHELL
29 4110.032 FUEL PIPE VALVE-NOZZLE
35 4220.120 BRIDGE WIRE
36 4220.167 SWITCH WIRE
37 4260.006 FUEL GAUGE
38 4111.831 HIGH TENSION WIRES
39 4220.115 PHOTOCELL
40 4100.658 PHOTOCELL BRACKET
41 4109.894 GROUND COMBUSTION CHAMBER WIRE
42 4100.663 NOZZLE HOLDER
43 4100.648 NOZZLE
44 4110.115 COMBUSTION CHAMBER
45 4100.101 NOZZLE BRACKET
46 4100.394 FIBER WASHER
47 4110.337 BIFILAR ELECTRODE
48 4110.393 ELASTIC WASHER
49 4161.315 SCREW
53 4104.336 SWITCH COVER
54 4106.179 SWITCH
55 4201.068 DISPLAY COVER
56 4106.032 CONTROL PANEL LABEL
57 4220.170 PC-BOARD
58 4101.021 PC-BOARD SPACE
62 4101.032 CONTROL PANEL
63 4111.856 CAPACITOR
64 4111.850 MOTOR
65 4108.635 MOTOR COUPLING
66 4101.532 PUMP BODY
67 4108.590 PUMP BODY SCREW
68 4101.666 ROTOR BLADE
69 4103.441 ROTOR
70 4100.661 90° CONNECTION
71 4109.724 OIL PUMP ALUMINIUM PLATE
72 4109.716 INTERNAL AIR FILTER
73 4108.536 SCREW/LOCKWASHER 4,8x30
74 4109.708 OUTLET AIR FILTER
75 4109.690 INLET AIR FILTER
76 4109.674 END COVER
77 4108.528 SCREW/LOCKWASHER 4,8x25
78 4108.379 STEEL BALL
79 4102.141 SPRING
80 4102.133 REGULATION SCREW



Szám Cikkszám Cikknév                                       Rev. A 2013
1 4109.808 UPPER SHELL
2 4162.934 PLASTIC HANDLE
3 4100.666 COVER CAP
4 4102.125 PRESSURE GAUGE CAP
5 4109.812 FAN GUARD
6 4100.662 FAN
7 4110.187 MOTOR BRACKET
8 4150.553 BUMPER
9 4100.669 SCREW
10 4100.660 WASHER
11 4100.663 NOZZLE ADAPTER
12 4110.132 IGNITOR
13 4100.653 NOZZLE BRACKET
14 4100.648 NOZZLE
15 4110.115 COMBUSTION CHAMBER
16 4100.657 PHOTOCELL BRACKET
17 4103.590 PHOTOCELL ASSEMBLY
18 4109.809 LOWER SHELL
19 4104.170 CLIP NUT
20 4160.639 POP RIVET WITH TERMIN. 4 WAY
21 4160.646 CABLE PROTECTION
22 4110.113 FRONT FRAME BRACKET
23 4106.211 CONTROL BOX SIDE PANEL
24 4110.460 PC BOARD SUPPORT
25 4110.142 IGNITION CONTROL ASSEMBLY
26 4106.210 SIDE PANEL
27 4111.856 CAPACITOR 3UF
27 4110.292 CAPACITOR ,25UF
28 4100.667 ON/OFF SWITCH
29 4150.528 STRAIN RELIEF
30 4110.451 POWER CORD
30-A 4111.811 POWER CORD NEW ZEALAND
30-B 4110.464 POWER CORD UK
31 4100.649 PLASTIC CAP
32 4110.114 REAR FRAME BRACKET
33 4100.656 LOCKNUT
34 4260.007 FUEL TANK CAP
35 4290.026 FUEL TANK FILTER
36 4110.894 FUEL TANK
37 4110.356 FUEL FILTER
38 4110.427 FUEL LINE
39 4110.032 FUEL LINE
40 4100.541 RUBBER BUSHING
41 4104.147 AIR LINE
42 4110.478 MOTOR 1/35 HP
43 4108.635 INSERT
44 4101.532 PUMP BODY
45 4108.590 AIR LINE
46 4101.666 BLADE
47 4103.441 ROTOR
48 4100.661 BARB ELBOW
49 4109.724 PUMP END COVER
50 4109.716 LINT FILTER
51 4108.536 SCREW/LOCKWASHER 4,8x
52 4109.708 OUTPUT FILTER
53 4109.690 INTAKE FILTER
54 4109.674 END COVER
55 4108.379 STEEL BALL
56 4108.528 SCREW/LOCKWASHER 4,8x25
57 4102.141 PRESSURE RELIEF SPRING
58 4102.133 ADJUSTING SCREW
67 4260.006 FUEL GAUGE
WheelKit 4103.925 WHEEL KIT HD B35/70



Szám Cikkszám Cikknév                                       Rev. A 2012
1 4110.121 UPPER SHELL
2 4162.893 PLASTIC HANDLE
3 4100.666 COVER CAP
4 4102.125 PRESSURE GAUGE CAP
5 4103.685 FAN GUARD
6 4100.662 FAN
7 4110.187 MOTOR BRACKET
8 4150.553 BUMPER
9 4100.669 SCREW
10 4100.660 WASHER
11 4100.664 NOZZLE ADAPTER
12 4110.132 IGNITOR
13 4100.653 NOZZLE BRACKET
14 4100.648 NOZZLE
15 4110.115 COMBUSTION CHAMBER
16 4100.657 PHOTOCELL BRACKET
17 4103.590 PHOTOCELL ASSEMBLY
18 4110.122 LOWER SHELL
19 4104.170 CLIP NUT
20 4160.639 POP RIVET WITH TERMIN. 4 WAY
21 4160.646 CABLE PROTECTION
22 4110.113 FRONT FRAME BRACKET
23 4100.635 CONTROL BOX SIDE PANEL
24 4110.460 PC BOARD SUPPORT
25 4110.142 IGNITION CONTROL ASSEMBLY
26 4110.560 SIDE PANEL
27 4110.292 CAPACITOR
28 4106.179 ON/OFF SWITCH
29 4150.528 STRAIN RELIEF
30 4110.451 POWER CORD
31 4100.649 PLASTIC CAP
32 4110.514 REAR FRAME BRACKET
33 4100.656 LOCKNUT
34 4103.891 FUEL TANK CAP
35 4105.292 FUEL TANK FILTER
36 4110.385 FUEL TANK
37 4110.356 FUEL FILTER
38 4110.427 FUEL LINE
39 4110.032 FUEL LINE
40 4100.541 RUBBER BUSHING
41 4104.147 AIR LINE
42 4110.478 MOTOR 1/35 HP
43 4108.635 INSERT
44 4101.532 PUMP BODY
45 4108.590 AIR LINE
46 4101.666 BLADE
47 4103.441 ROTOR
48 4100.661 BARB ELBOW
49 4109.724 PUMP END COVER
50 4109.716 LINT FILTER
51 4108.536 SCREW/LOCKWASHER 4,8x
52 4109.708 OUTPUT FILTER
53 4109.690 INTAKE FILTER
54 4109.674 END COVER
55 4108.379 STEEL BALL
56 4108.528 SCREW/LOCKWASHER 4,8x25
57 4102.141 PRESSURE RELIEF SPRING
58 4102.133 ADJUSTING SCREW
67 4260.006 FUEL GAUGE
WheelKit 4103.925 WHEEL KIT HD B35/70



Szám Cikkszám Cikknév                                       Rev. A 2010
1 S/R UPPER SHELL
2 4160.715 PLASTIC HANDLE
3 4100.666 COVER CAP
4 4102.125 PRESSURE GAUGE CAP
5 4103.685 FAN GUARD
6 4100.662 FAN
7 4110.187 MOTOR BRACKET
8 4150.553 BUMPER
9 4100.669 SCREW
10 4100.660 WASHER
11 4100.664 NOZZLE ADAPTER
12 4110.132 IGNITOR
13 4100.653 NOZZLE BRACKET
14 4100.648 NOZZLE
15 4110.115 COMBUSTION CHAMBER
16 4100.657 PHOTOCELL BRACKET
17 4103.590 PHOTOCELL ASSEMBLY
18 S/R LOWER SHELL
19 4104.170 CLIP NUT
20 4160.639 POP RIVET WITH TERMIN. 4 WAY
21 4160.646 CABLE PROTECTION
22 4110.113 FRONT FRAME BRACKET
23 4100.635 CONTROL BOX SIDE PANEL
24 4110.460 PC BOARD SUPPORT
25 4110.142 IGNITION CONTROL ASSEMBLY
26 4110.560 SIDE PANEL
27 4110.292 CAPACITOR
28 4106.179 ON/OFF SWITCH
29 4150.528 STRAIN RELIEF
30 4110.451 POWER CORD
31 4100.649 PLASTIC CAP
32 4110.514 REAR FRAME BRACKET
33 4100.656 LOCKNUT
34 4103.891 FUEL TANK CAP
35 4105.292 FUEL TANK FILTER
36 4110.894 FUEL TANK
37 4110.356 FUEL FILTER
38 4110.427 FUEL LINE
39 4110.032 FUEL LINE
40 4100.541 RUBBER BUSHING
41 4104.147 AIR LINE
42 4110.478 MOTOR 1/35 HP
43 4108.635 INSERT
44 4101.532 PUMP BODY
45 4108.590 AIR LINE
46 4101.666 BLADE
47 4103.441 ROTOR
48 4100.661 BARB ELBOW
49 4109.724 PUMP END COVER
50 4109.716 LINT FILTER
51 4108.536 SCREW/LOCKWASHER 4,8x
52 4109.708 OUTPUT FILTER
53 4109.690 INTAKE FILTER
54 4109.674 END COVER
55 4108.379 STEEL BALL
56 4108.528 SCREW/LOCKWASHER 4,8x25
57 4102.141 PRESSURE RELIEF SPRING
58 4102.133 ADJUSTING SCREW
WheelKit 4103.925 WHEEL KIT HD B35/70



Szám Cikkszám Cikknév
1 4160.715 Handle
2 4110.121 Upper Shell
3 4160.602 Screw
4 4109.590 Screw/Lockwasher
5 4110.115 Combustion Chamber
6 4103.529 Screw, #6-32 x 3/8"
7 4100.657 Photocell Bracket
8 4103.590 Photocell Assembly
9 *** Burner Strap Assembly
9-1 4100.648 Nozzle Assembly
9-2 4110.132 Ignitor
9-3 4100.664 Nozzle Adapter
9-4 4100.653 Nozzle Adapter Bracket
9-5 4100.669 Screw, #6-32 x 7/8"
9-6 4100.660 Belleville Washer
10 4110.124 Screw/Lockwasher
11 4100.662 Fan
12 *** Motor and Pump Assembly
12-1 4110.042 Motor
12-2 4101.532 Pump Body
12-3 4108.635 Insert
12-4 4103.441 Rotor
12-5 4109.724 Pump End Cover
12-6 4109.716 Lint Filter
12-7 4109.690 Intake Filter
12-8 4109.674 End Cover
12-9 4108.528 Screw, #10-32 x 1"
12-10 4102.133 Adjusting Screw
12-11 4102.141 Pressure Relief Spring
12-12 4102.125 Plug
12-13 4108.379 Steel Ball, 1/4" Diameter
12-14 4109.708 Output Filter
12-15 4108.536 Screw #10-32 x 1 1/8"
12-16 4100.661 Nylon Elbow, 90
12-17 4101.666 Blade
12-18 4108.590 Screw, #10-32 x 3/4"
12-19 4100.666 Plastic Cap
13 4103.685 Fan Guard
14 4110.038 Power Cord
15 4150.528 Strain Relief Bushing
16 4108.486 Hex Lock Nut, 1/4-20
17 4110.124 Screw/Lockwasher, 1/2"
18 4150.553 Rubber Bumper
19 4100.635 Side Cover
20 4110.187 Motor Bracket
21 4101.151 Bushing
22 4104.170 Clip Nut
23 4101.152 Bushing
24 4110.124 Screw/Lockwasher, 1/2"
25 4110.133 Screw
26 4110.122 Lower Shell
27 4104.147 Rubber Airline
28 4109.567 Fuel Line
29 4110.135 Fuel Filter
30 4100.541 Rubber Bushing
31 4100.656 Nylon Locknut
32 4100.654 PCB Support
33 4110.142 PC Board
34 4103.891 Fuel Cap (Includes Gasket)
35 4110.136 Fuel Tank
36 4100.671 Shell Heat-Shield
37 4110.134 Nut
38 4110.075 Vinyl Foam Gasket
39 4160.613 Lockwasher
40 4110.036 Wire Assembly (Brown)
41 4100.667 ON/OFF Switch
42 4104.336 Switch Cover
43 4110.037 Wire Assembly (White)
NotShown 4105.292 Filler Neck Screen
NotShown 4161.829 PC Board Fuse





A megfelelő hőlégfúvó kiválasztása:

Tulajdonságok
Működési idő 1 tank üzemanyag
16
Termosztátos szabályozás
rendelhető
Üzemanyag-fogyasztás (liter/h)
0,9
Márka
Master
Nettó súly (kg)
14.00
Bruttó súly (kg)
16.00
Termék méretek (HxSZxM)(mm)
745x300x405
Üzemanyagtank (liter)
15
VTSZ
73229000
Csomagolási méret (HxSZxM)(mm)
810x350x450
Elektromos motor telj. (W)
80
IP védelem
IP41
Áramfelvétel (A)
0,35
Feszültség (V/Hz)
230/50
Légszállítás (m3/h)
280
Fűtőteljesítmény (kW)
10
Csomagolás
kartondoboz
Légfúvó nyílás átmérő (mm)
csak teszt

Helyettesítő termékek

MASTER B100 hőlégfúvó (gázolajos 29kW) B100
MASTER B100 hőlégfúvó (gázolajos 29kW)
Cikkszám
B100
Raktáron
Nettó ár:
196 772 Ft
Bruttó ár:
249 900 Ft
db
MASTER B70 hőlégfúvó (gázolajos 20kW) B70
MASTER B70 hőlégfúvó (gázolajos 20kW)
Cikkszám
B70
Raktáron
Nettó ár:
133 780 Ft
Bruttó ár:
169 900 Ft
db

Opciós termékek

Szállítókocsi MASTER B35/70 4103.925
Szállítókocsi MASTER B35/70
Cikkszám
4103.925
Raktáron
Nettó ár:
24 331 Ft
Bruttó ár:
30 900 Ft
db
Szobatermosztát hőlégfúvóhoz MASTER TH5 (3m) 4150.109
Szobatermosztát hőlégfúvóhoz MASTER TH5 (3m)
Cikkszám
4150.109
Raktáron
Nettó ár:
18 102 Ft
Bruttó ár:
22 990 Ft
db
Szobatermosztát hőlégfúvóhoz MASTER TH5 (10m) 4150.112
Szobatermosztát hőlégfúvóhoz MASTER TH5 (10m)
Cikkszám
4150.112
Raktáron
Nettó ár:
29 126 Ft
Bruttó ár:
36 990 Ft
db
Digitális termosztát MASTER THD (5m, 230V/50-60 Hz) 4150.133
Digitális termosztát MASTER THD (5m, 230V/50-60 Hz)
Cikkszám
4150.133
Raktáron
Nettó ár:
78 661 Ft
Bruttó ár:
99 900 Ft
db
Digitális termosztát MASTER THD (10m, 230V/50-60Hz) 4150.134
Digitális termosztát MASTER THD (10m, 230V/50-60Hz)
Cikkszám
4150.134
Raktáron
Nettó ár:
84 173 Ft
Bruttó ár:
106 900 Ft
db
Master szerviz csomag B35CED (2011-től) B35CEL (2014-től) 4519.012
Master szerviz csomag B35CED (2011-től) B35CEL (2014-től)
Cikkszám
4519.012
Raktáron
Nettó ár:
12 710 Ft
Bruttó ár:
16 142 Ft
db
