  5. MASTER BV170 hőlégfúvó (kéményes, gázolajos 49kW)
MASTER BV170 hőlégfúvó (kéményes, gázolajos 49kW) BV170

MASTER BV170 hőlégfúvó (kéményes, gázolajos 49kW)

Cikkszám
BV170
Nettó listaár
653 465 Ft / db
Bruttó listaár
829 900 Ft / db
Raktáron
Nettó ár:
653 465 Ft
Bruttó ár:
829 901 Ft
db

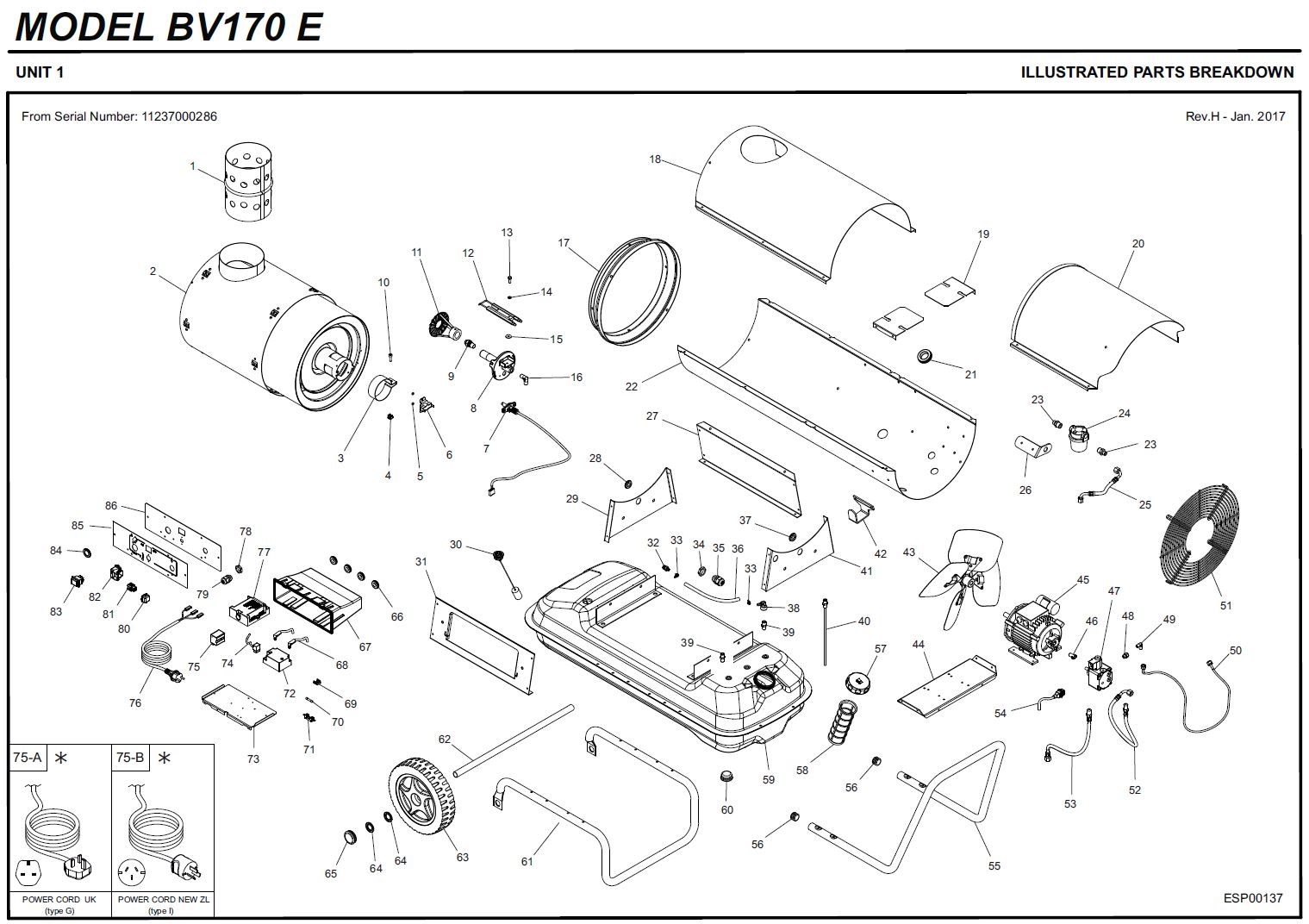

Szám Cikkszám Cikknév                              Rev. H Jan. 2017
1 4032.385 CHIMNEY
2 4033.188 COMBUSTION CHAMBER
3 4032.545 AIR DAMPER
4 4032.454 CAGE NUT
5 4032.692 SPACER
6 4031.047 SAFETY THERMOSTAT
7 4033.246 PHOTOCELL SENSOR
8 4033.034 BURNER HEAD
9 4031.025 NOZZLE
10 4032.455 SCREW
11 4032.570 BURNER HEAD DIFFUSER
12 4111.826 BIFILAR ELECTRODES
13 4110.363 SCREW
14 4110.393 ELASTIC WASHER
15 4110.394 FIBER WASHER
16 4033.198 90° FUEL CONNECTION
17 4032.544 OUTLET CONE
18 4032.546 UPPER SHELL
19 4032.554 AIR DEFLECTOR
20 4032.548 UPPER SHELL - MOBILE
21 4111.056 GASKET
22 4032.550 LOWER SHELL
23 4034.378 STRAIGHT FUEL CONNECTION
24 4033.090 FUEL FILTER
25 4031.063 FUEL PIPE - FILTER TANK
26 4032.437 FILTER BRACKET
27 4032.560 LATERAL PANEL
28 4162.500 GASKET
29 4033.095 FRONT PANEL
30 4260.105 FUEL GAUGE
31 4032.558 LATERAL CONTROL PANEL
32 4260.246 BREATH VALVE
33 4100.810 CLIP
34 4100.656 NUT
35 4150.528 STRAIN RELIEF
36 4100.204 RUBBER PIPE
37 4162.500 GASKET
38 4100.192 90° AIR CONNECTION
39 4031.068 STRAIGH CONNECTION
40 4031.067 SUCTION PIPE
41 4034.293 REAR PANEL
42 4032.536 POWER CORD BRACKET
43 4033.030 FAN
44 4032.555 MOTOR SUPPORT
45 4032.371 MOTOR
46 4111.081 MOTOR PUMP COUPLING
47 4111.042 FUEL PUMP
48 4161.501 STRAIGHT FUEL CONNECTION
49 4033.198 90° FUEL CONNECTION
50 4111.049 FUEL FLEXIBLE PIPE
51 4032.557 GRILLE
52 4031.061 FUEL PIPE - PUMP-FILTER
53 4031.062 FUEL PIPE - PUMP-TANK
54 4033.087 PUMP VALVE POWER CORD
55 4032.568 HANDLE
56 4111.057 HANDLE CAP
57 4034.283 TANK CAP
58 4290.213 TANK FILTER
59 4034.290 TANK
60 4100.632 TANK DRAIN CAP
61 4032.564 WHEELS SUPPORT
62 4032.566 WHEELS AXLE
63 4032.094 WHEEL
64 4111.072 BLOCK WASHER
65 4111.480 WHEEL CAP
66 4160.646 GASKET
67 4033.257 PLASTIC BOX
68 4110.490 HIGH TENSION WIRE
69 4160.639 GROUND FASTON
70 4111.040 FUSE
71 4033.301 FUSE HOLDER
72 4031.541 HIGH TENSION TRANSFORMER
73 4033.249 CONTROL PANEL BASE
74 4110.491 HIGH TENSION TRANSFORMER POWER CORD
75 4031.514 RELAY
76 4033.253 POWER CORD SCHUKO
76A 4033.302 POWER CORD UK
76B 4033.252 POWER CORD NEW ZEALAND
77 4032.774 PC-BOARD
78 4100.656 NUT
79 4150.528 STRAIN RELIEF
80 4162.467 THERMOSTAT CAP
81 4161.400 THERMOSTAT PLUG
82 4160.647 THERMOSTAT SOCKET
83 4165.204 SWITCH
84 4033.251 PC-BOARD CAP
85 4033.254 CONTROL PANEL LABEL
86 4033.248 CONTROL PANEL



Szám Cikkszám Cikknév                              Rev. G Apr. 2016
1 4032.546 UPPER BODY
2 4032.548 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4032.557 INLET GRILLE
5 4032.371 MOTOR
6 4033.030 FAN
7 4032.554 AIR FLAP
8 4104.170 CLIP NUT
9 4111.056 PROTECTION CLABLE
10 4032.555 MOTOR FLANGE
12 4160.646 PROTECTION CABLE
13 4111.241 ELASTIC PLATE
14 4032.568 HANDLE FRAME
15 4260.100 TANK CAP
16 4290.213 TANK FILTER
17 4100.632 DRAIN PLUG
18 4032.564 FOOT FRAME
19 4111.057 PLUG
20 4032.536 POWER CORD HOOK
21 4032.094 WHEEL Ø 250
22 4111.480 WHEEL PLUG
23 4111.072 WHEEL HOLDER Ø 20
24 4032.566 AXLE
25 4033.242 FUEL TANK
26 4032.558 ELECTR. COMPONENTS DRAWER PANEL
27 4033.095 BASE
28 4032.560 SIDE PANEL
29 4032.550 LOWER BODY
30 4033.188 COMBUSTION CHAMBER
31 4031.659 OUTLET CONE
32 4031.068 CONN. STRAIGHT 1/4"
33 4031.067 PIPE CONNECTION 1/4"
34 4031.062 FUEL PIPE PUMP-TANK
35 4031.063 FUEL PIPE TANK-FILTER
36 4031.061 FUEL PIPE FILTER-PUMP
37 4033.090 FILTER CARTIDGE 3/8"
38 4111.116 OR KIT FILTER
39 4031.494 FILTER CARTIDGE
40 4032.437 FILTER SUPPORT
41 S/R DOUBLE SCREW
43 4160.646 PROTECTION CABLE
44 4033.257 PLASTIX BOX
45 4110.490 HT CABLE
46 4033.256 POWER CORD TRANSFORMATOR HT
47 4031.541 TRANSFORMER HT
48 4033.249 CONTROL BASE
49 4032.774 CONTROL BOX
50 4160.639 POP RIVET 4 WAY
51 4111.032 RELAY
52 4111.040 FUSE
53 4033.301 FUSE HOLDER
54 4033.248 FRONTAL CONTROLS PANEL
55 4033.254 PANEL LABEL
56 4100.656 LOCKNUT
57 4150.528 STRAIN RELIEF BUSHING
58 4033.253 POWER CORD SCHUKO
58A 4033.252 POWER CORD NEW ZEALAND
58B 4033.302 POWER CORD UK
59 4162.467 THERMOSTAT CAP
60 4161.400 CONNECTION PLUG
61 4160.647 THERMOSTAT SOCKET 90°
62 4260.105 FUEL GAUGE
63 4165.204 ROCKER SWITCH
64 4033.251 BOARD BUTTON CAP
71 4111.081 COUPLING
72 4111.042 PUMP
73 4161.501 CONN. STRAIGHT 1/8"
74 4033.198 ELBOW 1/8"
75 4033.186 OIL SUPPLY PIPE
76 4033.311 PUMP POWER CORD
77 4033.246 PHOTOCELL
80 4033.034 BURNER FLANGE
81 4031.025 NOZZLE
82 4033.071 TURBO DISC
83 4032.454 M6 NUT
84 4032.545 AIR REGOLATION FLAP
85 4031.047 LIMIT THERMOSTAT
86 4111.826 ELECTRODE



Szám Cikkszám Cikknév                              Rev. F Sept. 2015
1 4032.546 UPPER BODY
2 4032.548 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4032.557 INLET GRILLE
5 4032.371 MOTOR
6 4033.030 FAN
7 4032.554 AIR FLAP
8 4104.170 CLIP NUT
9 4111.056 PROTECTION CLABLE
10 4032.555 MOTOR FLANGE
12 4160.646 PROTECTION CABLE
13 4111.241 ELASTIC PLATE
14 4032.568 HANDLE FRAME
15 4260.100 TANK CAP
16 4290.213 TANK FILTER
17 4100.632 DRAIN PLUG
18 4032.564 FOOT FRAME
19 4111.057 PLUG
20 4032.536 POWER CORD HOOK
21 4032.094 WHEEL Ø 250
22 4111.480 WHEEL PLUG
23 4111.072 WHEEL HOLDER Ø 20
24 4032.566 AXLE
25 4033.242 FUEL TANK
26 4032.558 ELECTR. COMPONENTS DRAWER PANEL
27 4033.095 BASE
28 4032.560 SIDE PANEL
29 4032.550 LOWER BODY
30 4033.188 COMBUSTION CHAMBER
31 4031.659 OUTLET CONE
32 4031.068 CONN. STRAIGHT 1/4"
33 4031.067 PIPE CONNECTION 1/4"
34 4031.062 FUEL PIPE PUMP-TANK
35 4031.063 FUEL PIPE TANK-FILTER
36 4031.061 FUEL PIPE FILTER-PUMP
37 4033.090 FILTER CARTIDGE 3/8"
38 4111.116 OR KIT FILTER
39 4031.494 FILTER CARTIDGE
40 4032.437 FILTER SUPPORT
41 4031.064 DOUBLE SCREW
43 4160.646 PROTECTION CABLE
44 4033.257 PLASTIX BOX
45 4110.490 HT CABLE
46 4033.256 POWER CORD TRANSFORMATOR HT
47 4031.541 TRANSFORMER HT
48 4033.249 CONTROL BASE
49 4033.330 CONTROL BOX
50 4160.639 POP RIVET 4 WAY
51 4111.032 RELAY
52 4111.040 FUSE
53 4033.301 FUSE HOLDER
54 4033.248 FRONTAL CONTROLS PANEL
55 4033.254 PANEL LABEL
56 4100.656 LOCKNUT
57 4150.528 STRAIN RELIEF BUSHING
58 4033.253 POWER CORD SCHUKO
58A 4033.252 POWER CORD NEW ZEALAND
58B 4033.302 POWER CORD UK
59 4162.467 THERMOSTAT CAP
60 4161.400 CONNECTION PLUG
61 4160.647 THERMOSTAT SOCKET 90°
62 4260.105 FUEL GAUGE
63 4165.204 ROCKER SWITCH
64 4033.251 BOARD BUTTON CAP
71 4111.081 COUPLING
72 4111.042 PUMP
73 4161.501 CONN. STRAIGHT 1/8"
74 4033.198 ELBOW 1/8"
75 4033.186 OIL SUPPLY PIPE
76 4033.311 PUMP POWER CORD
77 4033.246 PHOTOCELL
80 4033.034 BURNER FLANGE
81 4031.025 NOZZLE
82 4033.071 TURBO DISC
83 4032.454 M6 NUT
84 4032.545 AIR REGOLATION FLAP
85 4031.047 LIMIT THERMOSTAT
86 4111.826 ELECTRODE

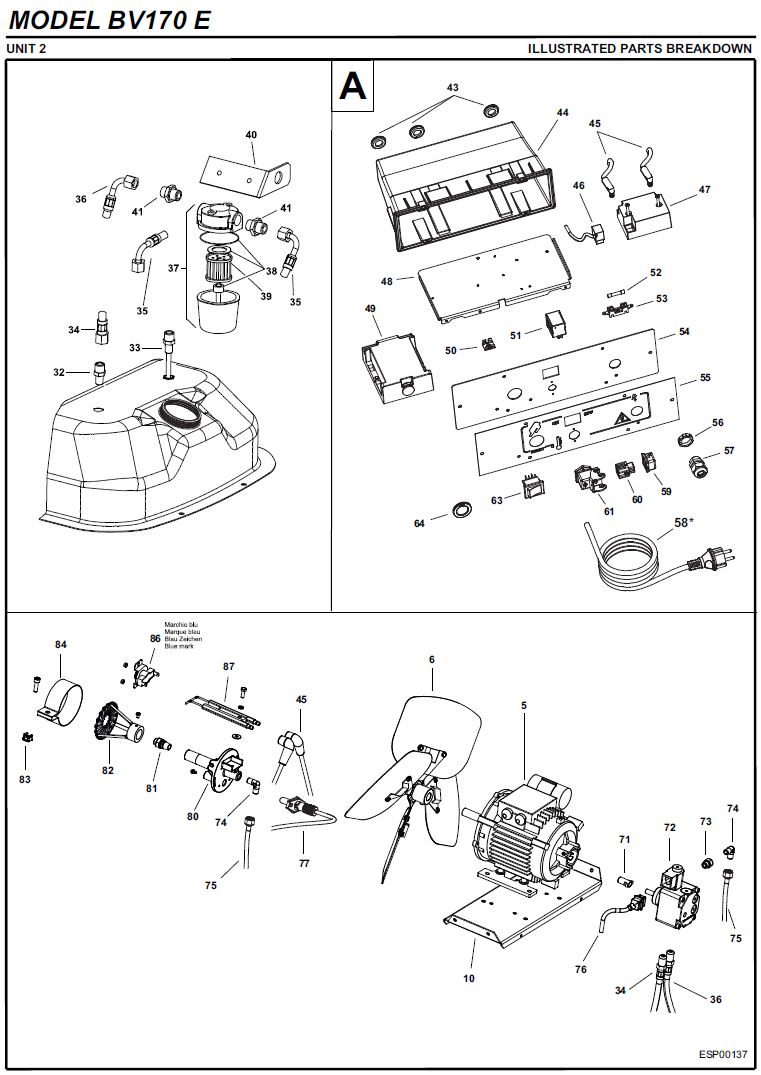

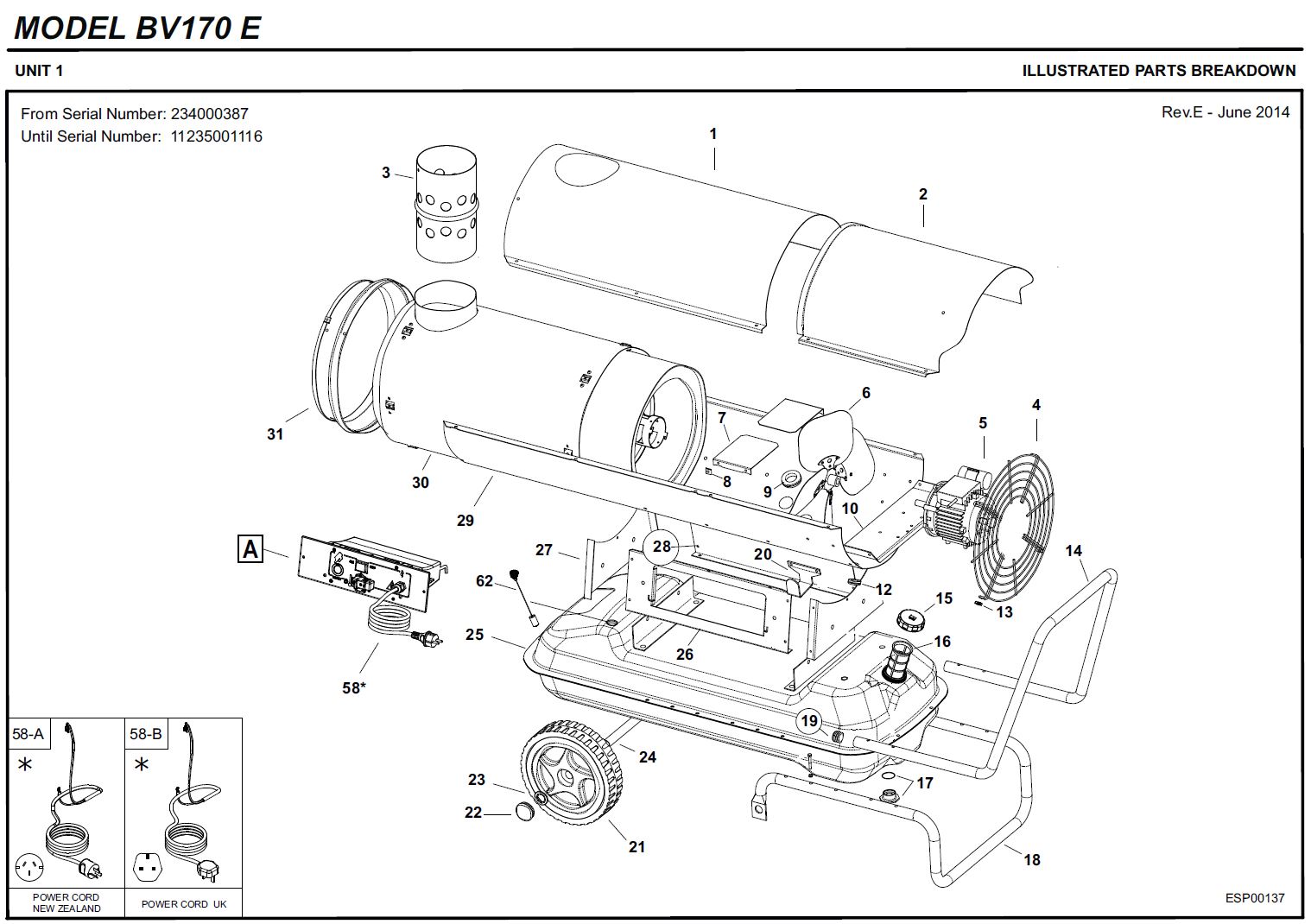

Szám Cikkszám Cikknév                              Rev. E June 2014
1 4032.546 UPPER BODY
2 4032.548 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4032.557 INLET GRILLE
5 4032.371 MOTOR
6 4033.030 FAN
7 4032.554 AIR FLAP
8 4104.170 CLIP NUT
9 4111.056 PROTECTION CLABLE
10 4032.555 MOTOR FLANGE
12 4160.646 PROTECTION CABLE
13 4111.241 ELASTIC PLATE
14 4032.568 HANDLE FRAME
15 4260.100 TANK CAP
16 4290.083 TANK FILTER
17 4100.632 DRAIN PLUG
18 4032.564 FOOT FRAME
19 4111.057 PLUG
20 4032.536 POWER CORD HOOK
21 4032.094 WHEEL Ø 250
22 4111.480 WHEEL PLUG
23 4111.072 WHEEL HOLDER Ø 20
24 4032.566 AXLE
25 4033.242 FUEL TANK
26 4032.558 ELECTR. COMPONENTS DRAWER PANEL
27 4033.095 BASE
28 4032.560 SIDE PANEL
29 4032.550 LOWER BODY
30 4033.188 COMBUSTION CHAMBER
31 4031.659 OUTLET CONE
32 4031.068 CONN. STRAIGHT 1/4"
33 4031.067 PIPE CONNECTION 1/4"
34 4031.062 FUEL PIPE PUMP-TANK
35 4031.063 FUEL PIPE TANK-FILTER
36 4031.061 FUEL PIPE FILTER-PUMP
37 4033.090 FILTER CARTIDGE 3/8"
38 4111.116 OR KIT FILTER
39 4031.494 FILTER CARTIDGE
40 4032.437 FILTER SUPPORT
41 4031.064 DOUBLE SCREW
43 4160.646 PROTECTION CABLE
44 4033.257 PLASTIX BOX
45 4110.490 HT CABLE
46 4033.256 POWER CORD TRANSFORMATOR HT
47 4031.541 TRANSFORMER HT
48 4033.249 CONTROL BASE
49 4033.330 CONTROL BOX
50 4160.639 POP RIVET 4 WAY
51 4111.032 RELAY
52 4111.040 FUSE
53 4033.301 FUSE HOLDER
54 4033.248 FRONTAL CONTROLS PANEL
55 4033.254 PANEL LABEL
56 4100.656 LOCKNUT
57 4150.528 STRAIN RELIEF BUSHING
58 4033.253 POWER CORD SCHUKO
58A 4033.252 POWER CORD NEW ZEALAND
58B 4033.302 POWER CORD UK
59 4162.467 THERMOSTAT CAP
60 4161.400 CONNECTION PLUG
61 4160.647 THERMOSTAT SOCKET 90°
62 4260.105 FUEL GAUGE
63 4165.204 ROCKER SWITCH
64 4033.251 BOARD BUTTON CAP
71 4111.081 COUPLING
72 4111.042 PUMP
73 4161.501 CONN. STRAIGHT 1/8"
74 4033.198 ELBOW 1/8"
75 4033.186 OIL SUPPLY PIPE
76 4033.087 PUMP POWER CORD
77 4033.246 PHOTOCELL
80 4033.034 BURNER FLANGE
81 4031.025 NOZZLE
82 4033.071 TURBO DISC
83 4032.454 M6 NUT
84 4032.545 AIR REGOLATION FLAP
85 4031.047 LIMIT THERMOSTAT
86 4111.826 ELECTRODE

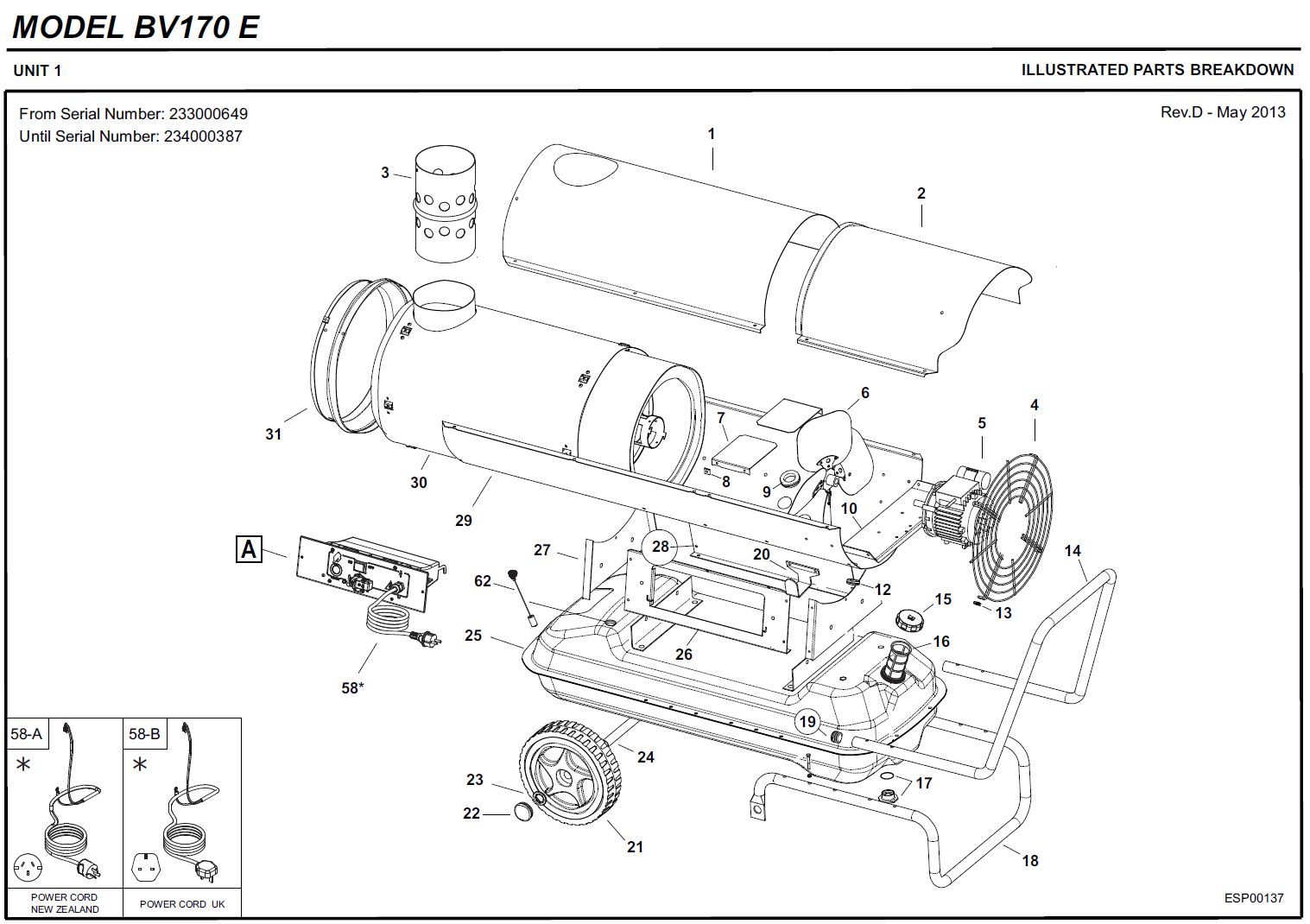

Szám Cikkszám Cikknév                              Rev. D May 2013
1 4032.546 UPPER BODY
2 4032.548 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4032.557 INLET GRILLE
5 4032.371 MOTOR
6 4033.030 FAN
7 4032.554 AIR FLAP
8 4104.170 CLIP NUT
9 4111.056 PROTECTION CLABLE
10 4032.555 MOTOR FLANGE
12 4160.646 PROTECTION CABLE
13 4111.241 ELASTIC PLATE
14 4032.568 HANDLE FRAME
15 4260.100 TANK CAP
16 4290.083 TANK FILTER
17 4100.632 DRAIN PLUG
18 4032.564 FOOT FRAME
19 4111.057 PLUG
20 4032.536 POWER CORD HOOK
21 4032.094 WHEEL Ø 250
22 4111.480 WHEEL PLUG
23 4111.072 WHEEL HOLDER Ø 20
24 4032.566 AXLE
25 4033.242 FUEL TANK
26 4032.558 ELECTR. COMPONENTS DRAWER PANEL
27 4033.095 BASE
28 4032.560 SIDE PANEL
29 4032.550 LOWER BODY
30 4033.188 COMBUSTION CHAMBER
31 4031.659 OUTLET CONE
32 4031.068 CONN. STRAIGHT 1/4"
33 4031.067 PIPE CONNECTION 1/4"
34 4031.062 FUEL PIPE PUMP-TANK
35 4031.063 FUEL PIPE TANK-FILTER
36 4031.061 FUEL PIPE FILTER-PUMP
37 4033.090 FILTER CARTIDGE 3/8"
38 4111.116 OR KIT FILTER
39 4031.494 FILTER CARTIDGE
40 4032.437 FILTER SUPPORT
41 4031.064 DOUBLE SCREW
43 4160.646 PROTECTION CABLE
44 4033.257 PLASTIX BOX
45 4110.490 HT CABLE
46 4033.256 POWER CORD TRANSFORMATOR HT
47 4106.238 TRANSFORMER HT
48 4033.249 CONTROL BASE
49 4033.250 CONTROL BOX
50 4160.639 POP RIVET 4 WAY
51 4111.032 RELAY
52 4111.040 FUSE
53 4033.301 FUSE HOLDER
54 4033.248 FRONTAL CONTROLS PANEL
55 4033.254 PANEL LABEL
56 4100.656 LOCKNUT
57 4150.528 STRAIN RELIEF BUSHING
58 4033.253 POWER CORD SCHUKO
58A 4033.252 POWER CORD NEW ZEALAND
58B 4033.302 POWER CORD UK
59 4162.467 THERMOSTAT CAP
60 4161.400 CONNECTION PLUG
61 4160.647 THERMOSTAT SOCKET 90°
62 4260.105 FUEL GAUGE
63 4165.204 ROCKER SWITCH
64 4033.251 BOARD BUTTON CAP
71 4111.081 COUPLING
72 4111.042 PUMP
73 4161.501 CONN. STRAIGHT 1/8"
74 4033.198 ELBOW 1/8"
75 4033.186 OIL SUPPLY PIPE
76 4033.087 PUMP POWER CORD
77 4033.246 PHOTOCELL
80 4033.034 BURNER FLANGE
81 4031.025 NOZZLE
82 4033.071 TURBO DISC
83 4032.454 M6 NUT
84 4032.545 AIR REGOLATION FLAP
85 4031.047 LIMIT THERMOSTAT
86 4111.826 ELECTRODE

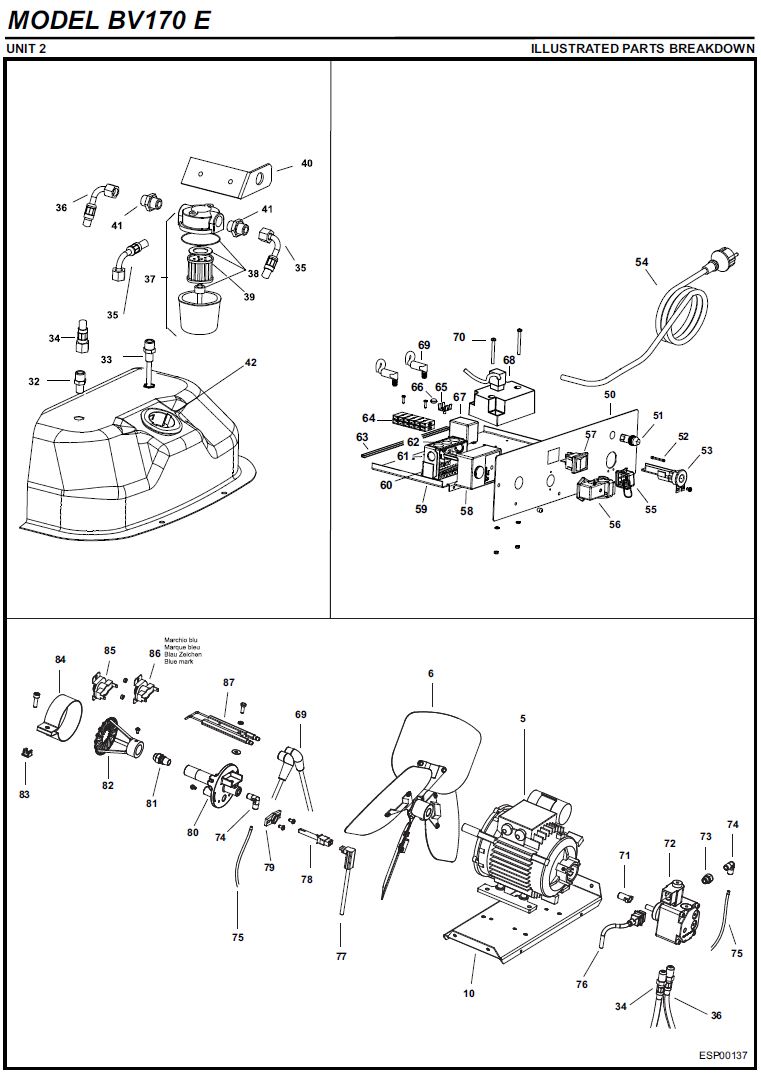

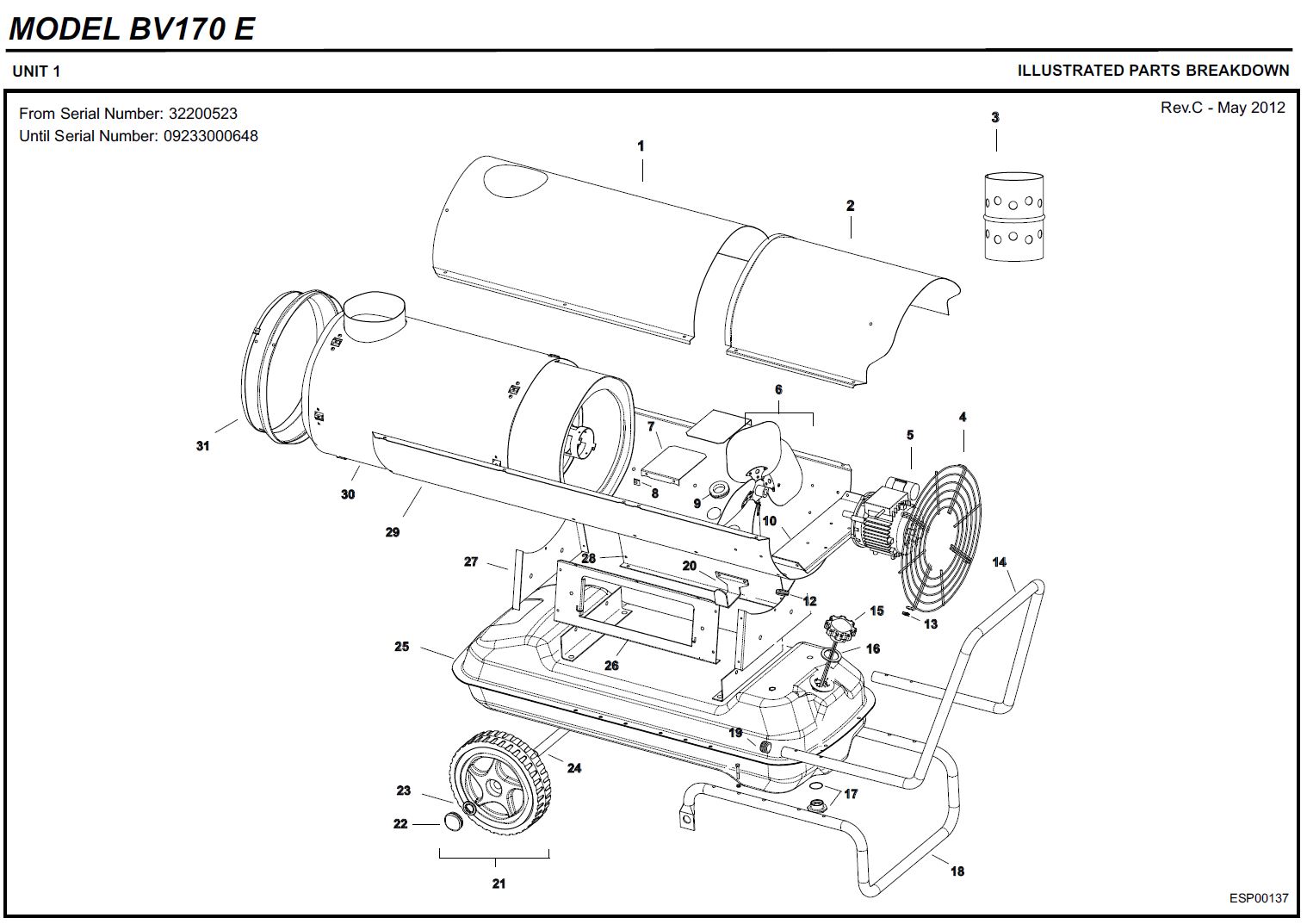

Szám Cikkszám Cikknév                              Rev. C May 2012
1 4032.546 UPPER BODY
2 4032.548 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4032.557 INLET GRILLE
5 4032.371 MOTOR 2P 230V/50 450 W
6 4033.030 FAN
7 4032.554 AIR FLAP
8 4104.170 CLIP NUT
9 4111.056 PROTECTION CLABLE
10 4032.555 MOTOR FLANGE
12 4160.646 PROTECTION CABLE
13 4111.241 ELASTIC PLATE
14 4032.568 HANDLE FRAME
15 4032.475 FUEL LEVEL PROBE
16 4032.537 TANK PLUG SEAL
17 4100.632 DRAIN PLUG
18 4032.564 FOOT FRAME
19 4111.057 PLUG
20 4032.536 POWER CORD HOOK
21 4032.094 WHEEL Ø 250
22 4111.480 WHEEL PLUG
23 4111.072 WHEEL HOLDER Ø 20
24 4032.566 AXLE
25 4033.091 FUEL TANK
26 4032.558 ELECTR. COMPONENTS DRAWER PANEL
27 4033.095 BASE
28 4032.560 SIDE PANEL
29 4032.550 LOWER BODY
30 4033.188 COMBUSTION CHAMBER
31 4032.544 OUTLET CONE
32 4031.068 CONN. STRAIGHT 1/4"
33 4031.067 PIPE CONNECTION 1/4"
34 4031.062 FUEL PIPE PUMP-TANK
35 4031.063 FUEL PIPE TANK-FILTER
36 4031.061 FUEL PIPE FILTER-PUMP
37 4033.090 FILTER CARTIDGE 3/8"
38 4111.116 OR KIT FILTER
39 4031.494 FILTER CARTIDGE
40 4032.437 FILTER SUPPORT
41 4031.064 DOUBLE SCREW
42 4032.472 NECK PLASTIC FILTER
50 4032.446 ELECTR. COMPONENTS DRAWER
51 4117.058 PILOT LAMP 230V
52 4111.040 FUSE (6,3X32) 10A
53 4111.038 CABLE FASTENER
54 4111.153 POWER CORD
55 4162.467 THERMOSTAT PLUG
56 4111.119 PLATE PLUG
57 4160.637 SWITCH
58 4110.968 CONTROL BOX
59 4032.448 ELECTR. COMPONENTS BASE
60 4032.499 CONTROL BOX SUPPORT
61 4110.969 CONTROL BOX BASE
62 4110.967 PG PLATE
63 4110.155 EDGE LINER
64 4111.033 TERMINAL BOARD
65 4160.639 POP RIVET
66 4032.450 PLASTIC PIN
67 4111.032 RELAY FINDER
68 4111.890 KIT TRANSFORMER
69 4110.490 H.T. CABLE
70 4160.421 M4 SCREW
71 4111.081 COUPLING SIMEL
72 4111.042 PUMP DANFOSS
73 4161.501 CONN. STRAIGHT 1/8"
74 4033.198 ELBOW 1/8"
75 4033.186 OIL SUPPLY PIPE
76 4033.087 PUMP POWER CORD
77 4110.970 PHOTOCELL CONN. CLABE
78 4110.966 PHOTOCELL
79 4111.076 PHOTOCELL BLOCK BRACKET
80 4033.034 BURNER FLANGE
81 4031.025 NOZZLE
82 4033.071 TURBO DISC
83 4032.454 M6 NUT
84 4032.545 AIR REGOLATION FLAP
85 4031.047 LIMIT THERMOSTAT
86 4111.826 ELECTRODE

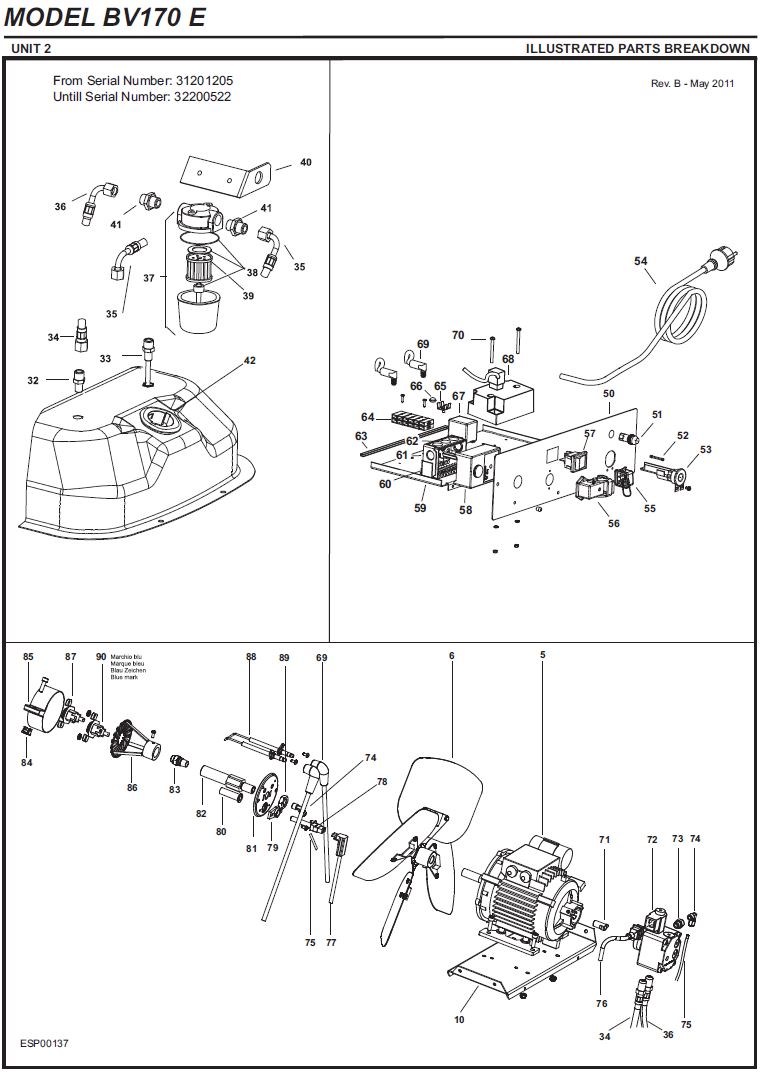

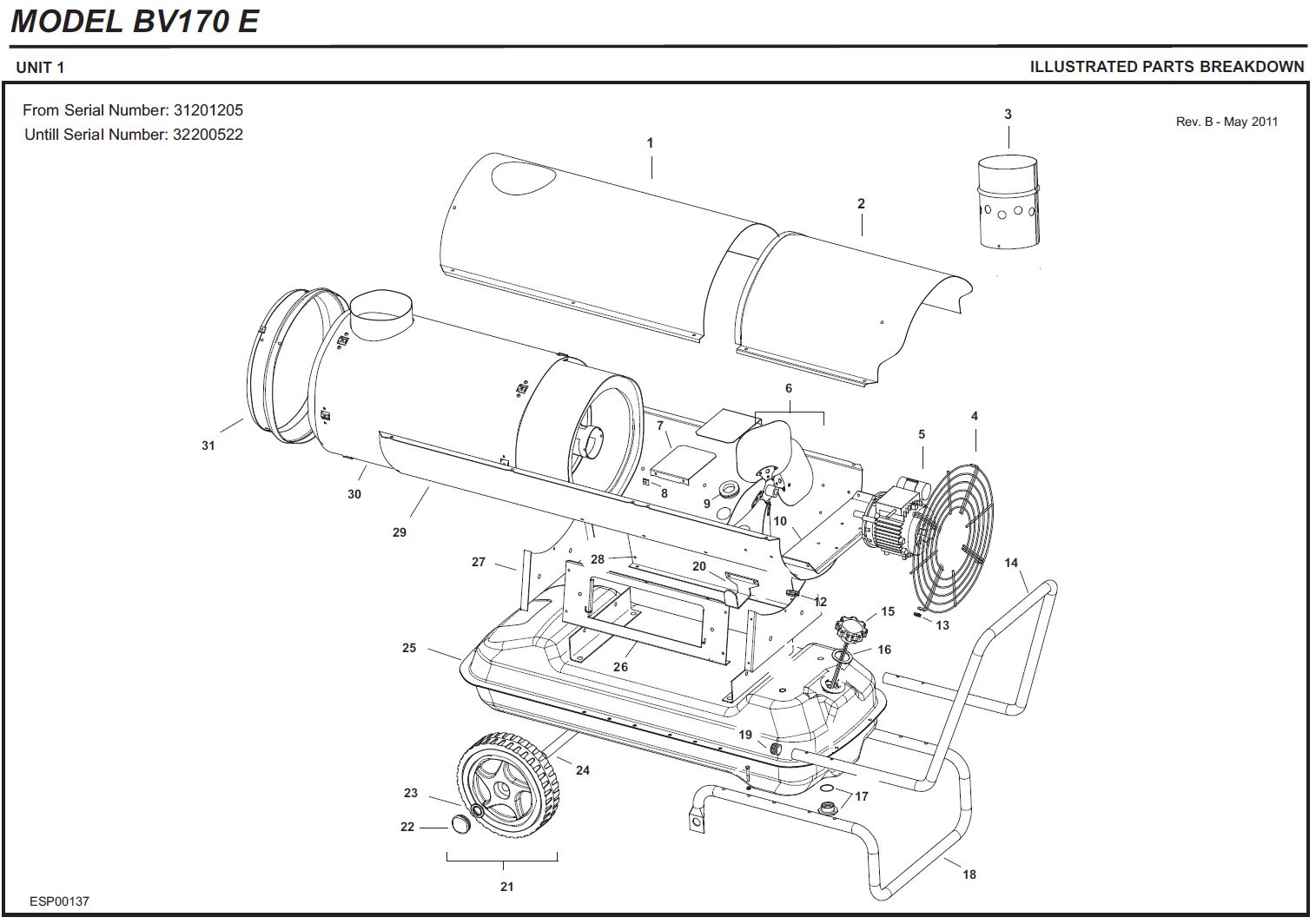

Szám Cikkszám Cikknév                              Rev. B May 2011
1 4032.546 UPPER BODY
2 4032.548 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4032.557 INLET GRILLE
5 4032.371 MOTOR 2P 230V/50 450 W
6 4033.030 FAN
7 4032.554 AIR FLAP
8 4104.170 CLIP NUT
9 4111.056 PROTECTION CABLE
10 4032.555 MOTOR FLANGE
12 4160.646 PROTECTION CABLE
13 4111.241 ELASTIC PLATE
14 4032.568 HANDLE FRAME
15 4032.475 FUEL LEVEL PROBE
16 4032.537 TANK PLUG SEAL
17 4100.632 DRAIN PLUG
18 4032.564 FOOT FRAME
19 4111.057 PLUG
20 4032.536 POWER CORD HOOK
21 4032.094 WHEEL Ø 250
22 4111.480 WHEEL PLUG
23 4111.072 WHEEL HOLDER Ø 20
24 4032.566 AXLE
25 4033.091 FUEL TANK
26 4032.558 ELECTR. COMPONENTS DRAWER PANEL
27 4033.095 BASE
28 4032.560 SIDE PANEL
29 4032.550 LOWER BODY
30 4032.541 COMBUSTION CHAMBER
31 4032.544 OUTLET CONE
32 4031.068 CONN. STRAIGHT 1/4"
33 4031.067 PIPE CONNECTION 1/4"
34 4031.062 FUEL PIPE PUMP-TANK
35 4031.063 FUEL PIPE TANK-FILTER
36 4031.061 FUEL PIPE FILTER-PUMP
37 4033.090 FILTER CARTIDGE 3/8"
38 4111.116 OR KIT FILTER
39 4031.494 FILTER CARTIDGE
40 4032.437 FILTER SUPPORT
41 4031.064 DOUBLE SCREW
42 4032.472 NECK PLASTIC FILTER
50 4032.446 ELECTR. COMPONENTS DRAWER
51 4117.058 PILOT LAMP 230V
52 4111.040 FUSE (6,3X32) 10A
53 4111.038 CABLE FASTENER
54 4111.153 POWER CORD
55 4162.467 THERMOSTAT PLUG
56 4111.119 PLATE PLUG
57 4160.637 SWITCH
58 4110.968 CONTROL BOX
59 4032.448 ELECTR. COMPONENTS BASE
60 4032.499 CONTROL BOX SUPPORT
61 4110.969 CONTROL BOX BASE
62 4110.967 PG PLATE
63 4110.155 EDGE LINER
64 4111.033 TERMINAL BOARD
65 4160.639 POP RIVET
66 4032.450 PLASTIC PIN
67 4111.032 RELAY FINDER
68 4111.890 KIT TRANSFORMER
69 4110.490 H.T. CABLE
70 4160.421 M4 SCREW
71 4111.081 COUPLING SIMEL
72 4111.042 PUMP DANFOSS
73 4161.501 CONN. STRAIGHT 1/8"
74 4161.140 ELBOW 1/8"
75 4111.049 OIL SUPPLY PIPE
76 4033.087 PUMP POWER CORD
77 4110.970 PHOTOCELL CONN. CLABE
78 4110.966 PHOTOCELL
79 4111.076 PHOTOCELL BLOCK BRACKET
80 4032.406 PHOTOCELL SUPPORT
81 4032.574 BURNER FLANGE
82 4032.403 NOZZLE SUPPORT
83 4031.025 NOZZLE 1,00 GHP 80°
84 4032.454 M6 NUT
85 4032.545 AIR REGOLATION FLAP
86 4033.071 TURBO DISC
87 4031.045 FAN THERMOSTAT
88 4033.057 ELECTRODE
89 4032.407 M14 NUT
90 4031.047 LIMIT THERMOSTAT

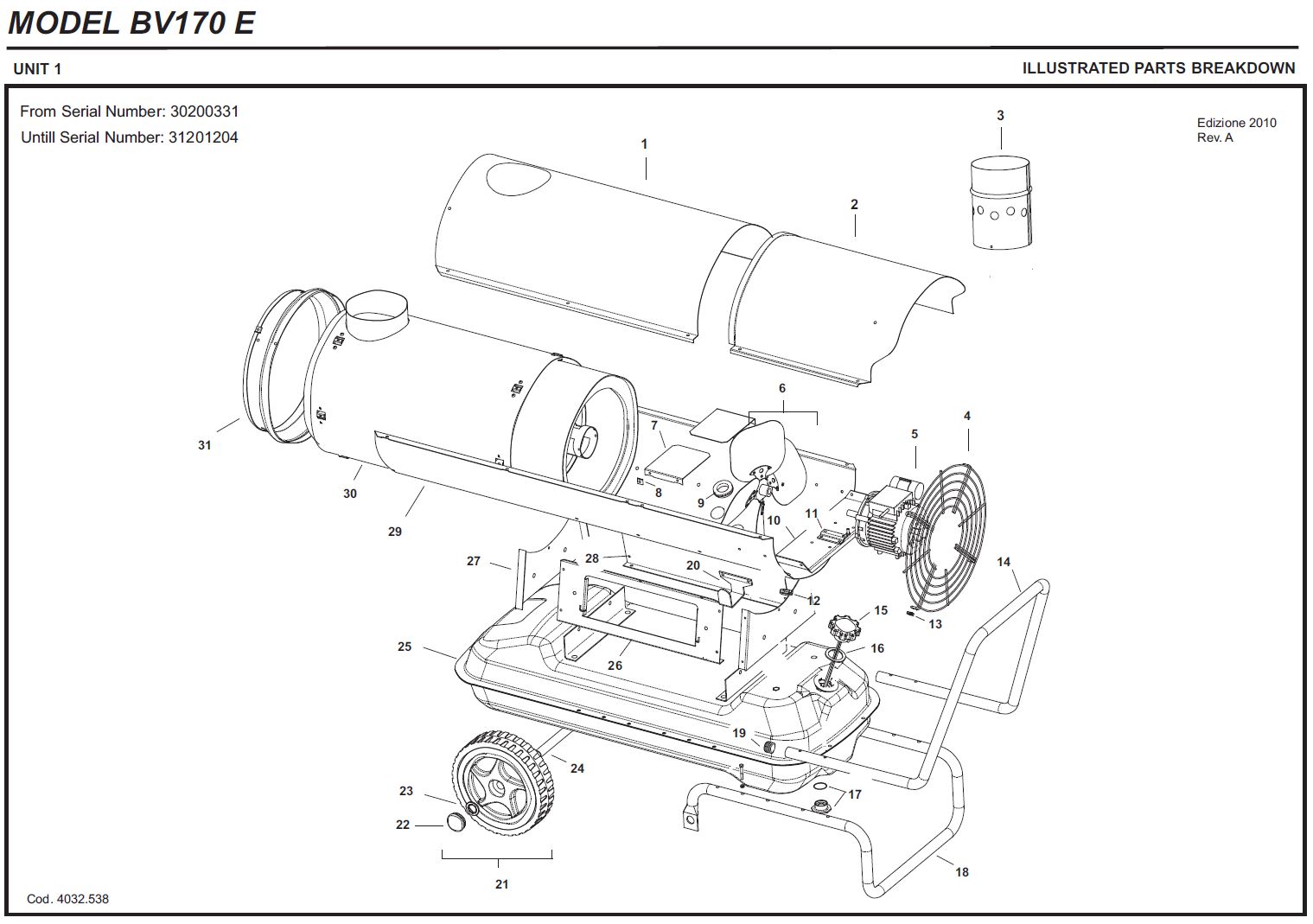

Szám Cikkszám Cikknév                              Rev. A 2010
1 4032.546 UPPER BODY
2 4032.548 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4032.557 INLET GRILLE
5 4032.594 MOTOR 2P 230V/50 IP43
6 4033.030 FAN
7 4032.554 AIR FLAP
8 4104.170 CLIP NUT
9 4111.056 PROTECTION CABLE
10 4032.555 MOTOR FLANGE
11 4032.519 MOTOR FLANGE SUPPORT
12 4160.646 PROTECTION CABLE
13 4111.241 ELASTIC PLATE
14 4032.568 HANDLE FRAME
15 4032.475 FUEL LEVEL PROBE
16 4032.537 TANK PLUG SEAL
17 4100.632 DRAIN PLUG
18 4032.564 FOOT FRAME
19 4111.057 PLUG
20 4032.536 POWER CORD HOOK
21 4032.094 WHEEL Ø 250
22 4111.480 WHEEL PLUG
23 4111.072 WHEEL HOLDER Ø 20
24 4032.566 AXLE
25 4032.543 FUEL TANK
26 4032.558 ELECTR. COMPONENTS DRAWER PANEL
27 4032.562 BASE
28 4032.560 SIDE PANEL
29 4032.550 LOWER BODY
30 4032.541 COMBUSTION CHAMBER
31 4032.544 OUTLET CONE
32 4031.068 NIPPLES
33 4031.067 PIPE CONNECTION 1/4"
34 4031.062 FUEL PIPE PUMP-TANK
35 4031.063 FUEL PIPE TANK-FILTER
36 4031.061 FUEL PIPE FILTER-PUMP
37 4031.070 FILTER CARTIDGE 3/8"
38 4111.116 OR KIT FILTER
39 4031.015 FILTER CARTIDGE
40 4032.437 FILTER SUPPORT
41 4031.064 DOUBLE SCREW
50 4032.446 ELECTR. COMPONENTS DRAWER
51 4117.058 PILOT LAMP 230V
52 4111.040 FUSE (6,3X32) 10A
53 4111.038 CABLE FASTENER
54 4111.153 POWER CORD
55 4162.467 THERMOSTAT PLUG
56 4111.119 PLATE PLUG
57 4160.637 SWITCH
58 4110.968 CONTROL BOX
59 4032.448 ELECTR. COMPONENTS BASE
60 4032.499 CONTROL BOX SUPPORT
61 4110.969 CONTROL BOX BASE
62 4110.967 PG PLATE
63 4110.155 EDGE LINER
64 4111.033 TERMINAL BOARD
65 4160.639 POP RIVET
66 4032.450 PLASTIC PIN
67 4111.032 RELAY FINDER
68 4031.541 TRANSFORMER
69 4110.491 TRANSFORMER POWER CORD
70 4110.490 H.T. CABLE
71 4160.421 M4 SCREW
75 4111.081 COUPLING SIMEL
76 4032.093 PUMP DANFOSS
77 4161.501 CONN. STRAIGHT 1/8"
78 4161.140 CONNECTION 90° 1/8"
79 4111.049 OIL SUPPLY PIPE
81 4032.110 POWER CORD SOLENOID SPOOL
82 4110.970 PHOTOCELL CONN. CABLE
83 4110.966 PHOTOCELL
84 4111.076 PHOTOCELL BLOCK BRACKET
85 4032.406 PHOTOCELL SUPPORT
86 4032.574 BURNER FLANGE
87 4032.403 NOZZLE SUPPORT
88 4031.025 NOZZLE 1,00 GHP 80°
89 4032.454 M6 NUT
90 4032.545 AIR REGOLATION FLAP
91 4032.570 TURBO DISC
92 4031.045 FAN THERMOSTAT
93 4032.785 ELECTRODE
94 4032.407 CONN. STRAIGHT M14X6
95 4160.968 CONN. STRAIGHT 1/8"
96 4102.535 SOLENOID SPOOL 230V/50Hz
97 4031.047 LIMIT THERMOSTAT

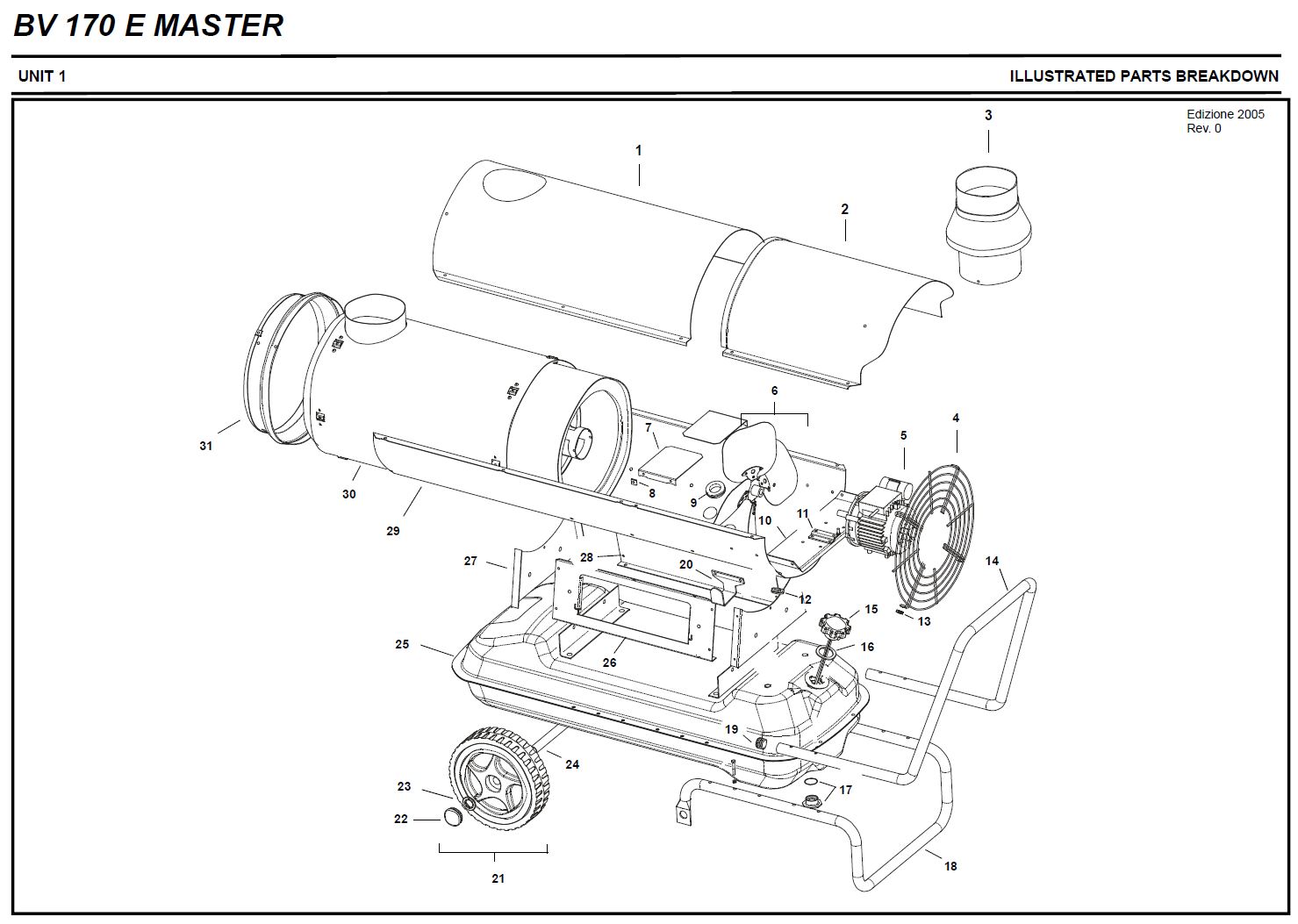

Szám Cikkszám Cikknév                              Rev. 0 2005
1 S/R UPPER BODY
2 S/R UPPER BODY - MOBILE
3 4032.534 CHIMNEY
4 4032.557 INLET GRILLE
5 4032.594 MOTOR 250 W
6 4032.593 FAN
7 4032.554 AIR FLAP
8 4111.170 CLIP NUT
9 4111.056 PROTECTION CABLE
10 4032.555 MOTOR FLANGE SUPPORT
11 4032.519 MOTOR FLANGE
12 4160.646 PROTECTION CABLE
13 4111.241 ELASTIC PLATE
14 4032.568 HANDLE FRAME
15 4032.475 FUEL LEVEL PROBE
16 4032.537 TANK PLUG SEAL
17 4100.632 DRAIN PLUG
18 4032.564 FOOT FRAME
19 4111.057 PLUG
20 4032.536 POWER CORD HOOK
21 4032.094 WHEEL Ø 250
22 4111.080 WHEEL PLUG
23 4111.072 WHEEL HOLDER Ø 20
24 4032.566 AXLE
25 4032.543 FUEL TANK
26 4032.558 ELECTR: COMPONENTS DRAWER PANEL
27 S/R BASE
28 S/R SIDE PANEL
29 S/R LOWER BODY
30 4032.541 COMBUSTION CHAMBER
31 4032.544 OUTLET CONE
32 4032.488 CONN. STRAIGHT M10
33 4032.092 PIPE CONNECTION M10
34 4032.597 FUEL PIPE PUMP-TANK
35 4032.595 FUEL PIPE TANK-FILTER
36 4031.803 CONNECTION 90° 3/8"
37 4111.045 FILTER CARTIDGE 3/8"
38 4111.116 OR KIT FILTER
39 4031.015 FILTER CARTIDGE
40 4032.437 FILTER SUPPORT
41 4031.802 DOUBLE SCREW
42 4031.800 CONN. STRAIGHT 3/8" Mx5
43 4111.273 CONNECTION 90° 1/8"
44 4032.596 FUEL PIPE FILTER PUMP
50 4032.446 ELECTR. COMPONENTS DRAWER
51 4117.058 PILOT LAMP 230V
52 4111.040 FUSE (6,3X32) 10A
53 4111.038 CABLE FASTENER
54 4111.153 POWER CORD HOOK
55 4111.118 THERMOSTAT PLUG
56 4111.119 PLATE PLUG
57 4160.637 SWITCH 16A
58 4110.968 CONTROL BOX
59 4032.448 ELECTR. COMPONENTS BASE
60 4032.499 CONTROL BOX SUPPORT
61 4110.969 CONTROL BOX BASE
62 4110.967 SUPPORT PG PHOTOCELL
63 4110.155 EDGE LINER
64 4111.033 TERMINAL BOARD
65 4160.639 POP RIVET
66 4032.450 PLASTIC PIN
67 4111.032 RELAY FINDER
68 4111.030 TRANSFORMER SUPPORT
69 4031.035 TRANSFORMER
70 4110.971 H.T. CABLE
75 4111.081 COUPLING SIMEL
76 4032.093 PUMP DANFOSS BFP 21-L3L
77 4161.501 CONN. STRAIGHT 1/8"
78 4161.140 ELBOW 1/8"
79 4111.049 OIL SUPPLY PIPE
80 4031.160 CONN. STRAIGHT 1/4"
81 4032.110 POWER CORD SOLENOID SPOOL
82 4110.970 PHOTOCELL CONN. CLABE
83 4110.966 PHOTOCELL
84 4111.076 PHOTOCELL BLOCK BRACKET
85 4032.406 PHOTOCELL SUPPORT
86 4032.574 BURNER FLANGE
87 4032.403 NOZZLE SUPPORT
88 4031.025 NOZZLE 1,00 GHP 80°
89 4032.454 M6 NUT
90 4032.545 AIR REGULATION FLAP
91 4032.570 TURBO DISC
92 4031.045 FAN THERMOSTAT
93 4031.095 ELECTRODE
94 4032.407 M14 NUT
95 4160.968 CONN. STRAIGHT 1/8"
96 4102.535 SOLENOID SPOOL 230V/50Hz
97 4031.047 LIMIT THERMOSTAT



Tulajdonságok
IP védelem
IP44
VTSZ
73229000
Feszültség (V/Hz)
230V/50Hz
Áramerősség (A)
3,5A
Márka
Master
Elektromos motor telj. (W)
800
Nettó súly (kg)
67.00
Bruttó súly (kg)
84.00
Termék méretek (HxSZxM)(mm)
1350x575x1003
Üzemanyagtank (liter)
65
Légáramlás
1800m3/h
Fűtőteljesítmény (kW)
49
Légfúvó nyílás átmérő (mm)
340
Működési idő 1 tank üzemanyag
14
Füstcső átmérő (mm)
150
Üzemanyag-fogyasztás (liter/h)
4,7
Csomagolási méret (HxSZxM)(mm)
1330x650x1000

Helyettesítő termékek

MASTER BV110 hőlégfúvó (kéményes, gázolajos 34kW) BV110
MASTER BV110 hőlégfúvó (kéményes, gázolajos 34kW)
Cikkszám
BV110
Raktáron
Nettó ár:
574 724 Ft
Bruttó ár:
729 900 Ft
db
MASTER BV290 hőlégfúvó (kéményes, gázolajos 85kW) BV290
MASTER BV290 hőlégfúvó (kéményes, gázolajos 85kW)
Cikkszám
BV290
Raktáron
Nettó ár:
865 354 Ft
Bruttó ár:
1 099 000 Ft
db

Opciós termékek

Füstcső MASTER BV110/170/290/310/400/500 (150mmx1m) 4013.243
Füstcső MASTER BV110/170/290/310/400/500 (150mmx1m)
Cikkszám
4013.243
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
29 126 Ft
Bruttó ár:
36 990 Ft
db
Füstcső könyök MASTER BV110/170/290/310/400/500 (150mm) 4013.247
Füstcső könyök MASTER BV110/170/290/310/400/500 (150mm)
Cikkszám
4013.247
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
31 488 Ft
Bruttó ár:
39 990 Ft
db
Kéményfedél MASTER BV110/170/290/310/400/500 (150mm) 4013.249
Kéményfedél MASTER BV110/170/290/310/400/500 (150mm)
Cikkszám
4013.249
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
22 827 Ft
Bruttó ár:
28 990 Ft
db
Üzemanyag-előmelegítő MASTER 4031.120
Üzemanyag-előmelegítő MASTER
Cikkszám
4031.120
Raktáron
Nettó ár:
44 803 Ft
Bruttó ár:
56 900 Ft
db
Gyorscsatlakozó az üzemanyagcsövekhez MASTER 4034.880
Gyorscsatlakozó az üzemanyagcsövekhez MASTER
Cikkszám
4034.880
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
77 087 Ft
Bruttó ár:
97 900 Ft
db
Közgyűrű légvezető csőhöz MASTER BV110/170 (34cm) 4034.890
Közgyűrű légvezető csőhöz MASTER BV110/170 (34cm)
Cikkszám
4034.890
Raktáron
Nettó ár:
43 228 Ft
Bruttó ár:
54 900 Ft
db
Kétcsöves kivezetés MASTER BV110/170 (2x31cm) Új modellekhez 4034.898
Kétcsöves kivezetés MASTER BV110/170 (2x31cm) Új modellekhez
Cikkszám
4034.898
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
141 654 Ft
Bruttó ár:
179 900 Ft
db
Szívóoldali közgyűrű MASTER BV110/170 4100.826
Szívóoldali közgyűrű MASTER BV110/170
Cikkszám
4100.826
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
154 252 Ft
Bruttó ár:
195 900 Ft
db
Szobatermosztát hőlégfúvóhoz MASTER TH5 (3m) 4150.109
Szobatermosztát hőlégfúvóhoz MASTER TH5 (3m)
Cikkszám
4150.109
Raktáron
Nettó ár:
18 102 Ft
Bruttó ár:
22 990 Ft
db
Szobatermosztát hőlégfúvóhoz MASTER TH5 (10m) 4150.112
Szobatermosztát hőlégfúvóhoz MASTER TH5 (10m)
Cikkszám
4150.112
Raktáron
Nettó ár:
29 126 Ft
Bruttó ár:
36 990 Ft
db
Digitális termosztát MASTER THD (5m, 230V/50-60 Hz) 4150.133
Digitális termosztát MASTER THD (5m, 230V/50-60 Hz)
Cikkszám
4150.133
Raktáron
Nettó ár:
78 661 Ft
Bruttó ár:
99 900 Ft
db
Digitális termosztát MASTER THD (10m, 230V/50-60Hz) 4150.134
Digitális termosztát MASTER THD (10m, 230V/50-60Hz)
Cikkszám
4150.134
Raktáron
Nettó ár:
84 173 Ft
Bruttó ár:
106 900 Ft
db
Védőponyva MASTER BV110-170 4514.651
Védőponyva MASTER BV110-170
Cikkszám
4514.651
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
45 591 Ft
Bruttó ár:
57 900 Ft
db
Csőzáró rács MASTER (310 mm) 4515.350
Csőzáró rács MASTER (310 mm)
Cikkszám
4515.350
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
4 559 Ft
Bruttó ár:
5 790 Ft
db
Hajlékony, fekete nejloncső tárolózsákkal MASTER (31 cm x 7,6 m) 4515.360
Hajlékony, fekete nejloncső tárolózsákkal MASTER (31 cm x 7,6 m)
Cikkszám
4515.360
Raktáron
Nettó ár:
58 189 Ft
Bruttó ár:
73 900 Ft
db
Hajlékony, fekete nejloncsövek tárolózsákkal MASTER (34 cm x 7,6 m) 4515.367
Hajlékony, fekete nejloncsövek tárolózsákkal MASTER (34 cm x 7,6 m)
Cikkszám
4515.367
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
66 850 Ft
Bruttó ár:
84 900 Ft
db
Légvezető cső MASTER (31 cm x 7,6 m) 4515.553
Légvezető cső MASTER (31 cm x 7,6 m)
Cikkszám
4515.553
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
52 677 Ft
Bruttó ár:
66 900 Ft
db
Légvezető cső MASTER (35 cm x 7,6 m) 4515.558
Légvezető cső MASTER (35 cm x 7,6 m)
Cikkszám
4515.558
Hamarosan érkezik
Nettó ár:
61 339 Ft
Bruttó ár:
77 900 Ft
db
Légvezető cső MASTER (34 cm x 3 m) 4515.570
Légvezető cső MASTER (34 cm x 3 m)
Cikkszám
4515.570
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
30 630 Ft
Bruttó ár:
38 900 Ft
db
Légvezető cső MASTER (31 cm x 3 m) 4515.572
Légvezető cső MASTER (31 cm x 3 m)
Cikkszám
4515.572
Raktáron
Nettó ár:
29 055 Ft
Bruttó ár:
36 900 Ft
db
Tárolózsák légvezető csőhöz MASTER (31 cm) 4515.592
Tárolózsák légvezető csőhöz MASTER (31 cm)
Cikkszám
4515.592
Raktáron
Nettó ár:
8 654 Ft
Bruttó ár:
10 990 Ft
db
Master szerviz csomag BV170 (2012-től) 4519.004
Master szerviz csomag BV170 (2012-től)
Cikkszám
4519.004
Raktáron
Nettó ár:
21 320 Ft
Bruttó ár:
27 076 Ft
db
