MASTER BV290 hőlégfúvó (kéményes, gázolajos 85kW)

Cikkszám
BV290
Nettó listaár
865 354 Ft / db
Bruttó listaár
1 099 000 Ft / db
Raktáron
Nettó ár:
865 354 Ft
Bruttó ár:
1 099 000 Ft
db

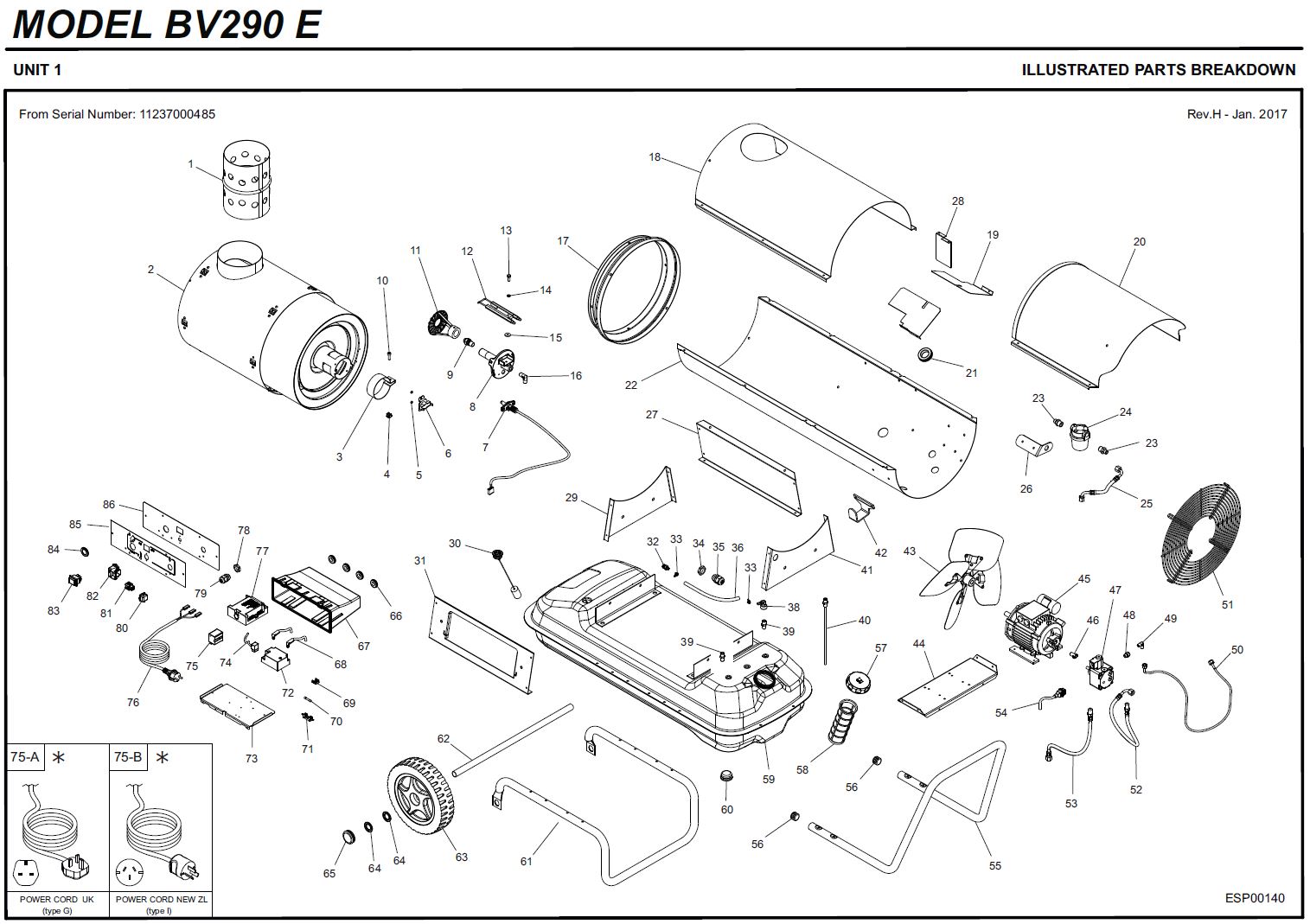

Szám Cikkszám Cikknév                              Rev. H Jan. 2017
1 4032.385 CHIMNEY
2 4033.190 COMBUSTION CHAMBER
3 4032.453 AIR DAMPER
4 4032.454 CAGE NUT
5 4032.692 SPACER
6 4031.047 SAFETY THERMOSTAT
7 4033.246 PHOTOCELL SENSOR
8 4033.059 BURNER HEAD
9 4031.030 NOZZLE
10 4032.455 SCREW
11 4033.071 BURNER HEAD DIFFUSER
12 4111.826 BIFILAR ELECTRODES
13 4110.363 SCREW
14 4110.393 ELASTIC WASHER
15 4110.394 FIBER WASHER
16 4033.198 90° FUEL CONNECTION
17 4032.452 OUTLET CONE
18 4032.456 UPPER SHELL
19 4032.462 AIR DEFLECTOR
20 4033.263 UPPER SHELL - MOBILE
21 4111.056 GASKET
22 4033.264 LOWER SHELL
23 4034.378 STRAIGHT FUEL CONNECTION
24 4033.090 FUEL FILTER
25 4031.063 FUEL PIPE - FILTER TANK
26 4032.437 FILTER BRACKET
27 4032.468 LATERAL PANEL
28 4032.518 UPPER AIR DEFLECTOR
29 4032.470 FRONT PANEL
30 4260.105 FUEL GAUGE
31 4032.558 LATERAL CONTROL PANEL
32 4260.246 BREATH VALVE
33 4100.810 CLIP
34 4100.656 NUT
35 4150.528 STRAIN RELIEF
36 4100.187 RUBBER PIPE
38 4100.192 90° AIR CONNECTION
39 4031.068 STRAIGH CONNECTION
40 4031.067 SUCTION PIPE
41 4034.298 REAR PANEL
42 4032.536 POWER CORD BRACKET
43 4033.019 FAN
44 4032.463 MOTOR SUPPORT
45 4032.370 MOTOR
46 4111.081 MOTOR PUMP COUPLING
47 4033.313 FUEL PUMP
48 4161.501 STRAIGHT FUEL CONNECTION
49 4033.198 90° FUEL CONNECTION
50 4033.186 FUEL FLEXIBLE PIPE
51 4032.465 GRILLE
52 4031.061 FUEL PIPE - PUMP-FILTER
53 4031.062 FUEL PIPE - PUMP-TANK
54 4033.087 PUMP VALVE POWER CORD
55 4032.480 HANDLE
56 4111.057 HANDLE CAP
57 4034.283 TANK CAP
58 4290.213 TANK FILTER
59 4034.295 TANK
60 4100.632 TANK DRAIN CAP
61 4032.476 WHEELS SUPPORT
62 4032.478 WHEELS AXLE
63 4110.978 WHEEL
64 4111.072 BLOCK WASHER
65 4111.480 WHEEL CAP
66 4160.646 GASKET
67 4033.257 PLASTIC BOX
68 4110.490 HIGH TENSION WIRE
69 4160.639 GROUND FASTON
70 4111.040 FUSE
71 4033.301 FUSE HOLDER
72 4031.541 HIGH TENSION TRANSFORMER
73 4033.249 CONTROL PANEL BASE
74 4110.491 HIGH TENSION TRANSFORMER POWER CORD
75 4031.514 RELAY
76 4033.253 POWER CORD SCHUKO
76A 4033.302 POWER CORD UK
76B 4033.252 POWER CORD NEW ZEALAND
77 4032.774 PC-BOARD
78 4100.656 NUT
79 4150.528 STRAIN RELIEF
80 4162.467 THERMOSTAT CAP
81 4161.400 THERMOSTAT PLUG
82 4160.647 THERMOSTAT SOCKET
83 4165.204 SWITCH
84 4033.251 PC-BOARD CAP
85 4033.254 CONTROL PANEL LABEL
86 4033.248 CONTROL PANEL

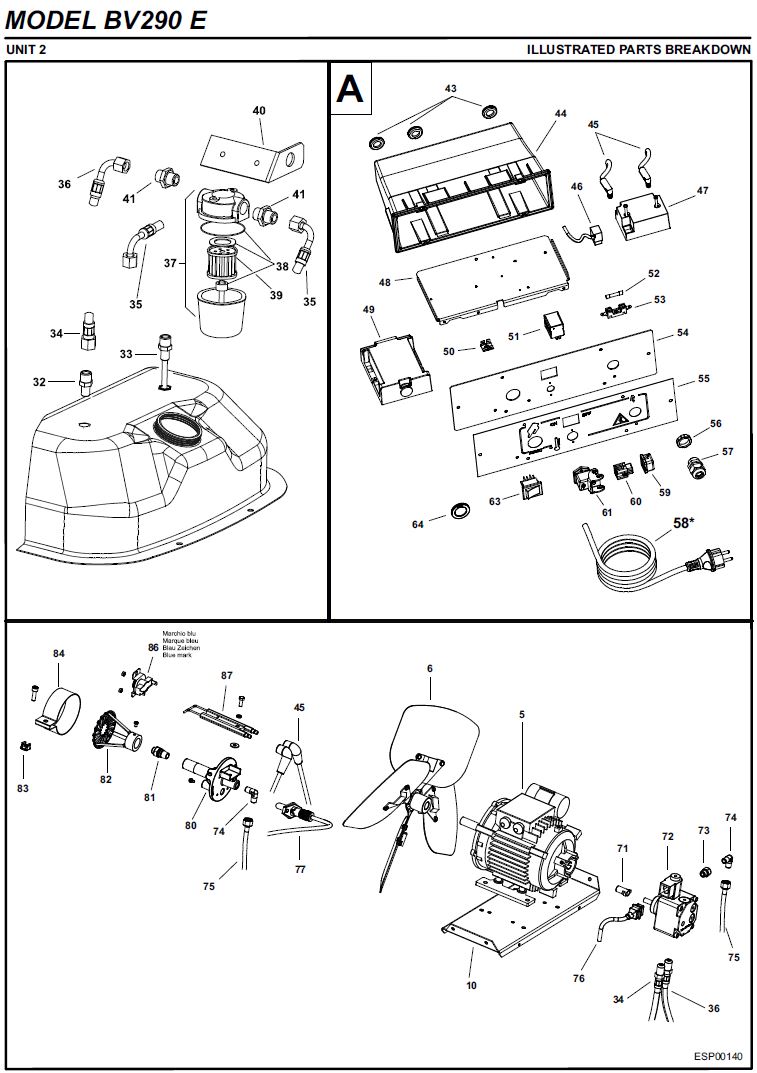

Szám Cikkszám Cikknév                              Rev. G Apr. 2016
1 4032.456 UPPER BODY
2 4032.263 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4032.465 INLET GRILLE
5 4032.370 MOTOR 4P 750 W
6 4033.019 FAN
7 4032.518 AIR FLAP
8 4104.170 CLIP NUT
9 4111.056 PROTECTION CLABLE
10 4032.463 MOTOR FLANGE SUPPORT
11 4032.462 AIR FLAP
12 4160.646 PROTECTION CABLE
13 4111.241 ELASTIC PLATE
14 4032.480 HANDLE FRAME
15 4260.100 TANK CAP
16 4290.213 TANK FILTER
17 4100.632 DRAIN PLUG
18 4032.476 FOOT FRAME
19 4101.151 PROTECTION CABLE
20 4032.536 POWER CORD HOOK
21 4110.978 WHEEL
22 4111.480 WHEEL PLUG
23 4111.072 WHEEL HOLDER
24 4032.566 AXLE
25 4032.478 FUEL TANK
26 4032.466 ELECTR. COMPONENTS DRAWER PANEL
27 4032.470 LATERAL PANEL
28 4032.468 REAR PANEL
29 4033.264 LOWER BODY
30 4033.190 COMBUSTION CHAMBER
31 4033.223 OUTLET CONE
32 4031.068 CONN. STRAIGHT 1/4"
33 4031.067 PIPE CONNECTION 1/4"
34 4031.062 FUEL PIPE PUMP-TANK
35 4031.063 FUEL PIPE TANK-FILTER
36 4031.061 FUEL PIPE FILTER-PUMP
37 4033.090 FILTER CARTIDGE 3/8"
38 4111.116 OR KIT FILTER
39 4031.494 FILTER CARTIDGE
40 4032.437 FILTER SUPPORT
41 S/R DOUBLE SCREW
43 4160.646 PROTECTION CABLE
44 4033.257 PLASTIX BOX
45 4110.490 HT CABLE
46 4033.256 POWER CORD TRANSFORMATOR HT
47 4031.541 TRANSFORMER HT
48 4033.249 CONTROL BASE
49 4032.774 CONTROL BOX
50 4160.639 POP RIVET 4 WAY
51 4111.032 RELAY
52 4111.040 FUSE
53 4033.301 FUSE HOLDER
54 4033.248 FRONTAL CONTROLS PANEL
55 4033.254 PANEL LABEL
56 4100.656 LOCKNUT
57 4150.528 STRAIN RELIEF BUSHING
58 4033.253 POWER CORD SCHUKO
58A 4033.252 POWER CORD NEW ZEALAND
58B 4033.302 POWER CORD UK
59 4162.467 THERMOSTAT CAP
60 4161.400 CONNECTION PLUG
61 4160.647 THERMOSTAT SOCKET 90°
62 4260.105 FUEL GAUGE
63 4165.204 ROCKER SWITCH
64 4033.251 BOARD BUTTON CAP
71 4111.081 COUPLING
72 4033.122 PUMP
73 4161.501 CONN. STRAIGHT 1/8"
74 4033.198 ELBOW 1/8"
75 4033.186 OIL SUPPLY PIPE
76 4033.311 PUMP POWER CORD
77 4033.246 PHOTOCELL
80 4033.059 BURNER FLANGE
81 4031.030 NOZZLE
82 4033.071 TURBO DISC
83 4032.454 M6 NUT
84 4032.453 AIR REGOLATION FLAP
85 4031.047 LIMIT THERMOSTAT
86 4111.826 ELECTRODE

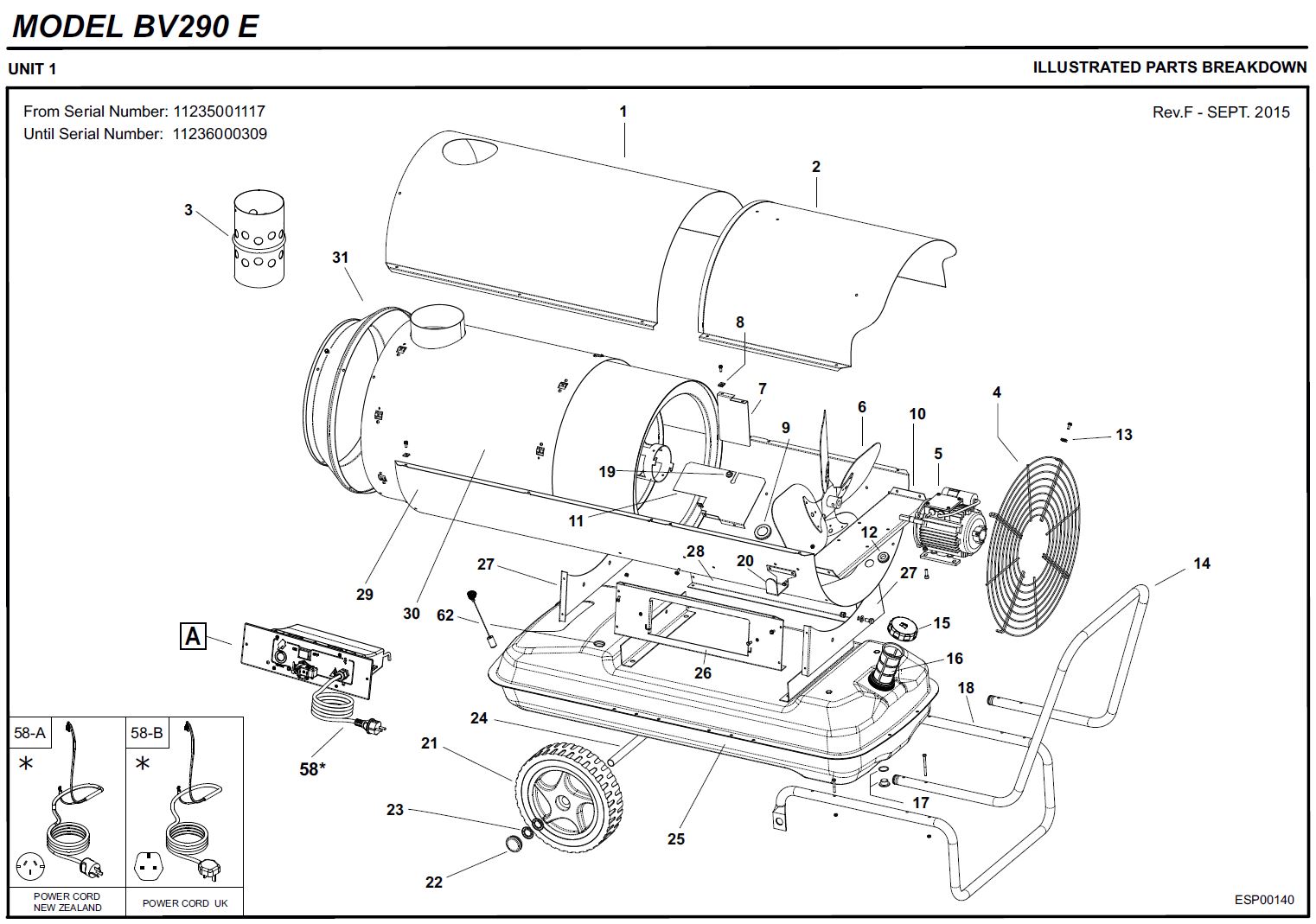

Szám Cikkszám Cikknév                              Rev. F Sept. 2015
1 4032.456 UPPER BODY
2 4032.263 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4032.465 INLET GRILLE
5 4032.370 MOTOR 4P 750 W
6 4033.019 FAN
7 4032.518 AIR FLAP
8 4104.170 CLIP NUT
9 4111.056 PROTECTION CLABLE
10 4032.463 MOTOR FLANGE SUPPORT
11 4032.462 AIR FLAP
12 4160.646 PROTECTION CABLE
13 4111.241 ELASTIC PLATE
14 4032.480 HANDLE FRAME
15 4260.100 TANK CAP
16 4290.213 TANK FILTER
17 4100.632 DRAIN PLUG
18 4032.476 FOOT FRAME
19 4101.151 PROTECTION CABLE
20 4032.536 POWER CORD HOOK
21 4110.978 WHEEL
22 4111.480 WHEEL PLUG
23 4111.072 WHEEL HOLDER
24 4032.478 AXLE
25 4033.243 FUEL TANK
26 4032.466 ELECTR. COMPONENTS DRAWER PANEL
27 4032.470 LATERAL PANEL
28 4032.468 REAR PANEL
29 4033.264 LOWER BODY
30 4033.190 COMBUSTION CHAMBER
31 4033.223 OUTLET CONE
32 4031.068 CONN. STRAIGHT 1/4"
33 4031.067 PIPE CONNECTION 1/4"
34 4031.062 FUEL PIPE PUMP-TANK
35 4031.063 FUEL PIPE TANK-FILTER
36 4031.061 FUEL PIPE FILTER-PUMP
37 4033.090 FILTER CARTIDGE 3/8"
38 4111.116 OR KIT FILTER
39 4031.494 FILTER CARTIDGE
40 4032.437 FILTER SUPPORT
41 4031.064 DOUBLE SCREW
43 4160.646 PROTECTION CABLE
44 4033.257 PLASTIX BOX
45 4110.490 HT CABLE
46 4033.256 POWER CORD TRANSFORMATOR HT
47 4031.541 TRANSFORMER HT
48 4033.249 CONTROL BASE
49 4033.330 CONTROL BOX
50 4160.639 POP RIVET 4 WAY
51 4111.032 RELAY
52 4111.040 FUSE
53 4033.301 FUSE HOLDER
54 4033.248 FRONTAL CONTROLS PANEL
55 4033.254 PANEL LABEL
56 4100.656 LOCKNUT
57 4150.528 STRAIN RELIEF BUSHING
58 4033.253 POWER CORD SCHUKO
58A 4033.252 POWER CORD NEW ZEALAND
58B 4033.302 POWER CORD UK
59 4162.467 THERMOSTAT CAP
60 4161.400 CONNECTION PLUG
61 4160.647 THERMOSTAT SOCKET 90°
62 4260.105 FUEL GAUGE
63 4165.204 ROCKER SWITCH
64 4033.251 BOARD BUTTON CAP
71 4111.081 COUPLING
72 4033.122 PUMP
73 4161.501 CONN. STRAIGHT 1/8"
74 4033.198 ELBOW 1/8"
75 4033.186 OIL SUPPLY PIPE
76 4033.311 PUMP POWER CORD
77 4033.246 PHOTOCELL
80 4033.059 BURNER FLANGE
81 4031.030 NOZZLE
82 4033.071 TURBO DISC
83 4032.454 M6 NUT
84 4032.453 AIR REGOLATION FLAP
85 4031.047 LIMIT THERMOSTAT
86 4111.826 ELECTRODE

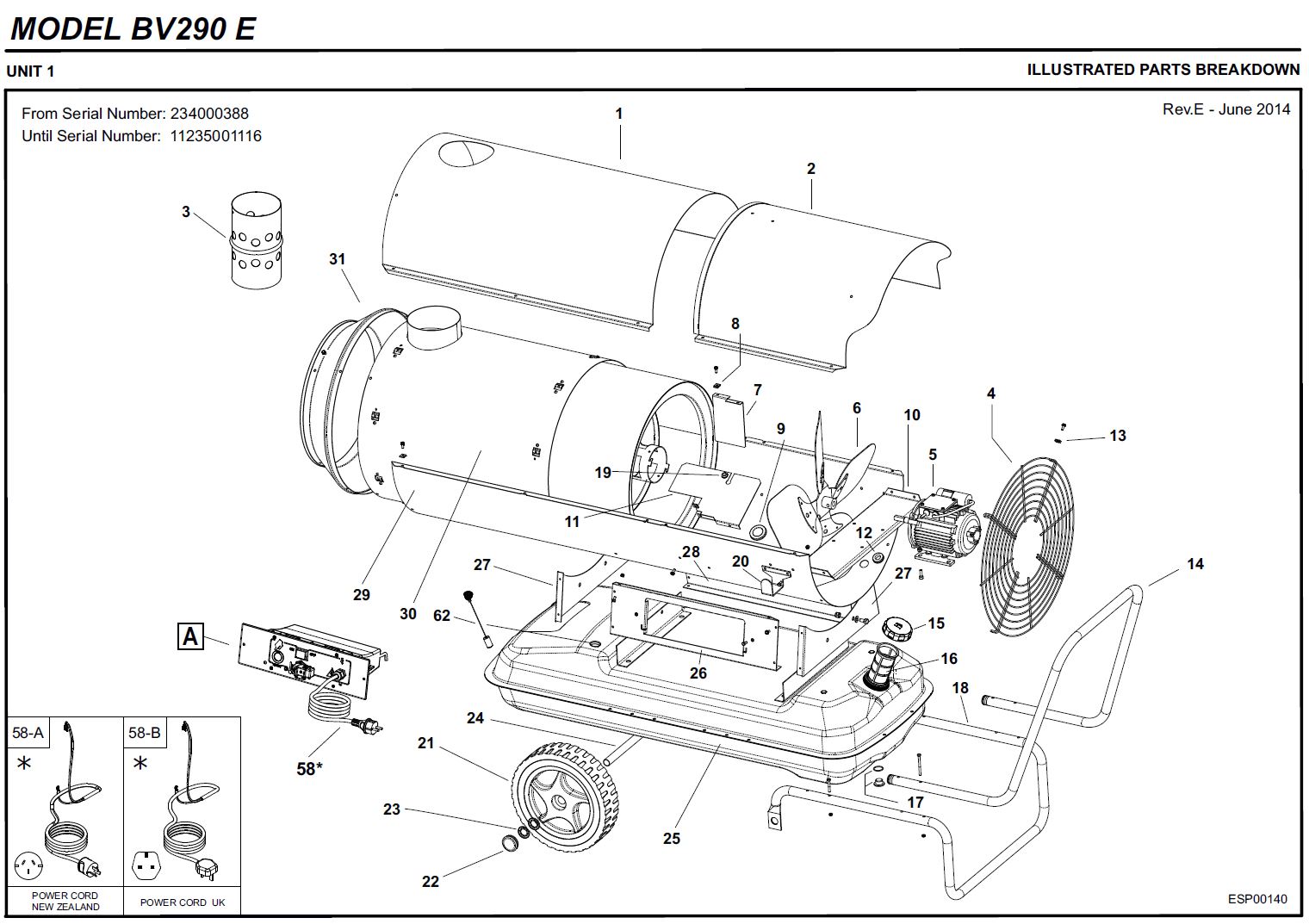

Szám Cikkszám Cikknév                              Rev. E June 2014
1 4032.456 UPPER BODY
2 4033.263 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4032.465 INLET GRILLE
5 4032.370 MOTOR 4P 750 W
6 4033.019 FAN
7 4032.518 CENTRAL AIR FLAP
8 4104.170 CLIP NUT
9 4111.056 PROTECTION CLABLE
10 4032.463 MOTOR FLANGE SUPPORT
11 4032.462 AIR FLAP
12 4160.646 PROTECTION CABLE
13 4111.241 ELASTIC PLATE
14 4032.480 HANDLE FRAME
15 4260.100 TANK CAP
16 4290.083 TANK FILTER
17 4100.632 DRAIN PLUG
18 4032.476 FOOT FRAME
19 4101.151 PROTECTION CABLE
20 4032.536 POWER CORD HOOK
21 4110.978 WHEEL
22 4111.480 WHEEL PLUG
23 4111.072 WHEEL HOLDER
24 4032.478 AXLE
25 4033.243 FUEL TANK
26 4032.466 ELECTR. COMPONENTS DRAWER PANEL
27 4032.470 LATERAL PANEL
28 4032.468 REAR PANEL
29 4033.264 LOWER BODY
30 4033.190 COMBUSTION CHAMBER
31 4033.223 OUTLET CONE
32 4031.068 CONN. STRAIGHT 1/4"
33 4031.067 PIPE CONNECTION 1/4"
34 4031.062 FUEL PIPE PUMP-TANK
35 4031.063 FUEL PIPE TANK-FILTER
36 4031.061 FUEL PIPE FILTER-PUMP
37 4033.090 FILTER CARTIDGE 3/8"
38 4111.116 OR KIT FILTER
39 4031.494 FILTER CARTIDGE
40 4032.437 FILTER SUPPORT
41 4031.064 DOUBLE SCREW
43 4160.646 PROTECTION CABLE
44 4033.257 PLASTIX BOX
45 4110.490 HT CABLE
46 4033.256 POWER CORD TRANSFORMATOR HT
47 4031.541 TRANSFORMER HT
48 4033.249 CONTROL BASE
49 4033.330 CONTROL BOX
50 4160.639 POP RIVET 4 WAY
51 4111.032 RELAY
52 4111.040 FUSE
53 4033.301 FUSE HOLDER
54 4033.248 FRONTAL CONTROLS PANEL
55 4033.254 PANEL LABEL
56 4100.656 LOCKNUT
57 4150.528 STRAIN RELIEF BUSHING
58 4033.253 POWER CORD SCHUKO
58A 4033.252 POWER CORD NEW ZEALAND
58B 4033.302 POWER CORD UK
59 4162.467 THERMOSTAT CAP
60 4161.400 CONNECTION PLUG
61 4160.647 THERMOSTAT SOCKET 90°
62 4260.105 FUEL GAUGE
63 4165.204 ROCKER SWITCH
64 4033.251 BOARD BUTTON CAP
71 4111.081 COUPLING
72 4033.122 PUMP
73 4161.501 CONN. STRAIGHT 1/8"
74 4033.198 ELBOW 1/8"
75 4033.186 OIL SUPPLY PIPE
76 4033.087 PUMP POWER CORD
77 4033.246 PHOTOCELL
80 4033.059 BURNER FLANGE
81 4031.030 NOZZLE
82 4033.071 TURBO DISC
83 4032.454 M6 NUT
84 4032.453 AIR REGOLATION FLAP
85 4031.047 LIMIT THERMOSTAT
86 4111.826 ELECTRODE

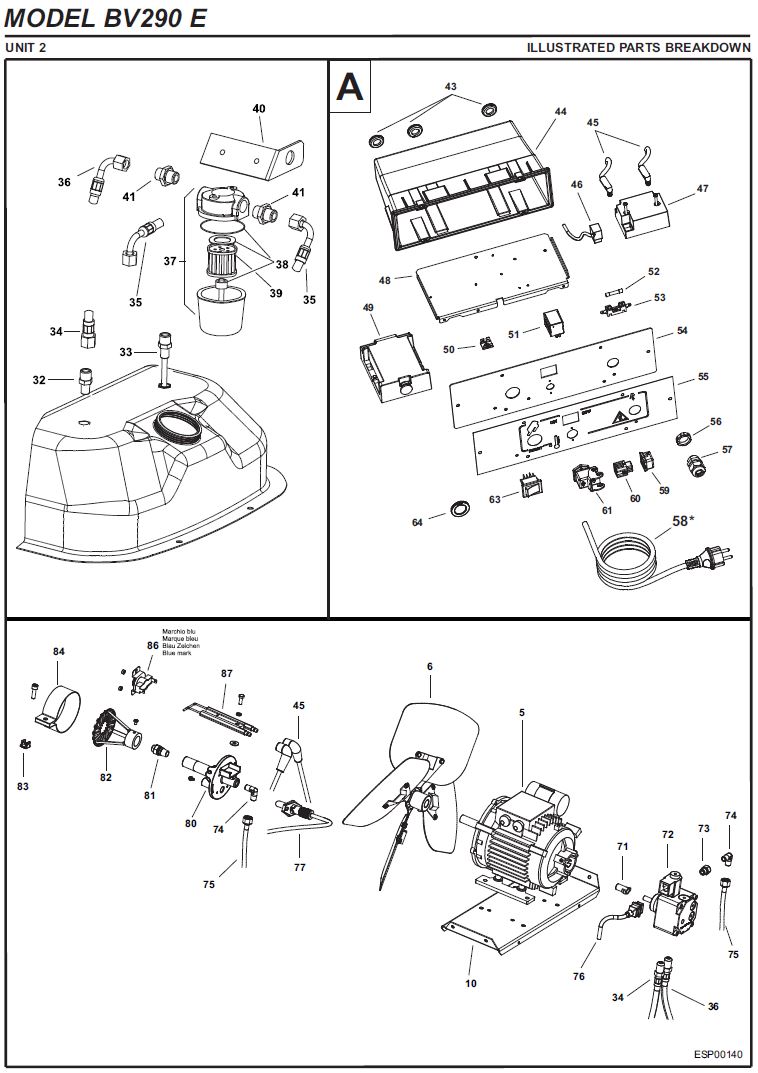

Szám Cikkszám Cikknév                              Rev. D May 2013
1 4032.456 UPPER BODY
2 4033.263 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4032.465 INLET GRILLE
5 4032.370 MOTOR 4P 750 W
6 4033.019 FAN
7 4032.518 CENTRAL AIR FLAP
8 4104.170 CLIP NUT
9 4111.056 PROTECTION CLABLE
10 4032.463 MOTOR FLANGE SUPPORT
11 4032.462 AIR FLAP
12 4160.646 PROTECTION CABLE
13 4111.241 ELASTIC PLATE
14 4032.480 HANDLE FRAME
15 4260.100 TANK CAP
16 4290.083 TANK FILTER
17 4100.632 DRAIN PLUG
18 4032.476 FOOT FRAME
19 4101.151 PROTECTION CABLE
20 4032.536 POWER CORD HOOK
21 4110.978 WHEEL
22 4111.480 WHEEL PLUG
23 4111.072 WHEEL HOLDER
24 4032.478 AXLE
25 4033.243 FUEL TANK
26 4032.466 ELECTR. COMPONENTS DRAWER PANEL
27 4032.470 LATERAL PANEL
28 4032.468 REAR PANEL
29 4033.264 LOWER BODY
30 4033.190 COMBUSTION CHAMBER
31 4033.223 OUTLET CONE
32 4031.068 CONN. STRAIGHT 1/4"
33 4031.067 PIPE CONNECTION 1/4"
34 4031.062 FUEL PIPE PUMP-TANK
35 4031.063 FUEL PIPE TANK-FILTER
36 4031.061 FUEL PIPE FILTER-PUMP
37 4033.090 FILTER CARTIDGE 3/8"
38 4111.116 OR KIT FILTER
39 4031.494 FILTER CARTIDGE
40 4032.437 FILTER SUPPORT
41 4031.064 DOUBLE SCREW
43 4160.646 PROTECTION CABLE
44 4033.257 PLASTIX BOX
45 4110.490 HT CABLE
46 4033.256 POWER CORD TRANSFORMATOR HT
47 4106.238 KIT TRANSFORMER HT
48 4033.249 CONTROL BASE
49 4033.250 CONTROL BOX
50 4160.639 POP RIVET 4 WAY
51 4111.032 RELAY
52 4111.040 FUSE
53 4033.301 FUSE HOLDER
54 4033.248 FRONTAL CONTROLS PANEL
55 4033.254 PANEL LABEL
56 4100.656 LOCKNUT
57 4150.528 STRAIN RELIEF BUSHING
58 4033.253 POWER CORD SCHUKO
58A 4033.252 POWER CORD NEW ZEALAND
58B 4033.302 POWER CORD UK
59 4162.467 THERMOSTAT CAP
60 4161.400 CONNECTION PLUG
61 4160.647 THERMOSTAT SOCKET 90°
62 4260.105 FUEL GAUGE
63 4165.204 ROCKER SWITCH
64 4033.251 BOARD BUTTON CAP
71 4111.081 COUPLING
72 4033.122 PUMP
73 4161.501 CONN. STRAIGHT 1/8"
74 4033.198 ELBOW 1/8"
75 4033.186 OIL SUPPLY PIPE
76 4033.087 PUMP POWER CORD
77 4033.246 PHOTOCELL
80 4033.059 BURNER FLANGE
81 4031.030 NOZZLE
82 4033.071 TURBO DISC
83 4032.454 M6 NUT
84 4032.453 AIR REGOLATION FLAP
85 4031.047 LIMIT THERMOSTAT
86 4111.826 ELECTRODE

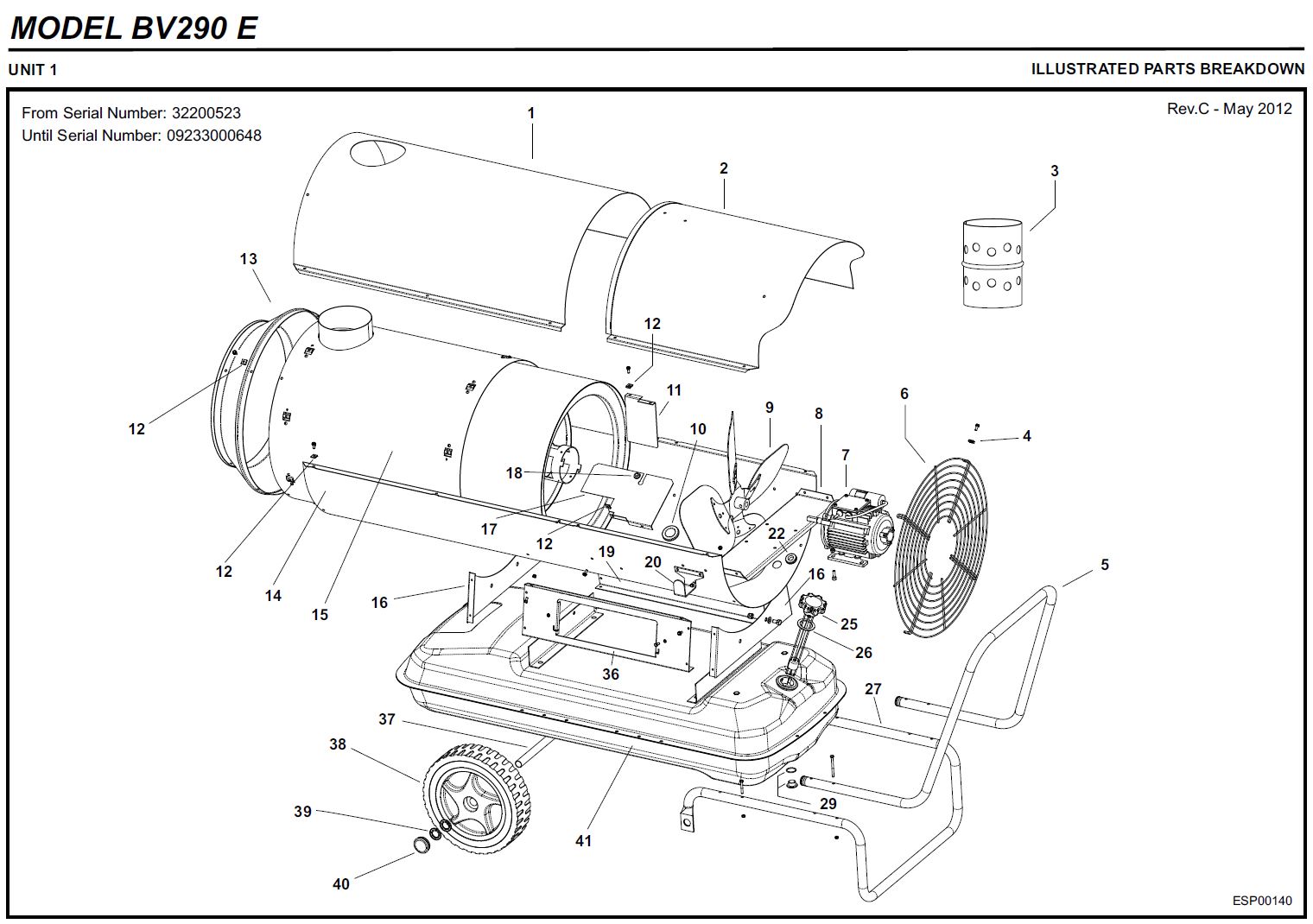

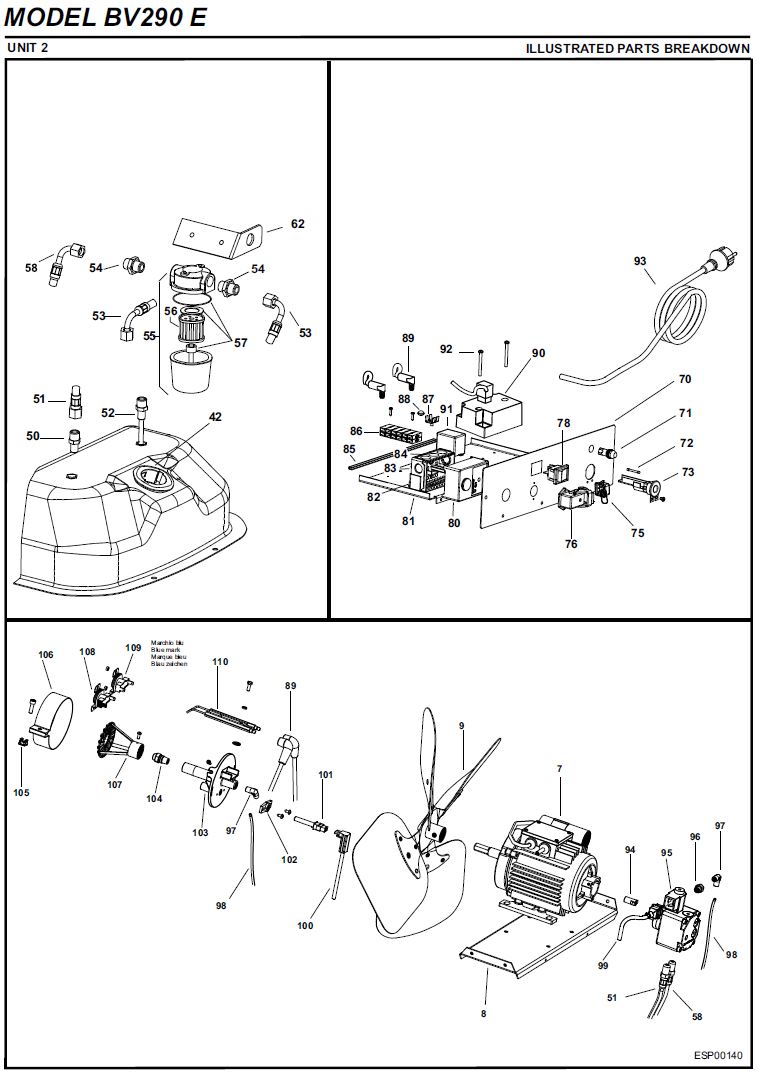

Szám Cikkszám Cikknév                              Rev. C May 2012
1 4032.456 UPPER BODY
2 4032.458 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4111.241 ELASTIC PLATE
5 4032.480 HANDLE FRAME
6 4032.465 INLET GRILL
7 4032.370 MOTOR 4P 750 W
8 4032.463 MOTOR FLANGE SUPPORT
9 4033.019 FAN
10 4111.056 PROTECTION CABLE
11 4032.518 CENTRAL AIR FLAP
12 4104.170 CLIP NUT
13 4032.452 OUTLET CONE
14 4032.460 LOWER BODY
15 4033.190 COMBUSTION CHAMBER
16 4032.470 BASE
17 4032.462 AIR FLAP
18 4101.151 PROTECTION CABLE
19 4032.468 SIDE PANEL
20 4032.536 POWER CORD HOOK
21 4110.978 WHEEL
22 4160.646 PROTECTION CABLE
25 4032.475 FUEL LEVEL PROBE
26 4032.537 TANK PLUG SEAL
27 4032.476 FOOT FRAME
29 4100.632 DRAIN PLUG
36 4032.466 ELECTR. COMPONENTS DRAWER PANEL
37 4032.478 AXLE
38 4110.978 WHEEL
39 4111.072 WHEEL HOLDER
40 4111.480 WHEEL PLUG
41 4033.092 FUEL TANK
42 4032.472 NECK PLASTIC FILLER
50 4031.068 CONN. STRAIGHT 1/4"
51 4031.062 FUEL PIPE PUMP-TANK
52 4031.067 PIPE CONNECTION 1/4"
53 4031.063 FUSE HOLDER
54 4031.064 DOUBLE SCREW
55 4033.090 FILTER WITH CARTIDGE 3/8"
56 4031.494 FILTER CARTRIDGE
57 4111.116 OR KIT FILTER
58 4031.061 FUEL PIPE FILTER-PUMP
62 4032.437 FILTER SUPPORT
70 4032.446 ELECTRIC. COMPONENTS DRAWER
71 4117.058 PILOT LAMP
72 4111.040 FUSE (6,3x32) 10 A
73 4111.038 CABLE FASTENER
75 4162.467 THERMOSTAT PLUG
76 4111.119 PLATE PLUG
78 4160.637 SWITCH
80 4110.968 CONTROL BOX SATRONIC
81 4032.448 ELECTR. COMPONENTS BASE
82 4032.499 CONTROL BOX SUPPORT
83 4110.969 CONTROL BOX BASE
84 4110.967 SUPPORT PG PHOTOCELL
85 4110.155 EDGE LINER
86 4111.033 TERMINAL BOARD
87 4160.639 POP RIVET WITH TERMIN. 4 WAY
88 4032.450 PLASTIC PIN
89 4110.490 H.T. CABLE
90 4111.890 KIT TRANSFORMER
91 4111.032 RELAY FINDER
92 4160.421 M4 SCREW
93 4111.153 POWER CORD
94 4111.081 COUPLING SIMEL
95 4033.122 PUMP DANFOSS
96 4161.501 NUT FOR BICONE 1/8
97 4033.198 ELBOW 1/8"
98 4033.186 OIL SUPPLY PIPE
99 4033.087 PUMP POWER CORD
100 4110.970 PHOTOCELL CONN.CABLE
101 4110.966 PHOTOCELL
102 4111.076 PHOTOCELL BLOCK BRACKET
103 4033.059 BURNER FLANGE
104 4031.030 NOZZLE 1,50 GPH 80°S
105 4032.454 M6 NUT
106 4032.453 AIR REGULATION FLAP
107 4033.071 TURBO DISC
108 4031.045 FAN THERMOSTAT
109 4031.047 LIMIT THERMOSTAT
110 4111.826 ELECTRODE

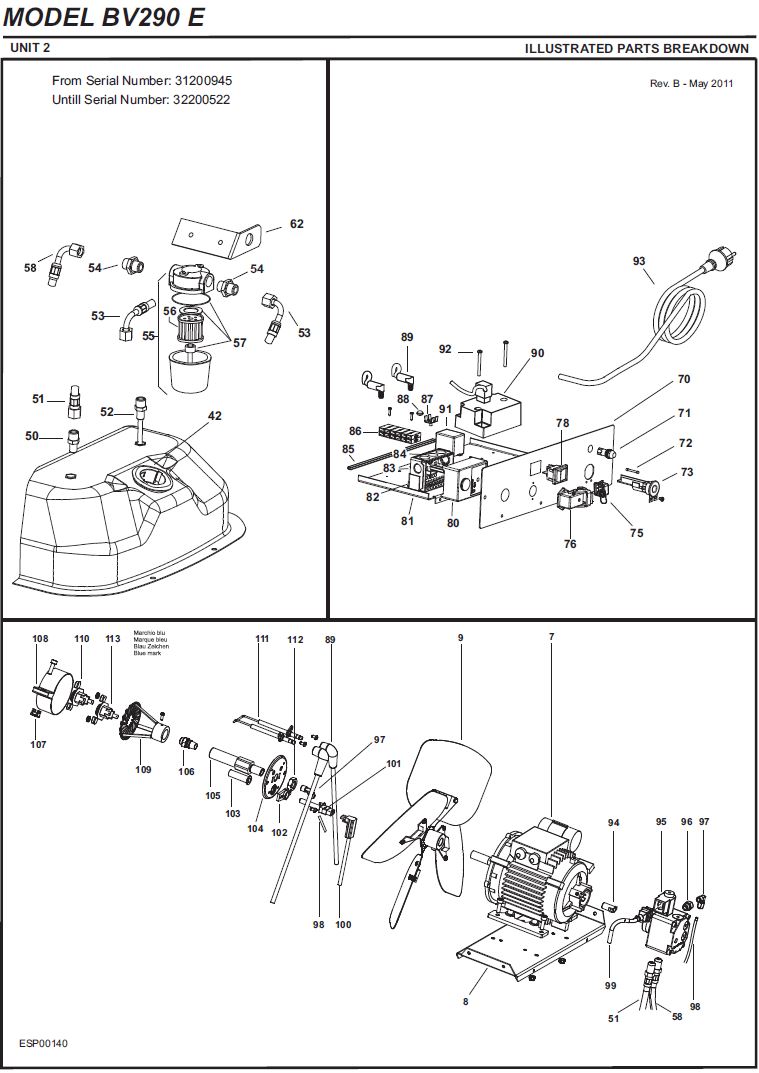

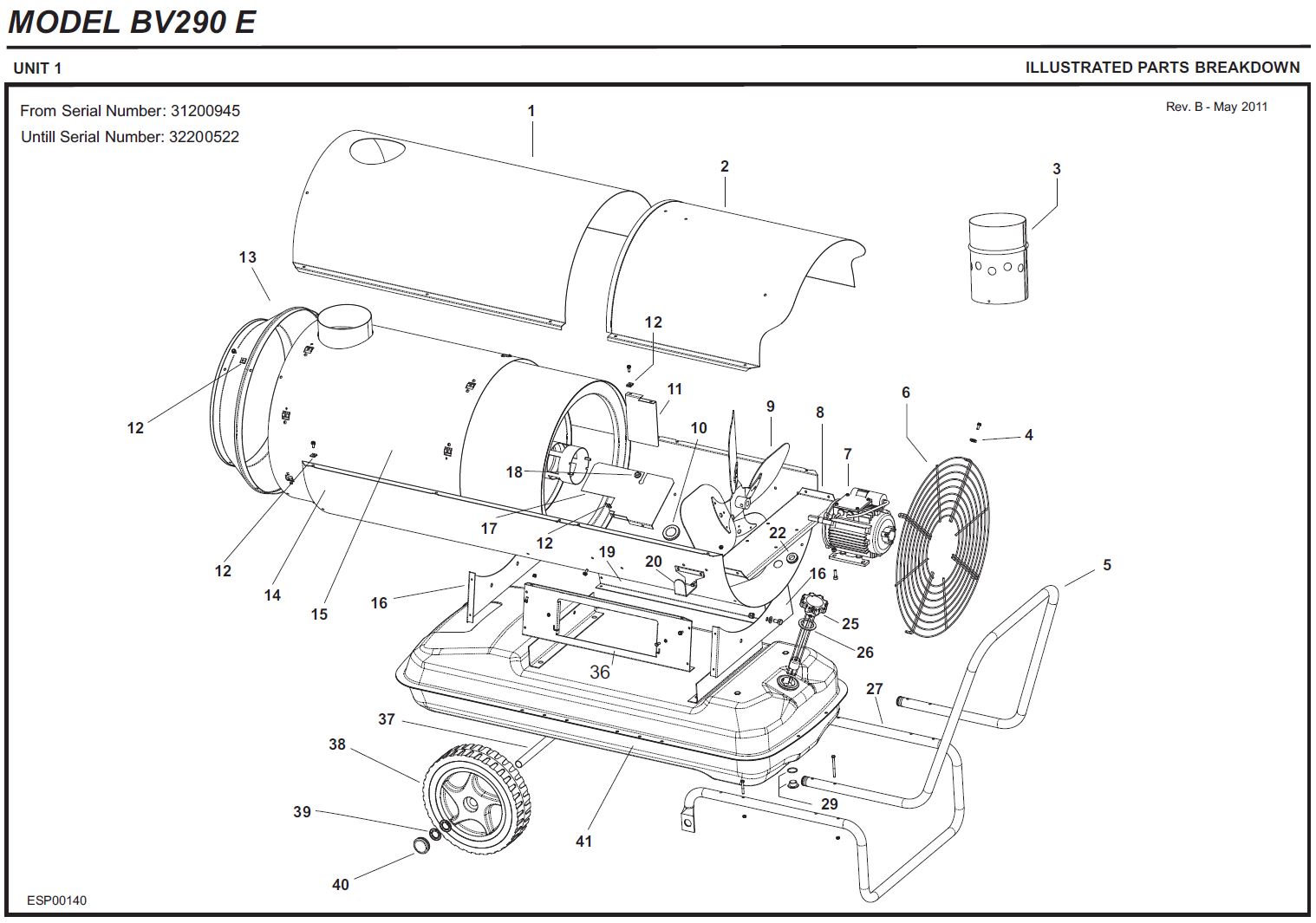

Szám Cikkszám Cikknév                              Rev. B May 2011
1 4032.456 UPPER BODY
2 4032.458 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4111.241 ELASTIC PLATE
5 4032.480 HANDLE FRAME
6 4032.465 INLET GRILL
7 4032.370 MOTOR 4P 750 W
8 4032.463 MOTOR FLANGE SUPPORT
9 4033.019 FAN
10 4111.056 PROTECTION CABLE
11 4032.518 CENTRAL AIR FLAP
12 4104.170 CLIP NUT
13 4032.452 OUTLET CONE
14 4032.460 LOWER BODY
15 4032.408 COMBUSTION CHAMBER
16 4032.470 BASE
17 4032.462 AIR FLAP
18 4101.151 PROTECTION CABLE
19 4032.468 SIDE PANEL
20 4032.536 POWER CORD HOOK
21 4110.978 WHEEL
22 4160.646 PROTECTION CABLE
25 4032.475 FUEL LEVEL PROBE
26 4032.537 TANK PLUG SEAL
27 4032.476 FOOT FRAME
29 4100.632 DRAIN PLUG
36 4032.466 ELECTR. COMPONENTS DRAWER PANEL
37 4032.478 AXLE
38 4110.978 WHEEL
39 4111.072 WHEEL HOLDER
40 4111.480 WHEEL PLUG
41 4033.092 FUEL TANK
42 4032.472 NECK PLASTIC FILLER
50 4031.068 CONN. STRAIGHT 1/4"
51 4031.062 FUEL PIPE PUMP-TANK
52 4031.067 PIPE CONNECTION 1/4"
53 4031.063 FUSE HOLDER
54 4031.064 DOUBLE SCREW
55 4033.090 FILTER WITH CARTIDGE 3/8"
56 4031.494 FILTER CARTRIDGE
57 4111.116 OR KIT FILTER
58 4031.061 FUEL PIPE FILTER-PUMP
62 4032.437 FILTER SUPPORT
70 4032.446 ELECTRIC. COMPONENTS DRAWER
71 4117.058 PILOT LAMP
72 4111.040 FUSE (6,3x32) 10 A
73 4111.038 CABLE FASTENER
75 4162.467 THERMOSTAT PLUG
76 4111.119 PLATE PLUG
78 4160.637 SWITCH
80 4110.968 CONTROL BOX SATRONIC
81 4032.448 ELECTR. COMPONENTS BASE
82 4032.499 CONTROL BOX SUPPORT
83 4110.969 CONTROL BOX BASE
84 4110.967 SUPPORT PG PHOTOCELL
85 4110.155 EDGE LINER
86 4111.033 TERMINAL BOARD
87 4160.639 POP RIVET WITH TERMIN. 4 WAY
88 4032.450 PLASTIC PIN
89 4110.490 H.T. CABLE
90 4111.890 KIT TRANSFORMER
91 4111.032 RELAY FINDER
92 4160.421 M4 SCREW
93 4111.153 POWER CORD
94 4111.081 COUPLING SIMEL
95 4033.122 PUMP DANFOSS
96 4161.501 NUT FOR BICONE 1/8
97 4161.140 ELBOW 1/8"
98 4032.433 OIL SUPPLY PIPE
99 4033.087 PUMP POWER CORD
100 4110.970 PHOTOCELL CONN.CABLE
101 4110.966 PHOTOCELL
102 4111.076 PHOTOCELL BLOCK BRACKET
103 4032.406 PHOTOCELL SUPPORT
104 4032.405 BURNER FLANGE
105 4032.403 NOZZLE SUPPORT
106 4031.030 NOZZLE 1,50 GPH 80°S
107 4032.454 M6 NUT
108 4032.453 AIR REGULATION FLAP
109 4033.071 TURBO DISC
110 4031.045 FAN THERMOSTAT
111 4033.057 ELECTRODE
112 4032.407 NUT M41
113 4031.047 LIMIT THERMOSTAT

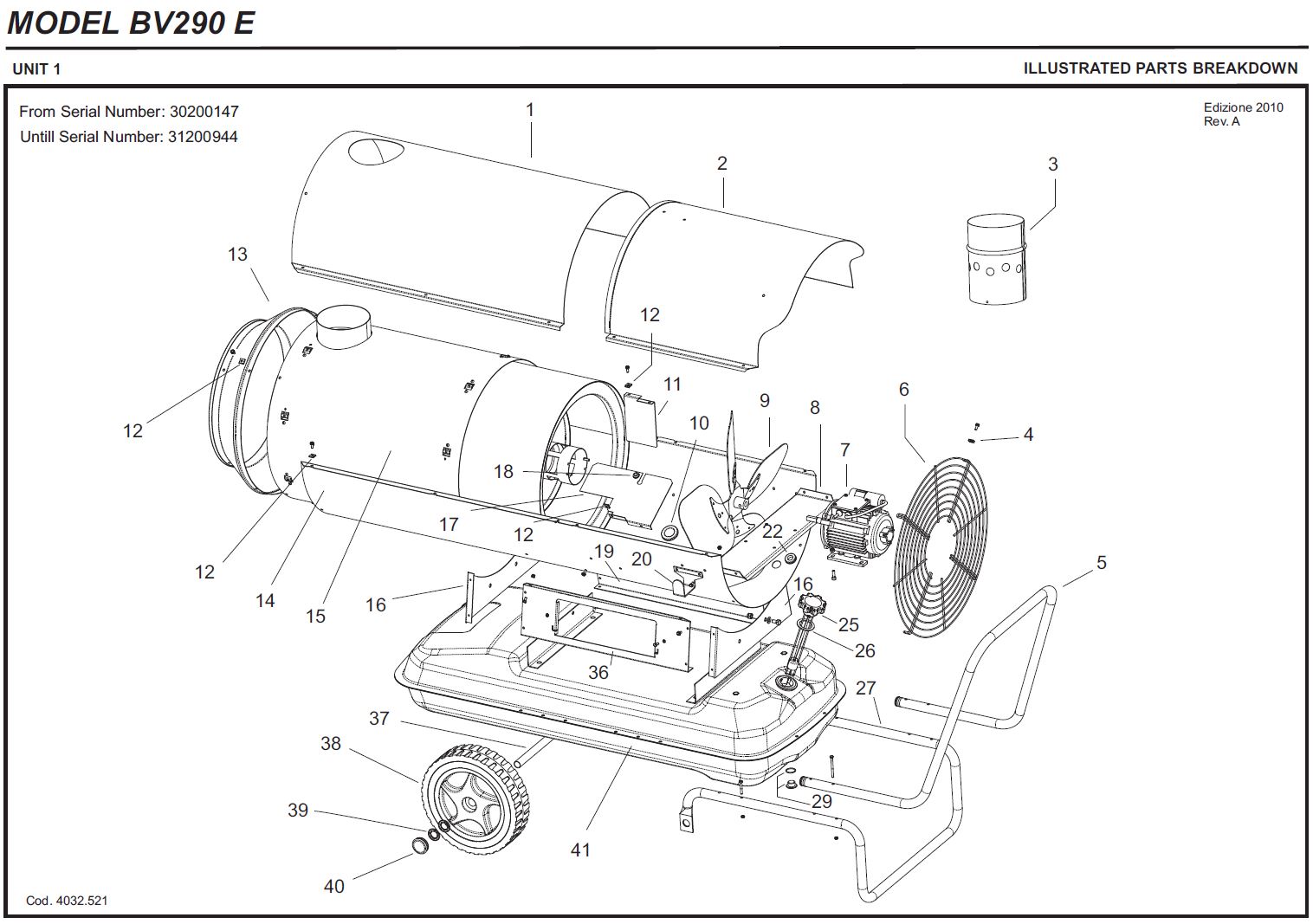

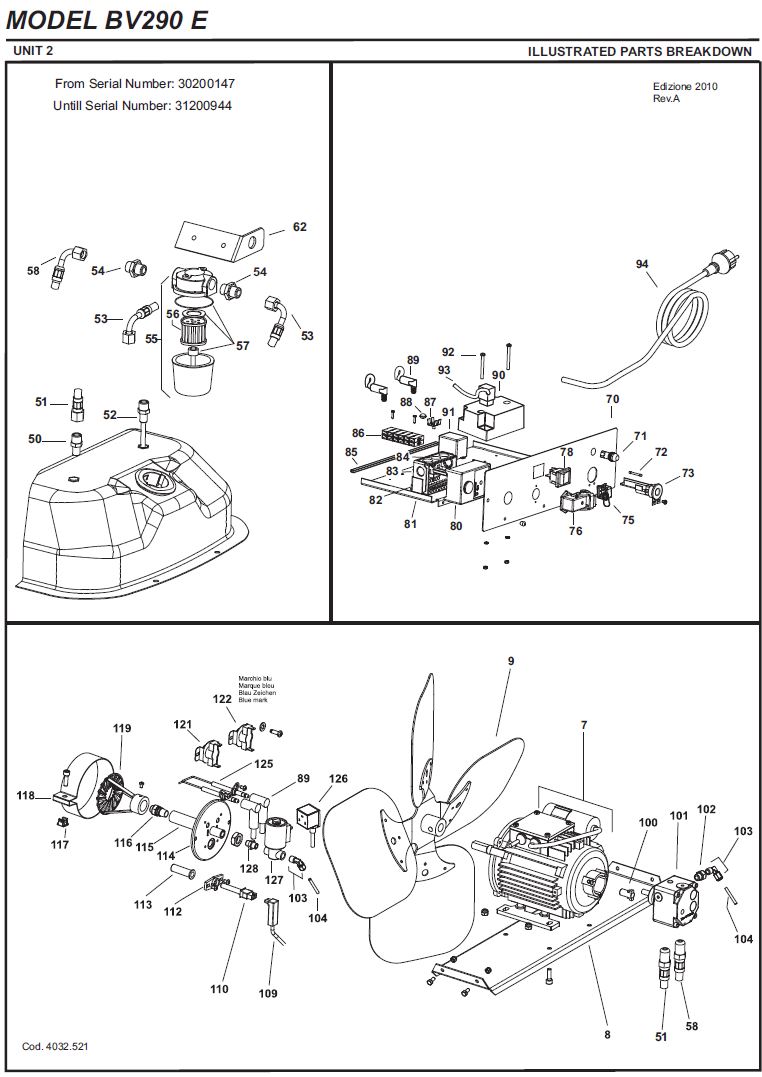

Szám Cikkszám Cikknév                              Rev. A 2010
1 4032.456 UPPER BODY
2 4032.458 UPPER BODY - MOBILE
3 4032.385 CHIMNEY
4 4111.241 ELASTIC PLATE
5 4032.480 HANDLE FRAME
6 4032.465 INLET GRILL
7 4032.431 MOTOR
8 4034.463 MOTOR FLANGE SUPPORT
9 4032.430 FAN
10 4111.056 PROTECTION CABLE
11 4032.518 CENTRAL AIR FLAP
12 4104.170 CLIP NUT
13 4032.452 OUTLET CONE
14 4032.460 LOWER BODY
15 4032.408 COMBUSTION CHAMBER
16 4032.470 BASE
17 4032.462 AIR FLAP
18 4101.151 PROTECTION CABLE
19 4032.468 SIDE PANEL
20 4032.536 POWER CORD HOOK
21 4110.978 WHEEL
22 4160.646 PROTECTION CABLE
25 4032.475 FUEL LEVEL PROBE
26 4032.537 TANK PLUG SEAL
27 4032.476 FOOT FRAME
29 4100.632 DRAIN PLUG
36 4032.466 ELECTR. COMPONENTS DRAWER PANEL
37 4032.478 AXLE
38 4110.978 WHEEL
39 4111.072 WHEEL HOLDER
40 4111.480 WHEEL PLUG
41 4032.439 FUEL TANK
50 4031.068 CONN. STRAIGHT 1/4"
51 4031.062 FUEL PIPE PUMP-TANK
52 4031.067 PIPE CONNECTION 1/4"
53 4031.063 FUSE HOLDER
54 4031.064 DOUBLE SCREW
55 4031.070 FILTER WITH CARTIDGE 3/8"
56 4031.015 FILTER CARTRIDGE
57 4111.116 OR KIT FILTER
58 4031.061 FUEL PIPE FILTER-PUMP
62 4032.437 FILTER SUPPORT
70 4032.446 ELECTRIC. COMPONENTS DRAWER
71 4117.058 PILOT LAMP
72 4111.040 FUSE (6,3x32) 10 A
73 4111.038 CABLE FASTENER
75 4111.118 THERMOSTAT PLUG
76 4111.119 PLATE PLUG
78 4160.637 SWITCH
80 4110.968 CONTROL BOX SATRONIC
81 4032.448 ELECTR. COMPONENTS BASE
82 4032.499 CONTROL BOX SUPPORT
83 4110.969 CONTROL BOX BASE
84 4110.967 SUPPORT PG PHOTOCELL
85 4110.155 EDGE LINER
86 4111.033 TERMINAL BOARD
87 4160.639 POP RIVET WITH TERMIN. 4 WAY
88 4032.450 PLASTIC PIN
89 4110.490 H.T. CABLE
90 4031.541 TRANSFORMER
91 4111.032 RELAY FINDER
92 4160.421 M4 SCREW
93 4110.491 TRANSFORMER POWER CORD
94 4111.153 POWER CORD
100 4111.081 COUPLING SIMEL
101 4031.476 PUMP DANFOSS
102 4161.501 NUT FOR BICONE 1/8
103 4161.140 ELBOW 1/8"
104 4032.433 OIL SUPPLY PIPE
109 4110.970 PHOTOCELL CONN.CABLE
110 4110.966 PHOTOCELL
112 4111.076 M6 NUT
113 4032.406 PHOTOCELL SUPPORT
114 4032.405 BURNER FLANGE
115 4032.403 NOZZLE SUPPORT
116 4031.030 NOZZLE 1,50 GPH 80°S
117 4032.454 M6 NUT
118 4032.453 AIR REGULATION FLAP
119 4032.570 TURBO DISC
121 4031.045 FAN THERMOSTAT
122 4031.047 LIMIT THERMOSTAT
125 4032.785 ELECTRODE
126 4032.110 POWER CORD SOLENOIDE SPOOL
127 4102.535 SOLENOID SPOOL 230V/50Hz
128 4160.968 CONN. STRAIGHT 1/8"

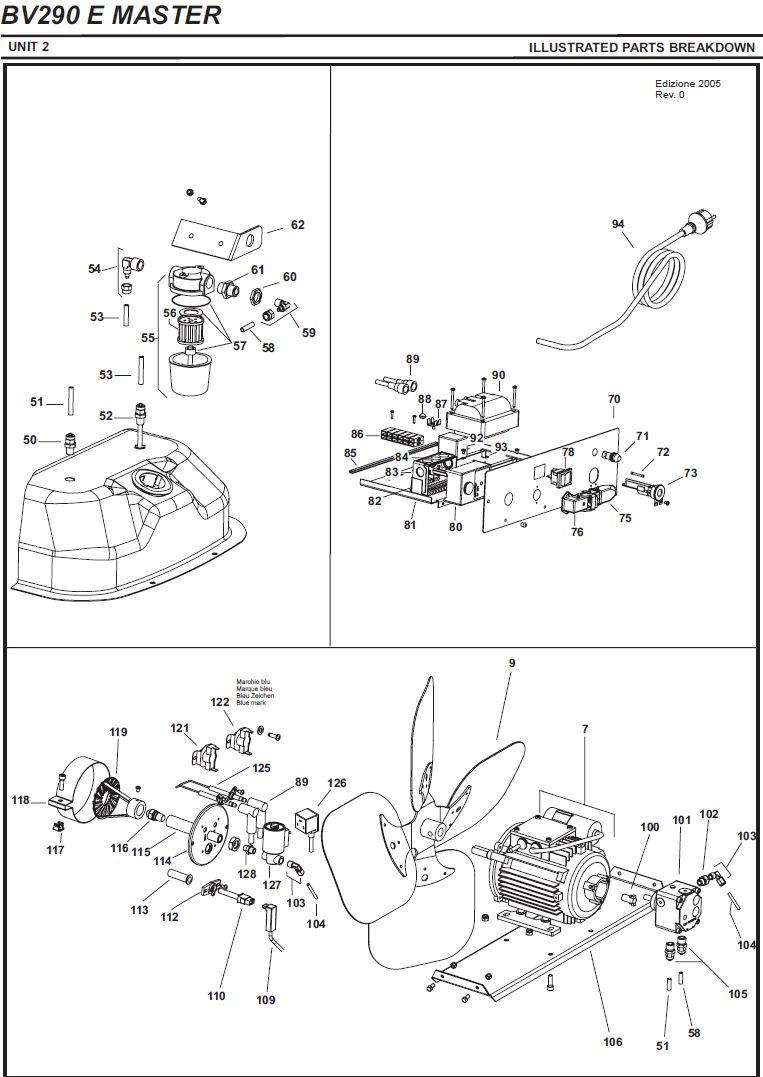

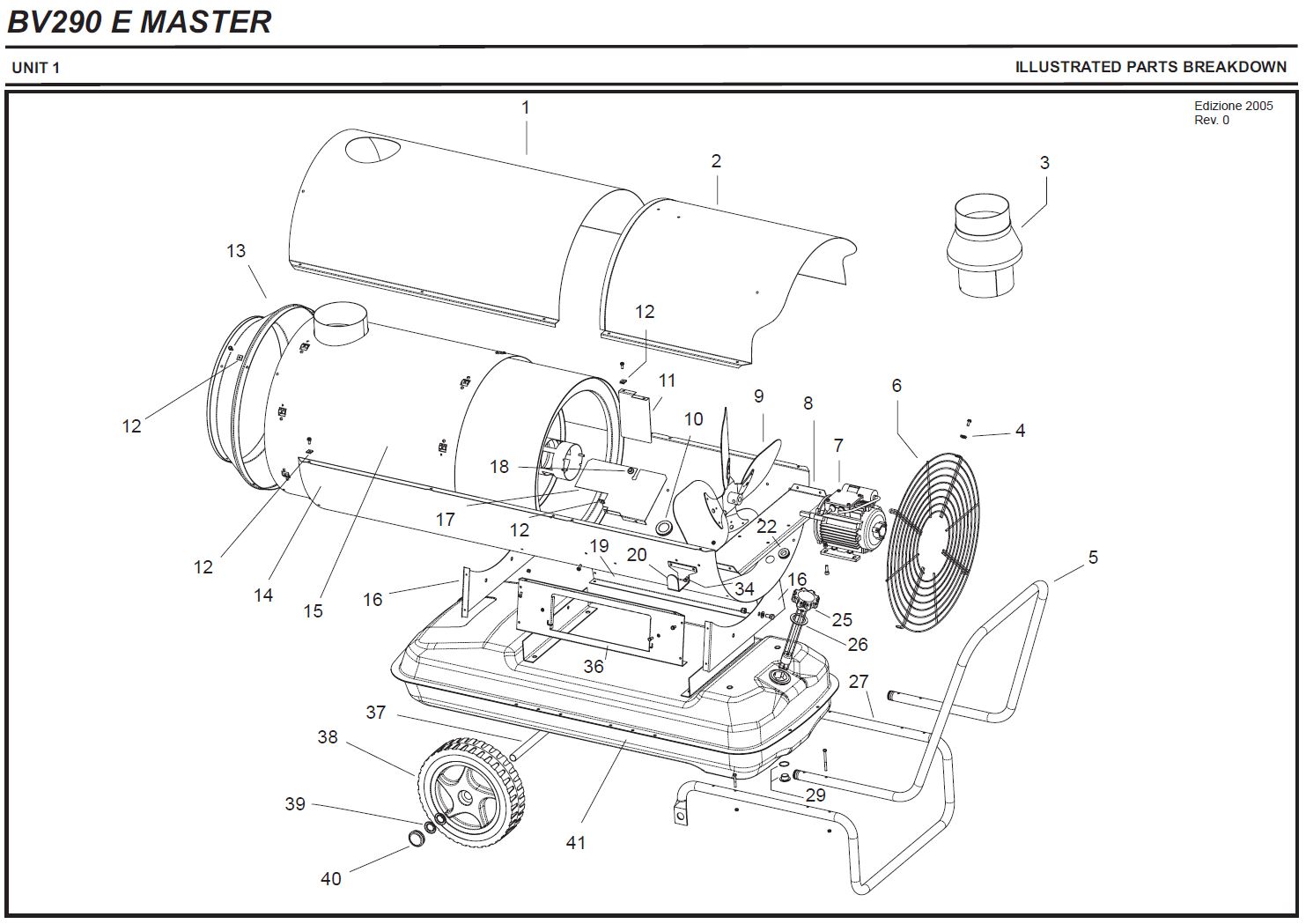

Szám Cikkszám Cikknév                              Rev. 0 2005
1 S/R UPPER BODY
2 S/R UPPER BODY - MOBILE
3 4032.534 CHIMNEY
4 4111.241 ELASTIC PLATE
5 4032.480 HANDLE FRAME
6 4032.465 INLET GRILL
7 4032.431 MOTOR
8 4032.463 MOTOR FLANGE SUPPORT
9 4032.430 FAN
10 4111.056 PROTECTION CABLE
11 4032.518 CENTRAL AIR FLAP
12 4104.170 CLIP NUT
13 4032.452 OUTLET CONE
14 S/R LOWER BODY
15 4032.408 COMBUSTION CHAMBER
16 S/R BASE
17 4032.462 AIR FLAP
18 4101.151 PROTECTION CABLE
19 4032.468 SIDE PANEL
20 4032.536 POWER CORD HOOK
21 4110.978 WHEEL
22 4160.646 PROTECTION CABLE
25 4032.475 FUEL LEVEL PROBE
26 4032.537 TANK PLUG SEAL
27 4032.476 FOOT FRAME
29 4100.632 DRAIN PLUG
36 S/R ELECTR. COMPONENTS DRAWER PANEL
37 4032.478 AXLE
38 4110.978 WHEEL
39 4111.072 WHEEL HOLDER Ø 20
40 4111.480 WHEEL PLUG
41 4032.439 FUEL TANK
50 4032.488 CONN. STRAIGHT M10
51 4032.436 FUEL PIPE PUMP-TANK
52 4032.092 PIPE CONNECTION M10
53 4032.434 FUEL PIPE TANK FILTER
54 4031.803 CONNECTION 90° 3/8"
55 4111.045 FILTER WITH CARTIDGE 3/8"
56 4031.015 FILTER CARTRIDGE
57 4111.116 OR KIT FILTER
58 4032.435 FUEL PIPE FILTER-PUMP
59 4111.273 CONNECTION 90° 1/8"
60 4031.800 CONN. STRAIGHT 3/8" Mx5
61 4031.802 DOUBLE SCREW
62 4032.437 FILTER SUPPORT
70 4032.446 ELECTRIC. COMPONENTS DRAWER
71 4117.058 PILOT LAMP 230V
72 4111.040 FUSE (6,3x32) 10 A
73 4111.038 CABLE FASTENER
75 4111.118 THERMOSTAT PLUG
76 4111.119 PLATE PLUG
78 4160.637 SWITCH
80 4110.968 CONTROL BOX SATRONIC
81 4032.448 ELECTR. COMPONENTS BASE
82 4032.499 CONTROL BOX SUPPORT
83 4110.969 CONTROL BOX BASE
84 4110.967 SUPPORT PG PHOTOCELL
85 4110.155 EDGE LINER
86 4111.033 TERMINAL BOARD
87 4160.639 POP RIVET WITH TERMIN. 4 WAY
88 4032.450 PLASTIC PIN
89 4110.971 HT CABLE
90 4031.035 TRANSFORMER
92 4111.032 RELAY FINDER
93 4111.030 TRANSFORMER SUPPORT
94 4111.153 POWER CORD
100 4111.081 COUPLING SIMEL
101 4032.432 PUMP DANFOSS
102 4161.501 NUT FOR BICONE 1/8"
103 4161.140 CONNECTION 90°1/8"
104 4032.433 OIL SUPPLY PIPE
105 4031.160 CONN. STRAIGHT 1/4"
106 4032.463 MOTOR FLANGE SUPPORT
109 4110.970 PHOTOCELL CONN. CABLE
110 4110.966 PHOTOCELL
112 4111.076 PHOTOCELL BLOCK BRACKET
113 4032.406 PHOTOCELL SUPPORT
114 4032.405 BURNER FLANGE
115 4032.403 NOZZLE SUPPORT
116 4031.030 NOZZLE 1,50 GPH 80°S
117 4032.454 NUT M6
118 4032.453 AIR RGULATION FLAP
119 4032.570 TURBO DISC
121 4031.045 FAN THERMOSTAT
122 4031.047 LIMIT THERMOSTAT
125 4031.095 ELECTRODE
126 4032.110 POWER CORD SOLENOID SPOOL
127 4102.535 SOLENOID SPOOL 230V/50Hz
128 4160.968 CONN. STRAIGHT 1/8"



A megfelelő hőlégfúvó kiválasztása:

A fogyasztói szerződés keretében vásárolt termékre a 151/2003. (IX. 22.) Kormányrendelet alapján Magyarország területén a jótállás időtartama:

  • 10 000 forintot elérő, de 250 000 forintot meg nem haladó eladási ár esetén két év,
  • 250 000 forint eladási ár felett három év.

Az általános szerződési feltételeinket IDE KATTINTVA olvashatja el.

Kérdés esetén, keresse ügyfélszolgálatunkat.

Tulajdonságok
Nettó súly (kg)
101.00
Bruttó súly (kg)
123.00
Gyári cikkszám
4013.215
Légszállítás (m3/h)
3300
Termék méretek (HxSZxM)(mm)
1600x700x1150
Fűtőteljesítmény (kW)
85
Üzemanyagtank (liter)
105
Csomagolás
egyedi raklap
IP védelem
IP44
VTSZ
73229000
Csomagolási méret (HxSZxM)(mm)
1600x750x1180
Feszültség (V/Hz)
230/50 V/Hz
Áramfelvétel (A)
4,6
Elektromos motor telj. (W)
1060
Légfúvó nyílás átmérő (mm)
400
Működési idő 1 tank üzemanyag
13
Termosztátos szabályozás
rendelhető
Üzemanyag-fogyasztás (liter/h)
8,1
Márka
Master
Füstcső átmérő (mm)
150

Mások ezeket a termékeket is megvették

EUROKOMAX vízszintes talajfúrógép tartozékokkal (3 fázis-400V, elektromos) 55-930148
EUROKOMAX vízszintes talajfúrógép tartozékokkal (3 fázis-400V, elektromos)
Cikkszám
55-930148
Raktáron
Nettó ár:
668 504 Ft
Bruttó ár:
849 000 Ft
db
Fúrószár vízszintes talajfúróhoz EUROKOMAX (250mmx1m) 55-930155
Fúrószár vízszintes talajfúróhoz EUROKOMAX (250mmx1m)
Cikkszám
55-930155
Raktáron
Nettó ár:
61 409 Ft
Bruttó ár:
77 990 Ft
db
Fúrófej, kétélű kezdőtag vízszintes talajfúróhoz EUROKOMAX (250mm) 55-930158
Fúrófej, kétélű kezdőtag vízszintes talajfúróhoz EUROKOMAX (250mm)
Cikkszám
55-930158
Raktáron
Nettó ár:
28 339 Ft
Bruttó ár:
35 990 Ft
db

Helyettesítő termékek

MASTER BV290 hőlégfúvó (kéményes, gázolajos 85kW) BV290
MASTER BV290 hőlégfúvó (kéményes, gázolajos 85kW)
Cikkszám
BV290
Raktáron
Nettó ár:
865 354 Ft
Bruttó ár:
1 099 000 Ft
db
MASTER BV290 hőlégfúvó (kéményes, gázolajos 85kW) BV290
MASTER BV290 hőlégfúvó (kéményes, gázolajos 85kW)
Cikkszám
BV290
Raktáron
Nettó ár:
865 354 Ft
Bruttó ár:
1 099 000 Ft
db

Opciós termékek

Szobatermosztát hőlégfúvóhoz MASTER TH5 (3m) 4150.109
Szobatermosztát hőlégfúvóhoz MASTER TH5 (3m)
Cikkszám
4150.109
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
19 677 Ft
Bruttó ár:
24 990 Ft
db
Szobatermosztát hőlégfúvóhoz MASTER TH5 (10m) 4150.112
Szobatermosztát hőlégfúvóhoz MASTER TH5 (10m)
Cikkszám
4150.112
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
30 701 Ft
Bruttó ár:
38 990 Ft
db
Digitális termosztát MASTER THD (5m, 230V/50-60 Hz) 4150.133
Digitális termosztát MASTER THD (5m, 230V/50-60 Hz)
Cikkszám
4150.133
Raktáron
Nettó ár:
84 173 Ft
Bruttó ár:
106 900 Ft
db
Digitális termosztát MASTER THD (10m, 230V/50-60Hz) 4150.134
Digitális termosztát MASTER THD (10m, 230V/50-60Hz)
Cikkszám
4150.134
Raktáron
Nettó ár:
90 472 Ft
Bruttó ár:
114 900 Ft
db
20 vélemény alapján Eurokomax Kft.
100%
a vásárlók közül ajánlaná ismerősének ezt a boltot.
Elégedettség a bolttal:
Szállítási idő:
A bolt áttekinthetősége:
Ügyfélszolgálat/kommunikáció:
A(z) Eurokomax Kft. részt vesz az Árukereső Megbízható Bolt Programjában.
© 2004-2025 arukereso.hu Minden jog fenntartva.
