MASTER B70 hőlégfúvó (gázolajos 20kW)

Cikkszám
B70
Raktáron
Nettó ár:
157 402 Ft
Bruttó ár:
199 901 Ft
db

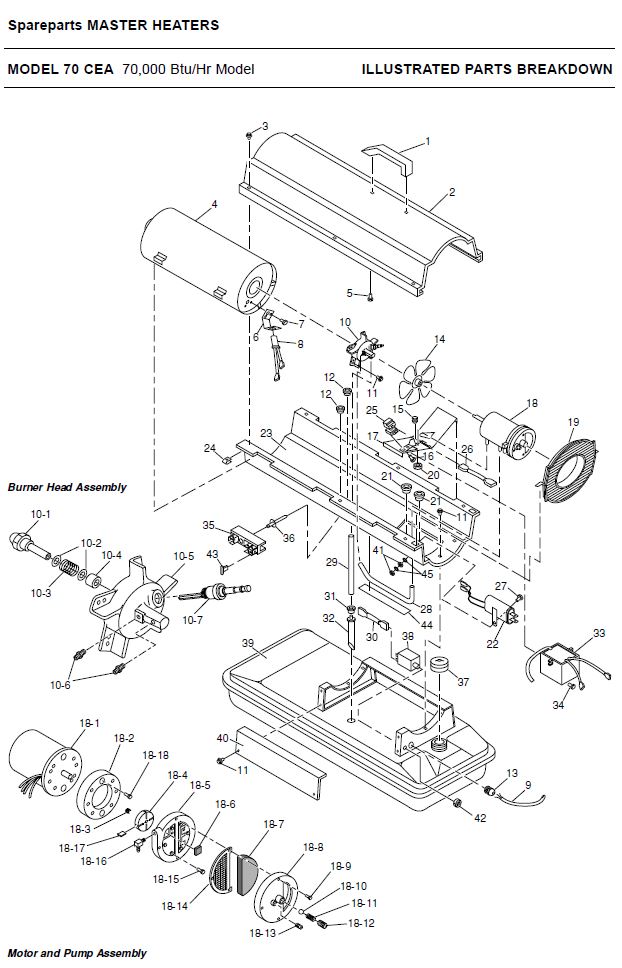

Szám Cikkszám Cikknév
1 4103.784 Handle
2 4103.842 Upper Shell
3 4109.590 Screw/Lockwasher, 1/2"
4 4104.090 Combustion Chamber
5 4108.510 Screw, #10-16 x 3/4"
6 4103.537 Photocell Bracket
7 4103.529 Screw, #6-32 x 3/8"
8 4103.552 Photocell Assembly
9 S/R Power Cord
10 ** Burner Head Assembly
10-1 4103.486 Nozzle
10-2 4100.525 Nozzle Seal Washer
10-3 4100.533 Nozzle Seal Spring
10-4 4101.622 Nozzle Seal Sleeve
10-5 4109.351 Burner Head Body
10-6 4106.071 Barb Fitting
10-7 4101.846 Spark Plug
11 4110.124 Scew/Lockwasher, 1/2"
12 4101.151 Bushing
13 4150.528 Strain Relief Bushing
14 4103.651 Fan
15 4150.553 Rubber Bumper
16 4108.530 Screw, #8-32 x 1/4"
17 4109.560 Motor Bracket
18 ** Motor and Pump Assembly
18-1 4109.780 Motor with capacitor
18-2 4101.317 Pump Body
18-3 4108.635 Insert
18-4 4108.627 Rotor
18-5 4109.724 End Pump Cover
18-6 4109.736 Lint Filter
18-7 4109.690 Intake Filter
18-8 4109.674 End Cover
18-9 4108.528 Screw, #10-32 x 1"
18-10 4108.379 Steel Ball (1/4" Dia.)
18-11 4102.141 Pressure Relief Spring
18-12 4102.133 Adjusting Screw
18-13 4102.125 Plug
18-14 4109.708 Output Filter
18-15 4108.528 Screw, #10-32 x 1"
18-16 4101.156 Elbow, 90° (Barb Fitting)
18-17 4101.200 Blade
18-18 4108.588 Screw, #10-32 x 5/8"
18-19 4101.851 Capacitor
19 4103.685 Fan Guard
20 4108.486 Hex locknut
21 4101.152 Bushing (wires)
22 4105.287 Power Line RFI Filter
23 4105.195 Lower Shell
24 4104.170 Clip Nut
25 4106.179 Relay, (motor start)
26 S/R Wire Assembly (red)
27 4109.580 Screw, #10-32 x 3/4"
28 4109.633 Rubber Airline
29 4105.508 Fuel Line
30 N/A Wire Assembly (red)
31 4100.541 Rubber Bushing
32 4103.875 Fuel Filter Assembly
33 4106.095 Electronic Ignitor
34 4108.510 Screw, #10-16 x 3/4"
35 4106.110 Terminal Board
36 N/A Rivet
37 4103.891 Fuel Tank Cap
38 4104.196 Flame-Out Control
39 4100.643 Fuel Tank
40 4104.183 Side Cover
41 4100.673 Nut, #10-32
42 4109.592 Hex Nut
43 N/A Terminal Board Tab Cap
44 S/R Vinyl Foam Gasket
45 4100.527 Lock Washer, #10
46 S/R Bushing
NotShown 4105.292 Filler Neck Screen
NotShown 4110.138 Tradename Decal
NotShown S/R Combustion Chamber Ground Wire
NotShown S/R Decal Package

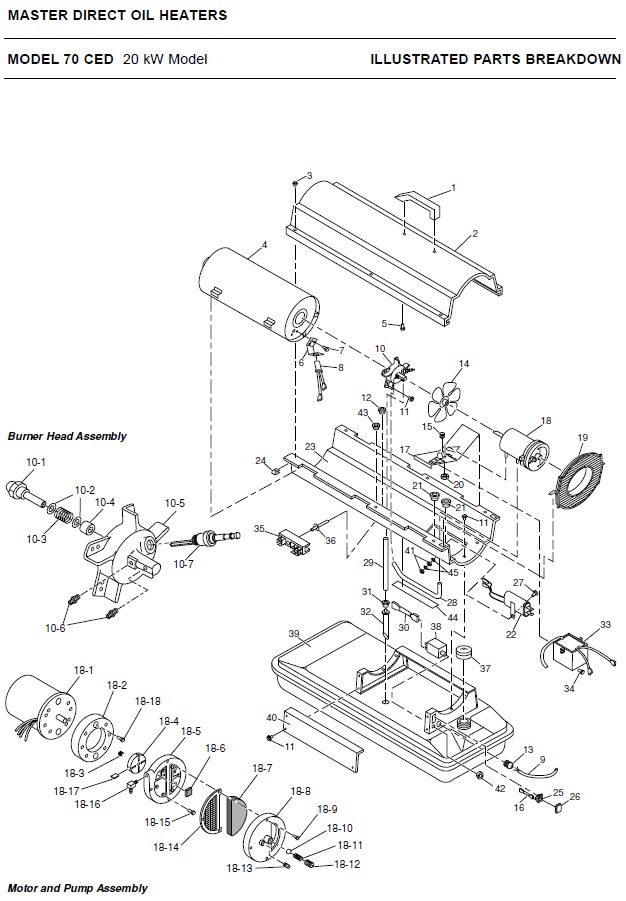

Szám Cikkszám Cikknév
1 4103.784 Handle
2 4103.842 Upper Shell
3 4109.590 Screw/Lockwasher, 1/2"
4 4104.090 Combustion Chamber
5 4108.510 Screw, #10-16 x 3/4"
6 4103.537 Photocell Bracket
7 4103.529 Screw, #6-32 x 3/8"
8 4103.552 Photocell Assembly
9 S/R Power Cord
10 ** Burner Head Assembly
10-1 4103.486 Nozzle
10-2 4100.525 Nozzle Seal Washer
10-3 4100.533 Nozzle Seal Spring
10-4 4101.622 Nozzle Seal Sleeve
10-5 4109.351 Burner Head Body
10-6 4106.071 Barb Fitting
10-7 4101.846 Spark Plug
11 4110.124 Screw/Lockwasher, 1/2"
12 4101.151 Bushing
13 4150.528 Strain Relief Bushing
14 4103.651 Fan
15 4150.553 Rubber Bumper
16 S/R Wire Assembly (black)
17 4109.560 Motor Bracket
18 ** Motor and Pump Assembly
18-1 4109.780 Motor with capacitor
18-2 4101.317 Pump Body
18-3 4108.635 Insert
18-4 4108.627 Rotor
18-5 4109.724 End Pump Cover
18-6 4109.736 Lint Filter
18-7 4109.690 Intake Filter
18-8 4109.674 End Cover
18-9 4108.528 Screw, #10-32 x 1"
18-10 4108.379 Steel Ball (1/4" Dia.)
18-11 4102.141 Pressure Relief Spring
18-12 4102.133 Adjusting Screw
18-13 4102.125 Plug
18-14 4109.708 Output Filter
18-15 4108.528 Screw, #10-32 x 1"
18-16 4101.156 Elbow, 90° (Barb Fitting)
18-17 4101.200 Blade
18-18 4108.588 Screw, #10-32 x 3/4"
18-19 4101.851 Capacitor
19 4103.685 Fan Guard
20 4108.486 Hex locknut
21 4101.152 Bushing (wires)
22 4105.287 Power Line RFI Filter
23 4105.195 Lower Shell
24 4104.170 Clip Nut
25 4106.179 ON/OFF Switch
26 4104.336 Switch Cover
27 4109.580 Screw, #10-32 x 3/4"
28 4109.633 Rubber Airline
29 4105.508 Fuel Line
30 N/A Wire Assembly (red)
31 4100.541 Rubber Bushing
32 4103.875 Fuel Filter Assembly
33 4106.095 Electronic Ignitor
34 4108.510 Screw, #10-16 x 3/4"
35 4106.110 Terminal Board
36 N/A Rivet
37 4103.891 Fuel Tank Cap
38 4104.196 Flame-Out Control
39 4100.643 Fuel Tank
40 4104.183 Side Cover
41 4100.673 Nut, #10-32
42 4109.592 Hex Nut
43 N/A Terminal Board Tab Cap
44 S/R Vinyl Foam Gasket
45 4100.527 Lock Washer, #10
46 S/R Bushing
NotShown 4105.292 Filler Neck Screen
NotShown 4110.138 Tradename Decal
NotShown S/R Combustion Chamber Ground Wire
NotShown S/R Decal Package

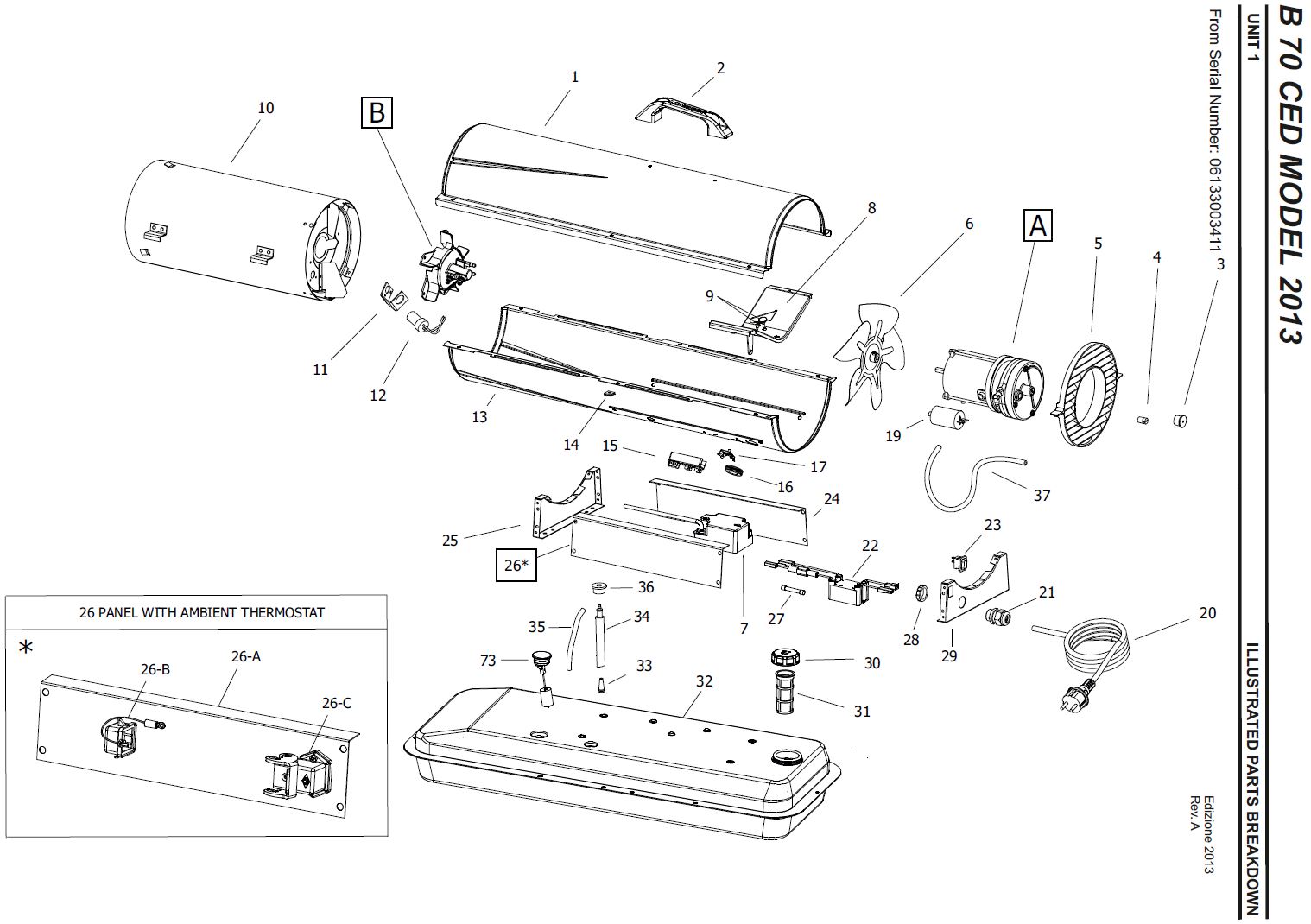

Szám Cikkszám Cikknév                                 Rev. A 2013
1 4109.808 UPPER SHELL
2 4162.934 PLASTIC HANDLE
3 4100.666 COVER CAP
4 4102.125 PRESSURE GAUGE CAP
5 4109.812 FAN GUARD
6 4100.662 FAN
7 4111.885 ELECTRONIC IGNITOR
8 4110.187 MOTOR BRACKET
9 4150.553 BUMPER
10 4104.090 WASHER
11 4100.658 PHOTOCELL BRACKET
12 4110.564 PHOTOCELL ASSEMBLY
13 4109.809 LOWER SHELL
14 4104.170 CLIP NUT
15 4106.110 TERMINAL BOARD
16 4160.646 CABLE PROTECTION
17 4160.639 RIVET POP
19 4111.854 CAPACITOR 7,5UF
19 4110.293 CAPACITOR 5UF
20 4110.451 POWER CORD SCHUKO
20-A 4111.811 POWER CORD NEW ZEALAND
20-B 4110.464 POWER CORD UK
21 4150.528 STRAIN RELIEF
22 4104.193 FLAME-OUT CONTROL
23 4106.179 ON/OFF SWITCH
24 4110.560 RIGHT PANEL
25 4110.113 FRONT FRAME BRACKET
26-A 4106.212 LEFT PANEL FOR AMBIENT THERMOSTAT
26-B 4162.467 CAP FOR THERMOSTAT SOCKET
26-C 4111.119 THERMOSTAT SOCKET
27 4101.864 FUSE
28 4100.656 LOCKNUT
29 4110.114 REAR FRAME BRACKET
30 4260.007 FUEL TANK CAP
31 4290.026 FUEL TANK FILTER
32 4110.895 FUEL TANK
33 4110.356 FUEL FILTER
34 4110.391 FUEL LINE
35 4110.032 FUEL LINE
36 4100.541 RUBBER BUSHING
37 4104.147 AIR LINE
38 4110.480 MOTOR 1/8 HP
39 4108.635 INSERT
40 4101.317 PUMP BODY
41 4108.588 PUMP BODY SCREW
42 4101.200 BLADE
43 4100.661 BARB ELBOW
44 4108.627 ROTOR
45 4109.724 PUMP END COVER
46 4109.716 LINT FILTER
47 4108.528 SCREW/LOCKWASHER 4,8x25
48 4109.708 OUTPUT FILTER
49 4109.690 INTAKE FILTER
50 4109.674 END COVER
51 4108.379 STEEL BALL
52 4102.141 PRESSURE RELIEF SPRING
53 4102.133 ADJUSTING SCREW
54 4103.486 NOZZLE
55 4100.525 WASHER
56 4100.533 NOZZLE SEAL SPRING
57 4101.622 NOZZLE SEAL SLEEVE
58 4110.399 BURNER HEAD BODY
59 4104.118 BARB FITTING
60 4110.337 BIFILAR ELECTRODE
61 4111.831 HT CABLE
62 4110.394 WASHER
63 4110.393 WASHER
64 4110.363 SCREW
73 4260.006 FUEL GAUGE
WheelKit 4103.925 WHEEL KIT HD B35/70

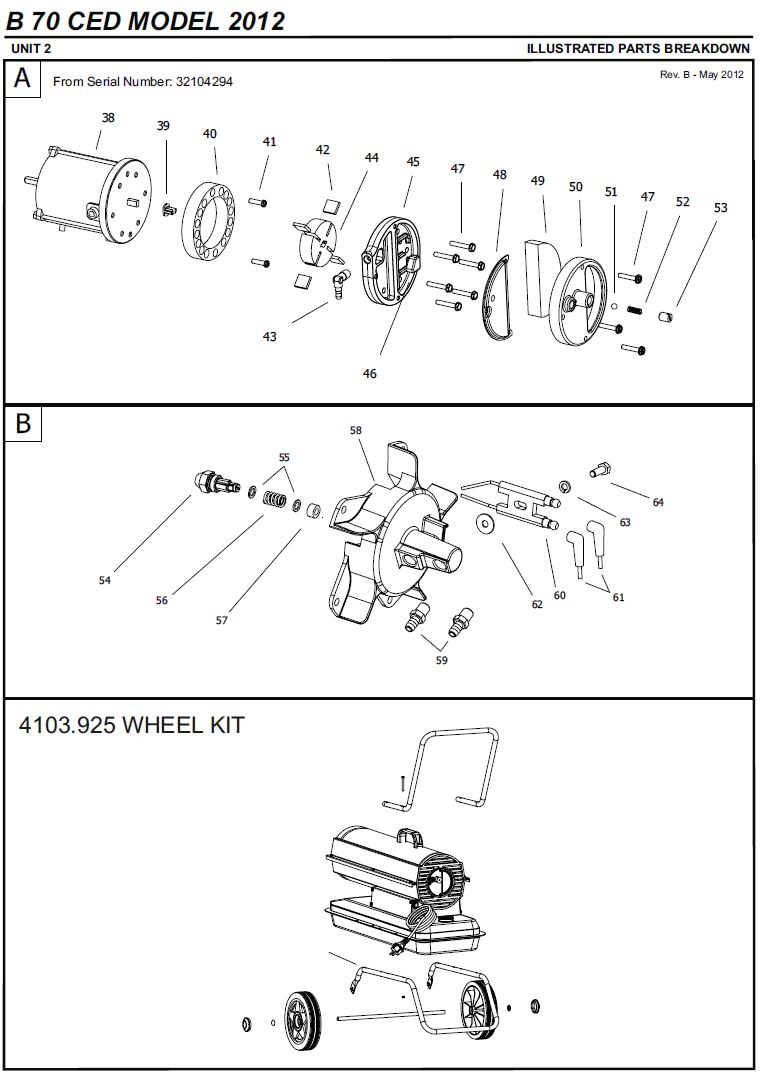

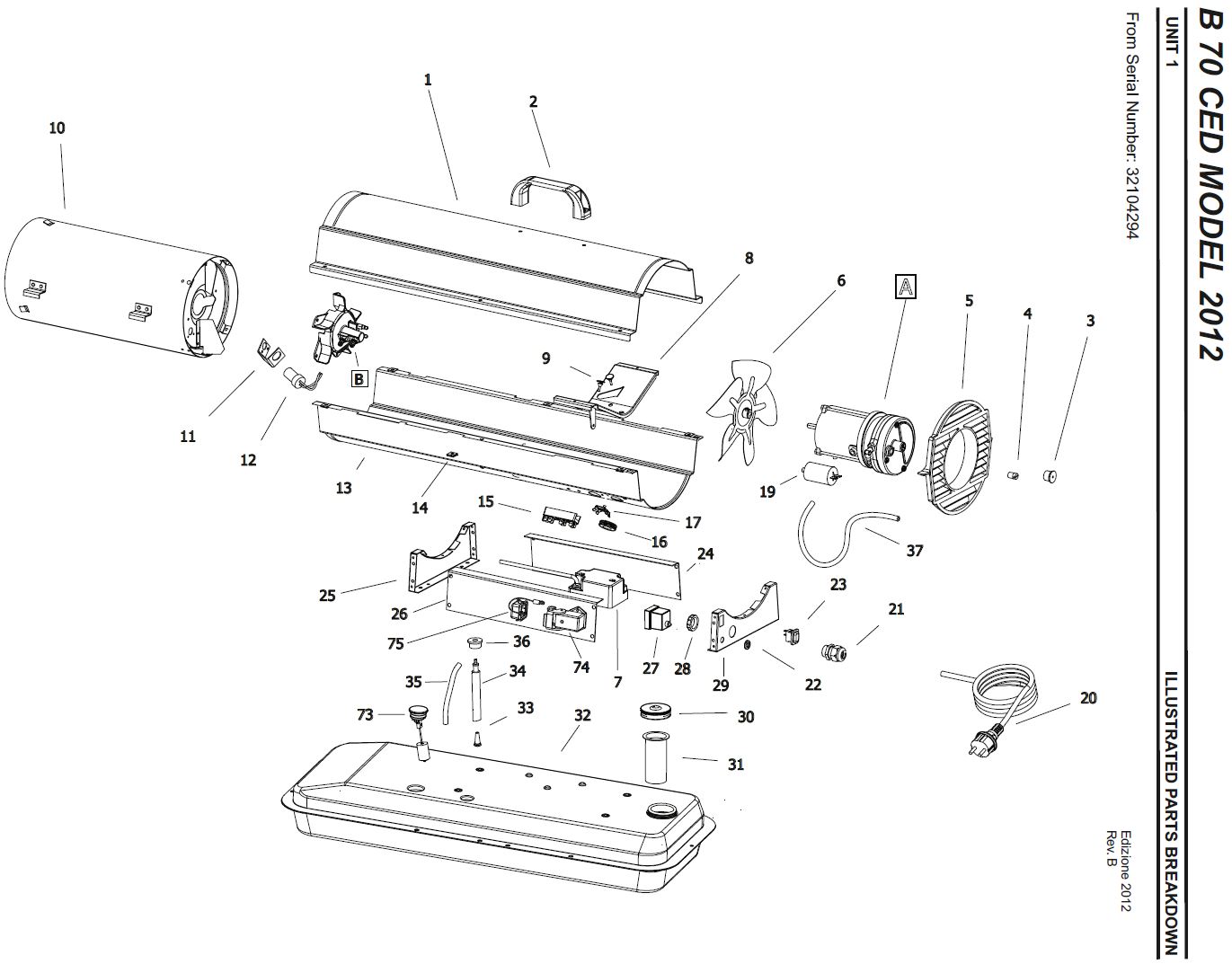

Szám Cikkszám Cikknév                                 Rev. B 2012
1 4110.121 UPPER SHELL
2 4162.893 PLASTIC HANDLE
3 4100.666 COVER CAP
4 4102.125 PRESSURE GAUGE CAP
5 4103.685 FAN GUARD
6 4100.662 FAN
7 4111.885 ELECTRONIC IGNITOR
8 4110.187 MOTOR BRACKET
9 4150.553 BUMPER
10 4104.090 WASHER
11 4100.658 PHOTOCELL BRACKET
12 4110.564 PHOTOCELL ASSEMBLY
13 4110.535 LOWER SHELL
14 4104.170 CLIP NUT
15 4106.110 TERMINAL BOARD
16 4160.646 CABLE PROTECTION
17 4160.639 RIVET POP
19 4110.293 CAPACITOR
20 4110.451 POWER CORD
21 4150.528 STRAIN RELIEF
22 4109.592 NUT
23 4106.179 ON/OFF SWITCH
24 4110.560 RIGHT PANEL
25 4110.113 FRONT FRAME BRACKET
26 4110.560 LEFT PANEL
26 4110.794 LEFT PANEL FROM SERIAL NUMBER 32117091
27 4104.196 FLAME-OUT CONTROL
28 4100.656 LOCKNUT
29 4110.514 REAR FRAME BRACKET
30 4103.891 FUEL TANK CAP
31 4105.292 FUEL TANK FILTER
32 4110.384 FUEL TANK
33 4110.356 FUEL FILTER
34 4110.391 FUEL LINE
35 4110.032 FUEL LINE
36 4100.541 RUBBER BUSHING
37 4104.147 AIR LINE
38 4110.480 MOTOR 1/8 HP
39 4108.635 INSERT
40 4101.317 PUMP BODY
41 4108.588 PUMP BODY SCREW
42 4101.200 BLADE
43 4100.661 BARB ELBOW
44 4108.627 ROTOR
45 4109.724 PUMP END COVER
46 4109.716 LINT FILTER
47 4108.528 SCREW/LOCKWASHER 4,8x25
48 4109.708 OUTPUT FILTER
49 4109.690 INTAKE FILTER
50 4109.674 END COVER
51 4108.379 STEEL BALL
52 4102.141 PRESSURE RELIEF SPRING
53 4102.133 ADJUSTING SCREW
54 4103.486 NOZZLE
55 4100.525 WASHER
56 4100.533 NOZZLE SEAL SPRING
57 4101.622 NOZZLE SEAL SLEEVE
58 4110.399 BURNER HEAD BODY
59 4104.118 BARB FITTING
60 4110.337 BIFILAR ELECTRODE
61 4111.831 HT CABLE
62 4110.394 WASHER
63 4110.393 WASHER
64 4110.363 SCREW
73 4260.006 FUEL GAUGE
74 4111.119 THERMOSTAT SOCKET FROM SERIAL NUMBER 32117091
75 4162.467 CAP FOR THERMOSTAT SOCKET FROM SERIAL NUMBER 32117091
WheelKit 4103.925 WHEEL KIT HD B35/70

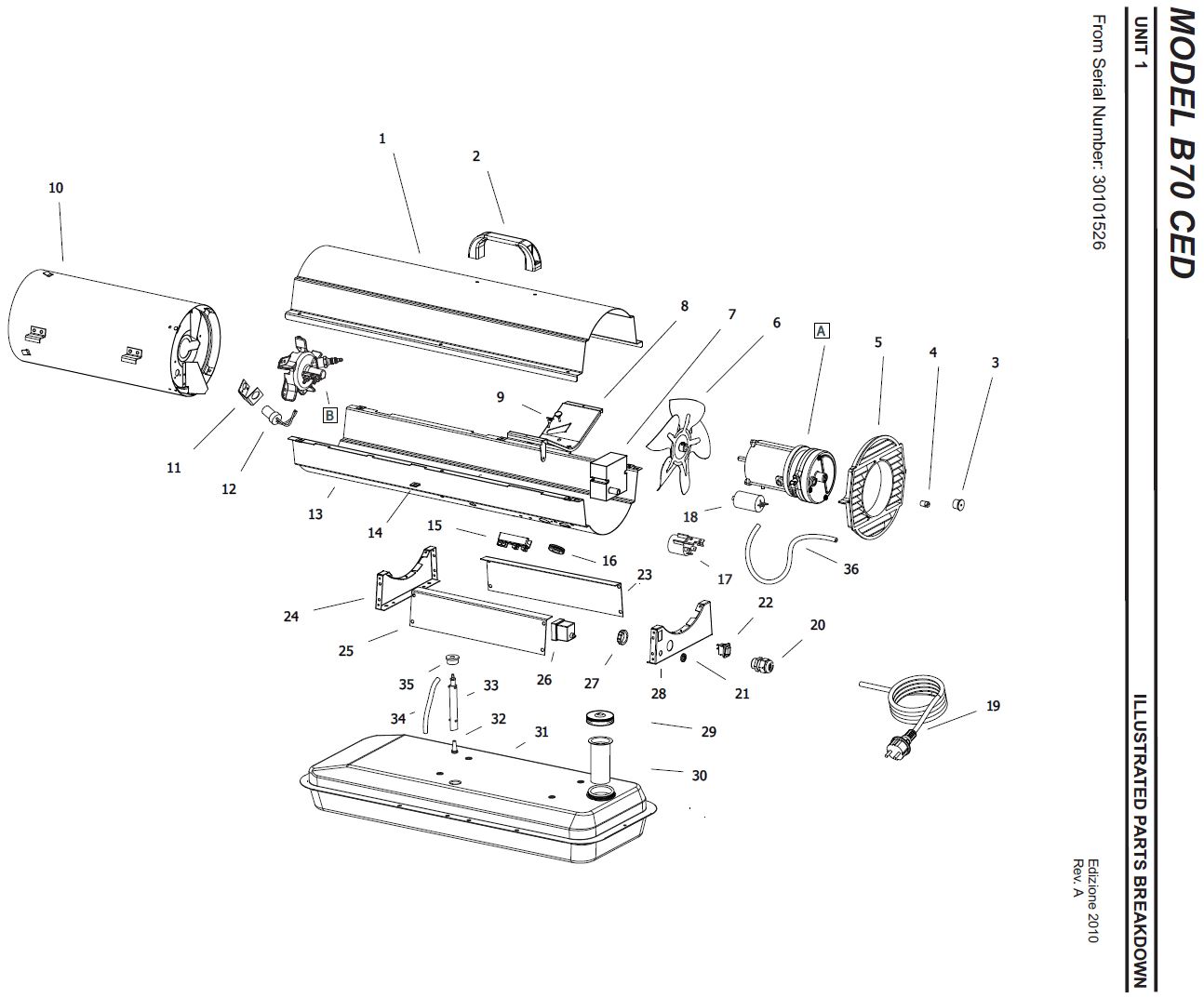

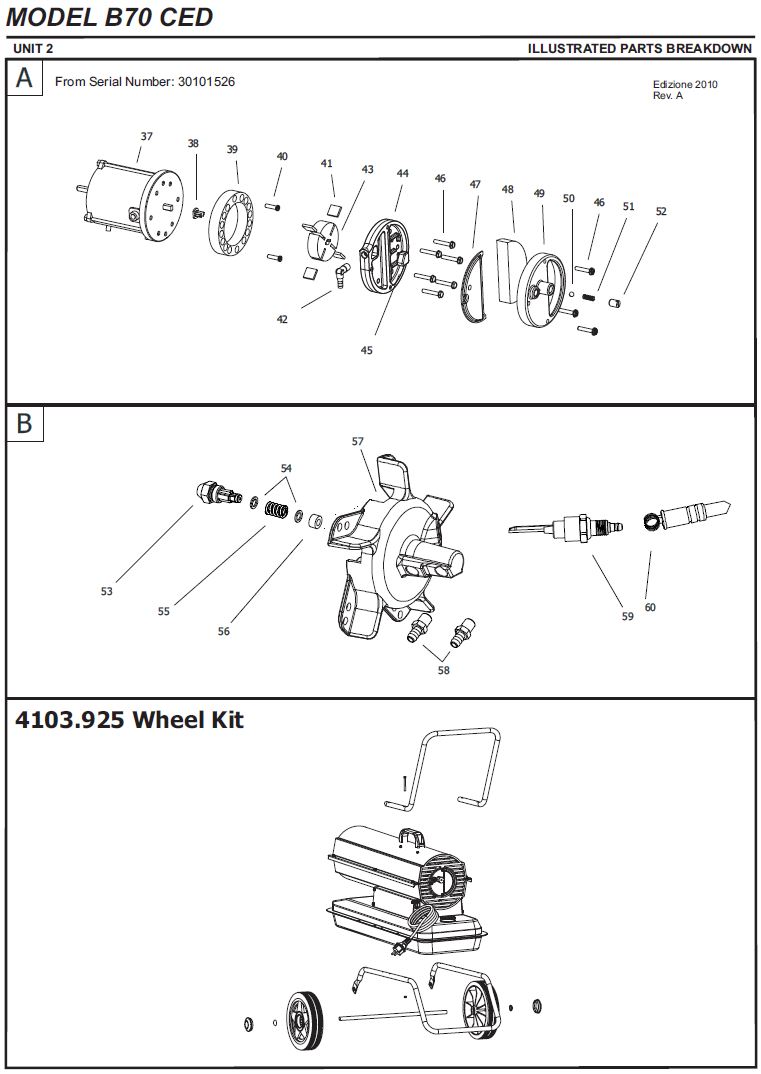

Szám Cikkszám Cikknév                                 Rev. A 2010
1 S/R UPPER SHELL
2 4160.715 PLASTIC HANDLE
3 4100.666 COVER CAP
4 4102.125 PRESSURE GAUGE CAP
5 4103.685 FAN GUARD
6 4100.662 FAN
7 4110.453 ELECTRONIC IGNITOR
8 4110.187 MOTOR BRACKET
9 4150.553 BUMPER
10 4104.090 WASHER
11 4100.658 PHOTOCELL BRACKET
12 4110.564 PHOTOCELL ASSEMBLY
13 S/R LOWER SHELL
14 4104.170 CLIP NUT
15 4106.110 TERMINAL BOARD
16 4160.646 CABLE PROTECTION
17 4100.528 POWER LINE RFI FILTER
18 4110.293 CAPACITOR
19 4110.486 POWER CORD
20 4150.528 STRAIN RELIEF
21 4109.592 NUT
22 4106.179 ON/OFF SWITCH
23 4110.560 RIGHT PANEL
24 4110.113 FRONT FRAME BRACKET
25 4110.560 LEFT PANEL
26 4104.196 FLAME-OUT CONTROL
27 4100.656 LOCKNUT
28 4110.514 REAR FRAME BRACKET
29 4103.891 FUEL TANK CAP
30 4105.292 FUEL TANK FILTER
31 4110.895 FUEL TANK
32 4110.356 FUEL FILTER
33 4110.391 FUEL LINE
34 4110.032 FUEL LINE
35 4100.541 RUBBER BUSHING
36 4104.147 AIR LINE
37 4110.480 MOTOR 1/8 HP
38 4108.635 INSERT
39 4101.317 PUMP BODY
40 4108.588 PUMP BODY SCREW
41 4101.200 BLADE
42 4100.661 BARB ELBOW
43 4108.627 ROTOR
44 4109.724 PUMP END COVER
45 4109.716 LINT FILTER
46 4108.528 SCREW/LOCKWASHER 4,8x25
47 4109.708 OUTPUT FILTER
48 4109.690 INTAKE FILTER
49 4109.674 END COVER
50 4108.379 STEEL BALL
51 4102.141 PRESSURE RELIEF SPRING
52 4102.133 ADJUSTING SCREW
53 4103.486 NOZZLE
54 4100.525 WASHER
55 4100.533 NOZZLE SEAL SPRING
56 4101.622 NOZZLE SEAL SLEEVE
57 4109.351 BURNER HEAD BODY
58 4104.118 BARB FITTING
59 4101.846 SPARK PLUG
60 4110.194 HT CABLE
WheelKit 4103.925 WHEEL KIT HD B35/70

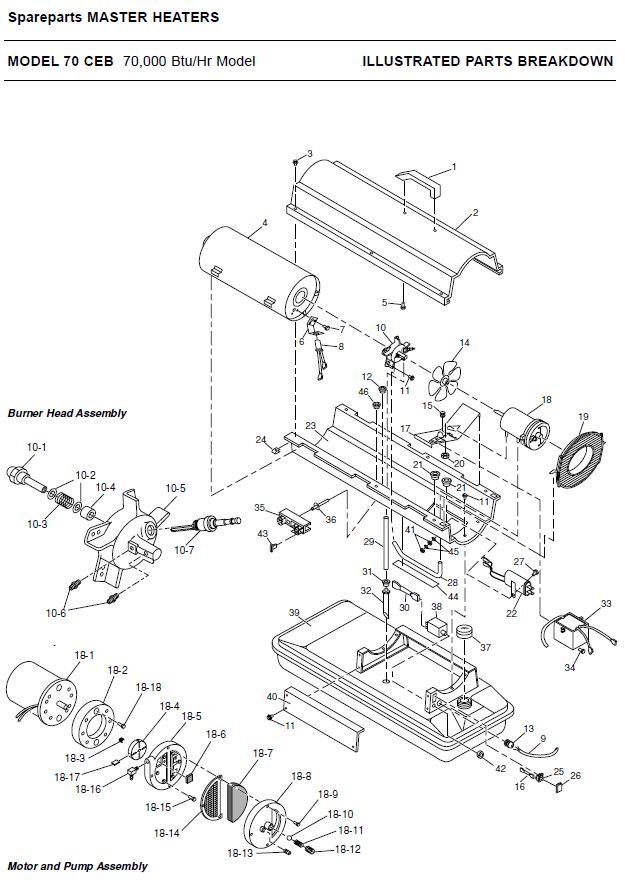

Szám Cikkszám Cikknév
1 4110.130 Handle
2 4110.535 Upper Shell
3 4109.590 Screw/Lockwasher, 1/2"
4 4104.090 Combustion Chamber
5 4160.602 Screw, #10-16 x 3/4"
6 4100.658 Photocell Bracket
7 4103.529 Screw, #6-32 x 3/8"
8 4110.564 Photocell Assembly
9 4110.563 Power Cord
10 ** Burner Head Assembly
10-1 4103.486 Nozzle
10-2 4100.525 Nozzle Seal Washer
10-3 4100.533 Nozzle Seal Spring
10-4 4101.622 Nozzle Seal Sleeve
10-5 4109.351 Burner Head Body
10-6 4106.071 Barb Fitting
10-7 4101.846 Spark Plug
11 4110.124 Screw/Lockwasher, 1/2"
12 4101.151 Bushing
13 4150.528 Strain Relief Bushing
14 4100.662 Fan
15 4150.553 Rubber Bumper
16 4110.165 Wire Assembly (black)
17 4110.187 Motor Bracket
18 ** Motor and Pump Assembly
18-1 4110.079 Motor with capacitor
18-2 4101.317 Pump Body
18-3 4108.635 Insert
18-4 4108.627 Rotor
18-5 4109.724 End Pump Cover
18-6 4109.716 Lint Filter
18-7 4109.690 Intake Filter
18-8 4109.674 End Cover
18-9 4108.528 Screw, #10-32 x 1"
18-10 4108.379 Steel Ball (1/4" Dia.)
18-11 4102.141 Pressure Relief Spring
18-12 4102.133 Adjusting Screw
18-13 4102.125 Plug
18-14 4109.708 Output Filter
18-15 4108.528 Screw, #10-32 x 1"
18-16 4101.156 Elbow, 90° (Barb Fitting)
18-17 4101.200 Blade
18-18 4108.588 Screw, #10-32 x 5/8"
19 4103.685 Fan Guard
20 4108.486 Hex locknut
21 4101.152 Bushing (wires)
22 4105.287 Power Line RFI Filter
23 4110.535 Lower Shell
24 4104.170 Clip Nut
25 4106.179 ON/OFF Switch
26 4104.336 Switch Cover
27 4110.133 Screw, #10-32 x 3/4"
28 4109.633 Rubber Airline
29 4109.567 Fuel Line
30 4110.195 Wire Assembly (red)
31 4100.541 Rubber Bushing
32 4103.875 Fuel Filter Assembly
33 4110.609 Electronic Ignitor
34 4108.510 Screw, #10-16 x 3/4"
35 4106.110 Terminal Board
36 4110.571 Rivet
37 4103.891 Fuel Tank Cap
38 4104.196 Flame-Out Control
39 4110.140 Fuel Tank
40 4110.560 Side Cover
41 4110.134 Nut, #10-32
42 4109.592 Hex Nut
43 4101.151 Bushing
44 4110.075 Vinyl Foam Gasket
45 4160.613 Lock Washer, #10
NotShown 4105.292 Filler Neck Screen



Szám Cikkszám Cikknév
1 4103.784 Handle
2 4103.842 Upper Shell
3 4108.510 Screw
4 4109.590 Screw/Lockwasher
5 4100.639 Combustion Chamber
6 4103.529 Screw, #6-32 x 3/8"
7 4100.657 Photocell Bracket
8 4103.590 Photocell Assembly
9 ** Burner Strap Assembly
9-1 4100.647 Nozzle Assembly
9-2 4110.132 Ignitor Kit w/ Ignition Control
9-3 4100.664 Nozzle Adapter
9-4 4100.653 Nozzle Adapter Bracket
9-5 4100.669 Screw, #6-32 x 7/8"
9-6 4100.660 Belleville Washer
10 4110.124 Screw/Lockwasher, 1/2"
11 4100.662 Fan
12 ** Motor and Pump Assembly
12-1 4110.079 Motor
12-2 4101.317 Pump Body
12-3 4108.635 Insert
12-4 4103.627 Rotor
12-5 4109.724 Pump End Cover
12-6 4109.716 Lint Filter
12-7 4109.690 Intake Filter
12-8 4109.674 End Cover
12-9 4108.528 Screw, #10-32 x 1"
12-10 4102.133 Adjusting Screw
12-11 4102.141 Pressure Relief Spring
12-12 4102.125 Plug
12-13 4108.379 Steel Ball, 1/4" Diameter
12-14 4109.708 Output Filter
12-15 4108.528 Screw #10-32 x 1"
12-16 4100.661 Nylon Elbow, 90
12-17 4101.200 Blade
12-18 4108.588 Screw, #10-32 x 5/8"
12-19 4100.666 Plastic Cap
13 4103.685 Fan Guard
14 S/R Power Cord
15 4150.528 Strain Relief Bushing
16 4108.486 Hex Lock Nut, 1/4-20
17 4110.124 Screw/Lockwasher, 1/2"
18 4150.553 Rubber Bumper
19 4100.635 Side Cover
20 4110.187 Motor Bracket
21 4101.151 Bushing
22 4104.170 Clip Nut
23 4101.152 Bushing
24 4110.124 Screw/Lockwasher, 1/2"
25 4100.674 Screw
26 4100.636 Lower Shell
27 4104.147 Rubber Airline
28 4109.567 Fuel Line
29 4103.875 Fuel Filter
30 4100.541 Rubber Bushing
31 4100.656 Nylon Locknut
32 4100.654 PCB Support
33 4110.142 Ignition Control w/ Ignitor
34 4103.891 Fuel Cap (Includes Gasket)
35 4110.140 Fuel Tank
36 4100.671 Shell Heat-Shield
37 4100.673 Nut
38 S/R Vinyl Foam Gasket
39 4100.527 Lockwasher
40 S/R Wire Assembly (Brown)
41 4100.667 ON/OFF Switch
42 4104.336 Switch Cover
43 S/R Wire Assembly (White)
NotShown 4105.292 Filler Neck Screen
NotShown 4110.049 Wire Tie
NotShown 4110.138 Tradename Decal
NotShown S/R Decal Package

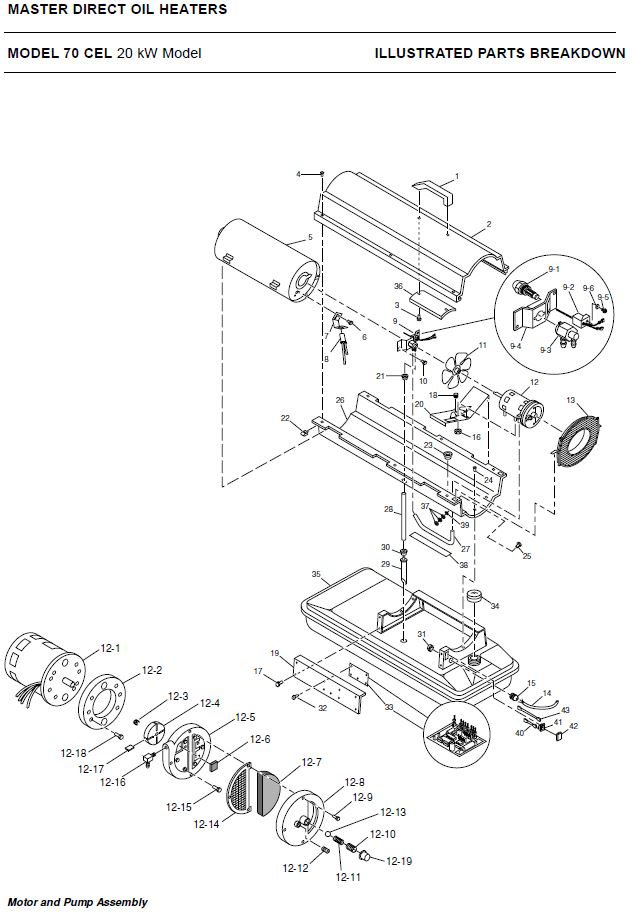

Szám Cikkszám Cikknév
1 4110.130 Handle
2 4110.064 Upper Shell
3 4160.602 Screw
4 4109.590 Screw/Lockwasher
5 4110.050 Combustion Chamber
6 4103.529 Screw, #6-32 x 3/8"
7 4100.658 Photocell Bracket
8 4103.590 Photocell Assembly
9 ** Burner Strap Assembly
9-1 4100.647 Nozzle Assembly
9-2 4110.132 Ignitor
9-3 4100.664 Nozzle Adapter
9-4 4100.653 Nozzle Adapter Bracket
9-5 4100.669 Screw, #6-32 x 7/8"
9-6 4100.660 Belleville Washer
10 4110.124 Screw/Lockwasher
11 4100.662 Fan
12 ** Motor and Pump Assembly
12-1 4110.079 Motor
12-2 4101.317 Pump Body
12-3 4108.635 Insert
12-4 4108.627 Rotor
12-5 4109.724 Pump End Cover
12-6 4109.716 Lint Filter
12-7 4109.690 Intake Filter
12-8 4108.528 End Cover
12-9 4108.528 Screw, #10-32 x 1"
12-10 4102.133 Adjusting Screw
12-11 4102.141 Pressure Relief Spring
12-12 4102.125 Plug
12-13 4108.379 Steel Ball, 1/4" Diameter
12-14 4109.708 Output Filter
12-15 4108.528 Screw #10-32 x 1"
12-16 4100.661 Nylon Elbow, 90
12-17 4101.200 Blade
12-18 4108.588 Screw, #10-32 x 5/8"
12-19 4100.666 Plastic Cap
13 4103.685 Fan Guard
14 4110.038 Power Cord
15 4150.528 Strain Relief Bushing
16 4108.486 Hex Lock Nut, 1/4-20
17 4110.124 Screw/Lockwasher, 1/2"
18 4150.553 Rubber Bumper
19 4100.635 Side Cover
20 4110.187 Motor Bracket
21 4101.151 Bushing
22 4104.170 Clip Nut
23 4101.152 Bushing
24 4110.124 Screw/Lockwasher, 1/2"
25 4110.133 Screw
26 4110.535 Lower Shell
27 4104.147 Rubber Airline
28 4109.567 Fuel Line
29 4103.875 Fuel Filter
30 4100.541 Rubber Bushing
31 4100.656 Nylon Locknut
32 4100.654 PCB Support
33 4110.142 PC Board
34 4103.891 Fuel Cap (Includes Gasket)
35 4110.140 Fuel Tank
36 4100.671 Shell Heat-Shield
37 4110.134 Nut
38 4110.075 Vinyl Foam Gasket
39 4160.613 Lockwasher
40 4110.036 Wire Assembly (Brown)
41 4100.667 ON/OFF Switch
42 4104.336 Switch Cover
43 4110.037 Wire Assembly (White)
NotShown 4105.292 Filler Neck Screen
NotShown 4161.829 PC Board Fuse



A megfelelő hőlégfúvó kiválasztása:

A fogyasztói szerződés keretében vásárolt termékre a 151/2003. (IX. 22.) Kormányrendelet alapján Magyarország területén a jótállás időtartama:

  • 10 000 forintot elérő, de 250 000 forintot meg nem haladó eladási ár esetén két év,
  • 250 000 forint eladási ár felett három év.

Az általános szerződési feltételeinket IDE KATTINTVA olvashatja el.

Kérdés esetén, keresse ügyfélszolgálatunkat.

Dantherm Group Sp. z o.o.

ul. Magazynowa 5a, Gądki, 62-023, Poland

sales.pl@danthermgroup.com

Tulajdonságok
Nettó súly (kg)
15.00
Bruttó súly (kg)
18.00
VTSZ
73229000
Márka
Master
Csomagolási méret (HxSZxM)(mm)
810x350x450
Feszültség (V/Hz)
230/50 V/Hz
Áramfelvétel (A)
0,8
Elektromos motor telj. (W)
180
Működési idő 1 tank üzemanyag
10
Termosztátos szabályozás
rendelhető
Üzemanyag-fogyasztás (liter/h)
1,9
Légszállítás (m3/h)
400
Üzemanyag
dízelgázolaj
Termék méretek (HxSZxM)(mm)
745x300x405
Fűtőteljesítmény (kW)
20
Üzemanyagtank (liter)
19
Csomagolás
kartondoboz
IP védelem
IP41
Max. Fűtőteljesítmény (kW)
20.0

Helyettesítő termékek

MASTER B100 hőlégfúvó (gázolajos 29kW) B100
MASTER B100 hőlégfúvó (gázolajos 29kW)
Cikkszám
B100
Raktáron
Nettó ár:
224 331 Ft
Bruttó ár:
284 900 Ft
db
MASTER B35 hőlégfúvó (gázolajos 10kW) B35
MASTER B35 hőlégfúvó (gázolajos 10kW)
Cikkszám
B35
Raktáron
Nettó ár:
149 528 Ft
Bruttó ár:
189 900 Ft
db

Opciós termékek

Szállítókocsi MASTER B35/70 4103.925
Szállítókocsi MASTER B35/70
Cikkszám
4103.925
Raktáron
Nettó ár:
29 126 Ft
Bruttó ár:
36 990 Ft
db
Szobatermosztát hőlégfúvóhoz MASTER TH5 (3m) 4150.109
Szobatermosztát hőlégfúvóhoz MASTER TH5 (3m)
Cikkszám
4150.109
Raktáron
Nettó ár:
22 039 Ft
Bruttó ár:
27 990 Ft
db
Szobatermosztát hőlégfúvóhoz MASTER TH5 (10m) 4150.112
Szobatermosztát hőlégfúvóhoz MASTER TH5 (10m)
Cikkszám
4150.112
Raktáron
Nettó ár:
33 850 Ft
Bruttó ár:
42 990 Ft
db
Digitális termosztát MASTER THD (5m, 230V/50-60 Hz) 4150.133
Digitális termosztát MASTER THD (5m, 230V/50-60 Hz)
Cikkszám
4150.133
Raktáron
Nettó ár:
91 260 Ft
Bruttó ár:
115 900 Ft
db
Digitális termosztát MASTER THD (10m, 230V/50-60Hz) 4150.134
Digitális termosztát MASTER THD (10m, 230V/50-60Hz)
Cikkszám
4150.134
Rendelésre - beérkezésről érdeklődjön
Nettó ár:
99 134 Ft
Bruttó ár:
125 900 Ft
db
Master szerviz csomag B70CED (2011-től) B65CEL (2014-től) 4519.013
Master szerviz csomag B70CED (2011-től) B65CEL (2014-től)
Cikkszám
4519.013
Raktáron
Nettó ár:
13 530 Ft
Bruttó ár:
17 183 Ft
db
